Brand: Panduit
|
SKU:
1009946
Panduit AFR4BCOS6 | Surface Raceway | UPC - 61305644455
Regular price
$100.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit AFR4BCOS6 | Surface Raceway | UPC - 61305644455
Regular price
$100.52
Unit price
Description
Description

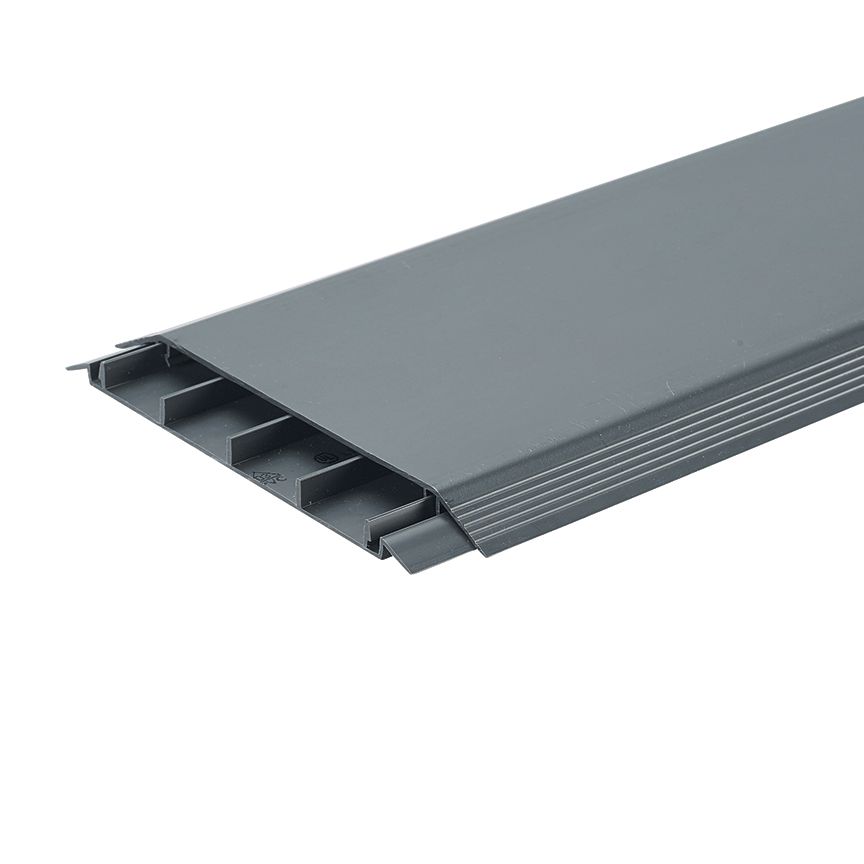

Panduit Pan-Way Base and Cover, 6 ft Length, 6.93 in Width, 1/2 in Height, 600 VAC, 4 Channels, Surface Mount, PVC, Office Slate
Features + Benefits
- 1 in bend radius control fittings - cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance, meets TIA/EIA standard and many warranty requirements
- Tamper resistant - difficult for untrained personnel to enter the raceway or remove faceplates, provides security for communication cabling and safety for power cabling
- Designer profile - aesthetically pleasing and matches a wide variety of decors with three standard color
- Non-metallic construction - lightweight raceway reduces installer fatigue, solid color throughout profile will not chip peel, rust, corrode, or scratch, easy to cut reducing the need for special cutting devices, easy to snap together base and cover, high impact resistance, durable
Panduit AFR4BCOS6 Key Specs
| Raceway Type | Power Rated |
| Material | PVC |
| Color | Office Slate |
| Overall Length (In.) | 72 |
| Overall Length (mm) | 1828.8 |
| Overall Width (In.) | 6.93 |
| Overall Width (mm) | 176.1 |
| Overall Height (In.) | 0.5 |
| Overall Height (mm) | 12.7 |
| Internal Area (in²) | 498.96 |
| Internal Area (mm²) | 322051.7 |
| For Use With | Panduit Pan-Net and Net-Key Communication Systems |
| Resistance Properties | Tamper-Resistant |
| Standards Met | UL94V-0 and E116129, UL-5A 600VAC CSA C22.2 No. 62.1-03 600V, RoHS compliant |
| Includes | 1 4-Channel Base, 1 4-Channel Cover, 8 HEX Washer Head Concrete Screws |
| Sub Brand | Pan-Way |
| Product Type | Surface Raceway |
| Application | Provides solutions for routing low voltage, fiber optic and/or power cabling over floors. |
Panduit AFR4BCOS6 Data Sheets
| Part Drawings | Above Floor Raceway 4-Channel Base And Cover 6-Ft Length | Download and View |
| Specification Sheets | Pan-Way Above Floor Raceway System | Download and View |
| Selection Guides | Audio Video Product Selection Guide | Download and View |
| Application Guides | Panduit HDBaseT Systems for Audio Video Applications | Download and View |
| Installation Documents | Above Floor Raceway 4-Channel Standard Product | Download and View |
| Installation Documents | Goulotte de câblage à quatre voies au-dessus du plancher - Produit standard | Download and View |
