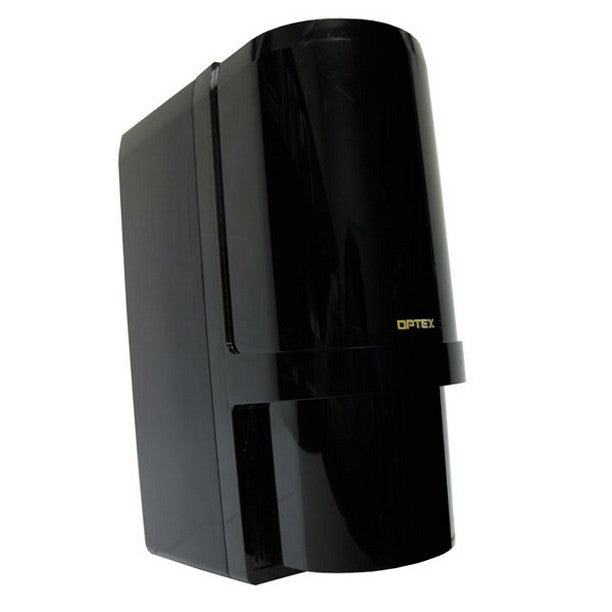

Optex AX-100TFR Wireless Ready 100' Photoelectric Detector

The AX-100TFR is a wireless ready 100’ Photoelectric Detector with a back box from Optex which is multi functional and compatible with many of the other wireless systems available. The AX-100TFR wireless detector comes with a long battery life of approximately five years, a low battery output w/ LED, a DQ circuit, as well as an IP55 rated exterior, a 100ft range, and a 265m max arrival distance. The AX-100TFR Photoelectric Detector also features an infrared beam interruption detection method, a form C alarm output, plus a wide operating temperature, and a compact size. This excellent wireless ready Photoelectric Detector has an IP55 rating, and is a cost saving device being an alternative to the more traditional type hardwired systems.

Features

100ft. (AX-100TFR) and 200ft. (AX-100TFR) Models

Significant cost saving alternative to traditional hardwired systems

Long battery life (Aprox. five years for the 100TFR and three years for the 200TFR)

Low battery output and LED (Separate wireless transmitter is required to monitor)

Works with most manufacturers wireless system

D.Q. circuit (environmental disqualification)

IP 55 rated

Specs

Manufacturer Optex Inc

Condition New

Model AX-100TFR

Range 30m ( 100ft )

Maximum arrival distance 265m (870ft)

Detection method Infrared beam interruption detection

Beam frequency selection 4 channel

Interruption period Variable between 50, 100, 250, 500 msec (4 steps)

Power Source 3.6 V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not included) Transmitter: 2 units Receiver: 2 units

Current draw 620 µA T: 300 µA + R: 320 µA (at 25°C, 3.6 VDC)

Alarm output Form C-Solid State Switch: 3.6 VDC, 0.01 A

Alarm period 2 sec (±1) nominal

D.Q. output Form A/B-Solid State Switch: 3.6 VDC, 0.01 A

Low battery output Form A/B-Solid State Switch: 3.6 VDC, 0.01 A (Transmitter & Receiver)

Operating temperature -20°C – +60°C (-4°F – +140°F)

Environmental humidity 95% (Max.)

Alignment angle ±90° Horizontal, ±5° Vertical

Mounting Indoor/Outdoor, Wall/Pole/Tower mounting

International protection IP55
