Brand: Panduit
|
SKU:
10044561
Panduit P18-P47-M | Loose Piece terminal | UPC - 07498381228
Regular price
$319.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P18-P47-M | Loose Piece terminal | UPC - 07498381228
Regular price
$319.14
Unit price
Description
Description

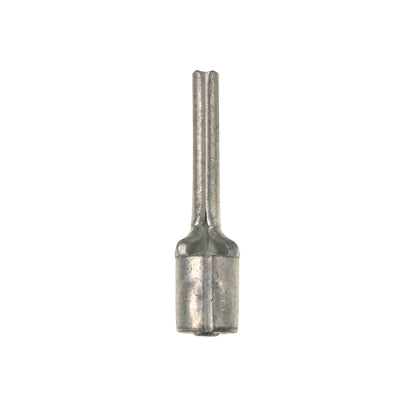

Panduit Pan-Term Pin Terminal, Metallic Loose Piece Non-Insulated Standard, Series: P Series, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 0.07 in Pin Dia, 0.49 in Pin Length, 2000 VAC, 0.3 in L Wire Strip, Copper, 302 deg F, 3/4 in Overall Length
- Solid pin designed to prevent damage to the wire from over tightening
- Resulting in a reliable electrical connection internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam barrel, standard barrel configuration
- Pin shape enclosure
- Tin-plated finish
Panduit Panduit P18-P47-M | Loose Piece terminal | UPC - 07498381228 Key Specs
| Pin Length (In.) | 0.49 |
| Pin Length (mm) | 12.4 |
| Insulation Material | Non-Insulated |
| Maximum Wire Size (AWG) | 22 - 18 AWG |
| Wire Strip Length (In.) | 0.30 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Brazed |
| Barrel Length (In.) | 0.26 |
| Barrel Length (mm) | 6.6 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19.1 |
| Sub Brand | Pan-Term |
| Packaging Type | Box |
Panduit Panduit P18-P47-M | Loose Piece terminal | UPC - 07498381228 Environmental Information
| Panduit's RoHS Statement | Download and View |
