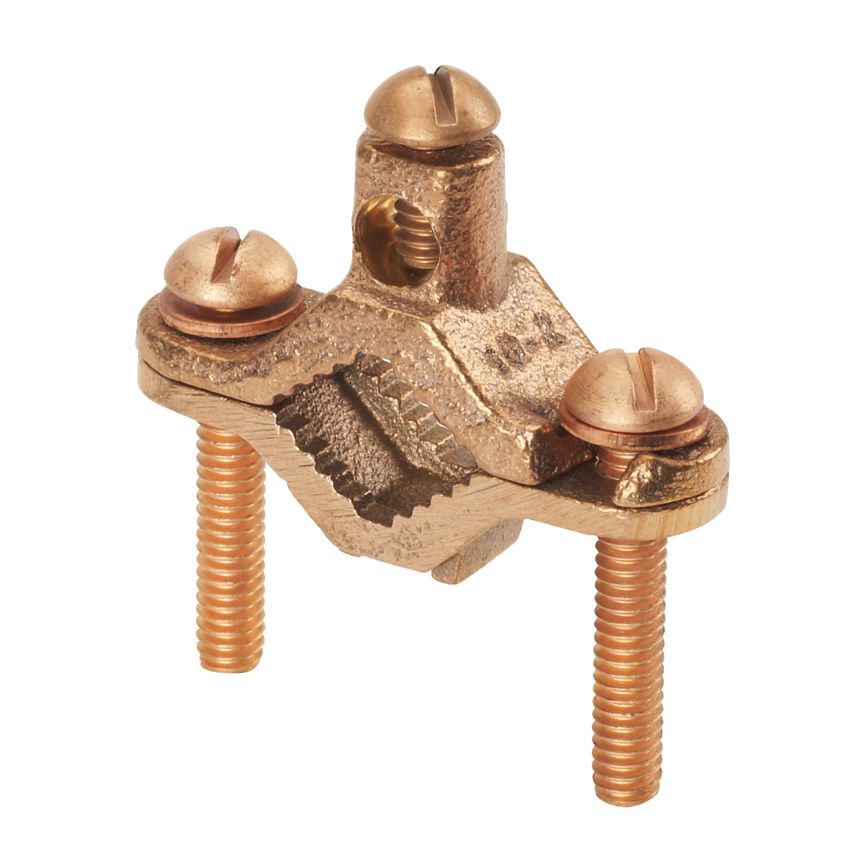

Panduit GPC2-2D-L | StructuredGround™ Bronze Direct Burial Grounding Clamp

The ability to provide a grounding system that is both reliable and economical is dependent upon finding the right connectors for the application. Panduit offers grounding connectors for a wide variety of conductor combinations and mounting configurations in high strength electrolytic copper, aluminum and bronze alloy materials. Globally distributed StructuredGround Mechanical Connectors provide fast and easy terminating of ground conductors to water pipe, ground rods, conduit, iron pipe and structural steel for highest reliability and lowest installed cost. With the addition of new ground clamps to the existing line of StructuredGround Mechanical Connectors, Panduit delivers the breadth of line to supply the right connector for each unique job, providing maximum reliability and safety for all critical electrical connections throughout your physical infrastructure.

Panduit StructuredGround Grounding Clamp, 1-1/4 to 2 in Pipe, Copper/Solid/Stranded Conductor, 10 to 2 AWG Conductor, Cast Bronze/Bronze Phosphorous Screw, Electrolytic

Ensure a reliable underground electrical connections with our bronze direct burial grounding clamp. Its corrosion-resistant bronze construction is ideal for various pipe sizes.

Bronze grounding clamp, Direct burial, #10 SOL - #2 STR AWG conductor size range, 1 1/4" - 2" (31.8mm - 50.8mm) iron pipe size, 2.22" (56.4mm) pipe clamp screw length.
