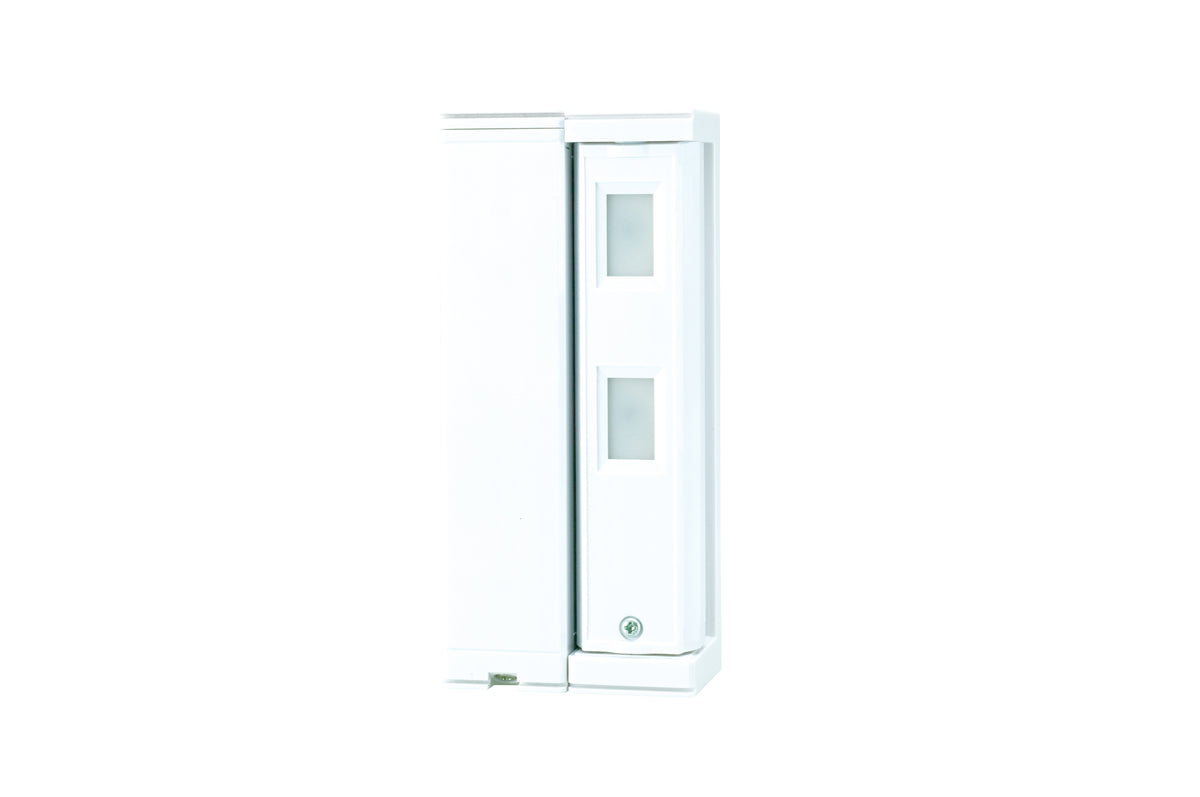

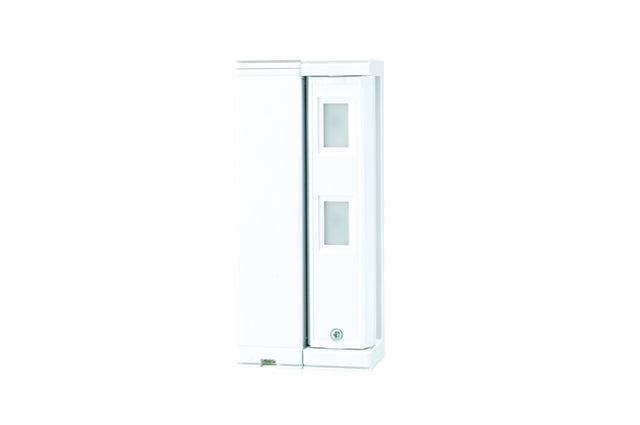

Optex FTN-RAM | Wireless-ready, Compact Outdoor Dual PIR Detector With Anti-Masking, 16.5' x 3.3' or 6.7' x 3.3'
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Optex FTN-RAM | Wireless-ready, Compact Outdoor Dual PIR Detector W...
Description
Description
The FTN-RAM is a compact wireless-ready 16.5' x 3.3'/6.7' x 3.3' PIR dual detector with anti-masking from Optex which is capable of providing high performance operation when setup to notify the owner when an unwanted object or intruder has entered the vicinity. The FTN-RAM PIR detector comes with a 190?horizontal flexibility, a 5m/2m narrow range, double conductive shielding, perfect pet immunity, as well as multi dimension analysis logic, and digital anti-masking. The FTN-RAM PIR detector also features battery operation, a passive infrared detection method, intelligent and logic functions, plus a wall mountable design, and an IP55 exterior rating. This professional PIR detector is ideal for locations where small animals may exist, and provides simple installation for fast and efficient operation.
The 'fit' FTN-RAM offers the perfect solution for those outdoor areas where false alarms caused by environmental disturbances and small animals are an issue. The wireless-ready, battery powered version allow installers to save valuable installation time and labor costs because no trenching, installing conduit or pulling wire is required. The FTN-RAM include Anti-Masking feature, a wireless-ready backbox to hold a third party's battery and wireless transmitter, and it comes with a built in bracket that enables horizontal rotation of 190 degrees. It's compact size and flexible detection area allow the sensor to 'fit' into a variety of both residential and commercial applications.
Optex - FTN-RAM - Features
- Long life battery (Not Included)
- Selectable 16.4ft. (5m) and 6.6ft. (2m) narrow detection ranges
- 190° horizontal rotation with built in mounting bracket
- Dual PIR detectors for enhanced pet tollerance
- Super Multi Dimension Analysis Logic analyzes every motion before signaling an alarm
- Double Conductive Shielding
- Intelligent 'AND' logic
- Complete battery operation
- Digital Anti-masking (RAM only)
- 5m/2m narrow range
- 190?horizontal flexibility
- Perfect pet immunity
- Super Multi Dimension Analysis Logic
- Intelligent AND logic
Specifications
Specifications
Optex - FTN-RAM - Specifications
| Manufacturer | Optex Inc |
|---|---|
| Condition | New |
| Model | FTN-RAM |
| Detection method | Passive infrared |
| PIRcoverage | 5 x m (16'5"x 3'3") |
| Detection length limit | 2 m, 5 m (6'7", 16'5") |
| Detectable speed | 0.3 - 1.5 m/s (1' - 4'11"/s) |
| Sensitivity | 2.0°C (at 0.6 m/s) (3.6°F (at 2'/s) |
| Operation voltage | 2.5 - 10 V DC |
| Power input | 3 - 9 V DC (Lithium or Alkaline Battery) |
| Current draw | 10?A(at stand-by) /3mA(max.)(at 3 V DC) |
| Alarm period | 2.0 ±1.0sec |
| Warm-up Period | Approx. 120 sec. (LED blinks) |
| Alarm output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| Trouble Output | N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A(max.) |
| Operation Temperature | -20 - +60°C (-4 - +140°F) |
| Environment Humidity | 95% max. |
| IP Rating | IP55 |
| Mounting | Wall (Outdoor, Indoor) |
| Mounting Height | 0.8 - 1.2 m (2'7" – 3'11") |
