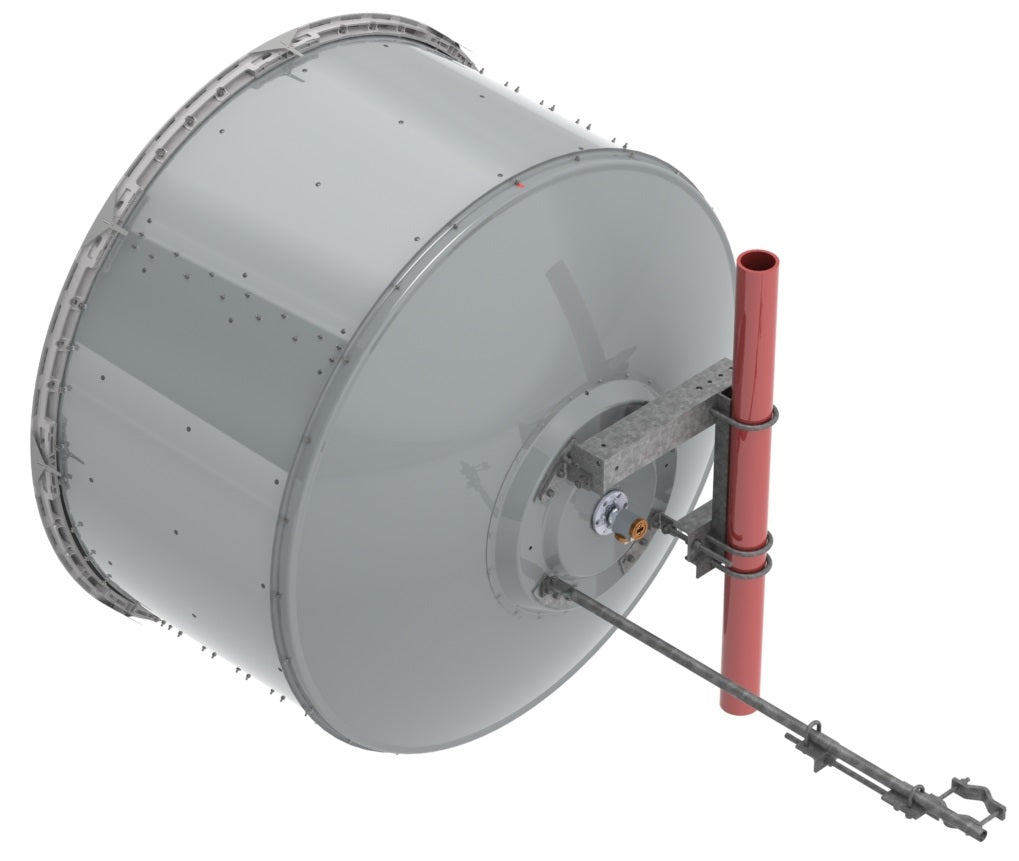

Commscope USX6-11W-6GR | 1.8m | 6ft Sentinel Ultra High Performance, Super High XPD Antenna, dual-polarized, 10.000 – 11.700 GHz, CPR090G flange
Specifications
Specifications
Antenna Dimensions and Mounting Information
| Click on image to enlarge. |
|---|
Wind Forces at Wind Velocity Survival Rating Image
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Microwave antenna |
|---|---|
| Product Brand | Sentinel |
General Specifications
| Antenna Type | USX - Sentinel Ultra High Performance, Super High XPD Antenna, dual-polarized |
|---|---|
| Polarization | Dual |
| Antenna Input | CPR90G |
| Antenna Color | Gray |
| Reflector Construction | One-piece reflector |
| Radome Color | Gray |
| Radome Material | Fabric |
| Side Struts, Included | 1 |
| Side Struts, Optional | 1 |
Dimensions
| Diameter, nominal | 1.8 m / 6 ft |
|---|
Electrical Specifications
| Operating Frequency Band | 10.000 – 11.700 GHz |
|---|---|
| Gain, Low Band | 42.9 dBi |
| Gain, Mid Band | 43.6 dBi |
| Gain, Top Band | 44.3 dBi |
| Boresite Cross Polarization Discrimination (XPD) | 40 dB |
| Front-to-Back Ratio | 85 dB |
| Beamwidth, Horizontal | 1.1 ° |
| Beamwidth, Vertical | 1.1 ° |
| Return Loss | 26 dB |
| VSWR | 1.1 |
| Radiation Pattern Envelope Reference (RPE) | 7375 / 7402 |
| Electrical Compliance | ACMA FX03_10a / ACMA FX03_11a / Canada SRSP 310.5 / Canada SRSP 310.7 Part A / Canada SRSP 310.7 Part B / ETSI 302 217 Class 4 / US FCC Part 101A |
| Cross Polarization Discrimination (XPD) Electrical Compliance | ETSI EN 302217 XPD Category 3 |
Mechanical Specifications
| Compatible Mounting Pipe Diameter | 115 mm–120 mm / 4.5 in–4.7 in |
|---|---|
| Fine Azimuth Adjustment Range | ±15° |
| Fine Elevation Adjustment Range | ±5° |
| Wind Speed, operational | 180 km/h / 111.847 mph |
| Wind Speed, survival | 200 km/h / 124.274 mph |
Wind Forces at Wind Velocity Survival Rating
| Axial Force (FA) | 6960 N / 1564.671 lbf |
|---|---|
| Angle ? for MT Max | -130 ° |
| Side Force (FS) | 2049 N / 460.634 lbf |
| Twisting Moment (MT) | 4948 N-m / 43793.490 in lb |
| Force on Inboard Strut Side | 6187 N / 1390.893 lbf |
| Zcg without Ice | 498 mm / 19.606 in |
| Zcg with 1/2 in (12 mm) Radial Ice | 689 mm / 27.126 in |
| Weight with 1/2 in (12 mm) Radial Ice | 291 kg / 641.544 lb |
Packaging and Weights
| Height, packed | 2110 mm / 83.071 in |
|---|---|
| Width, packed | 600 mm / 23.622 in |
| Length, packed | 2000 mm / 78.74 in |
| Packaging Type | Standard pack |
| Volume | 2.5 m³ / 88.287 ft³ |
| Weight, gross | 150 kg / 330.693 lb |
| Weight, net | 90 kg / 198.416 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
