Brand: Lapp Group
|
SKU:
4A-1204EC-UL
Lapp Group 321204 | Power Cable, SOOW, 600V, 4 Conductor, Stranded, 12 AWG, 100 ft
Regular price
$3,804.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 321204 | Power Cable, SOOW, 600V, 4 Conductor, Stranded,...
Regular price
$3,804.86
Unit price
Brand: Lapp Group
|
SKU:
4A-1204EC-UL
Regular price
$3,804.86
Unit price
Shipping calculated at checkout.
Description
Description

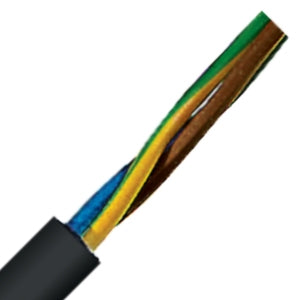

Lapp Group 321204 | Power Cable, SOOW, 600V, 4 Conductor, Stranded, 12 AWG, 100 ft
OLFLEX POWER IX 10/5 is a neoprene cordage with UL/CSA SOOW and H07RN-F approval. It has an international color-code and a jacket which is resistant to oil, chemicals, and abrasion. This allows it to be used in European, American, Asian and Canadian applications, one cable does the work of four.
Lapp Group - 321204 - Features
- International approvals: UL, CSA, & CE
- One cable does the job of four, reducing inventory
- One specification for easy and safe installation
- Oil-,chemical-,and abrasion-resistant jacket
- Ideal for high-stress applications in ry and damp environments
- UV-resistant jacket for outdoor use
Specifications
Specifications
Lapp Group - 321204 - Product Categories
- Electrical Wire and Cable
- Portable Cord and Flexible Cable
- Portable Cord
- SOOW
Lapp Group - 321204 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 321204 |
| Conductor Count | 4 Conductor |
| Item Description | Power Cable, SOOW, 600V, 4 Conductor, Stranded, 12 AWG, 100 ft |
| Conductor Material | Bare Copper |
| Conductor Size | 12 Awg |
| Conductor Stranding | Class 5 |
| Conductor Type | Stranded |
| Insulation Material | Rubber |
| Jacket Color | Black |
| Jacket Material | Neoprene |
| Length | 100 Ft. |
| Product Type | Multi-Conductor Soow Power Cordage |
| Shield Type | Unshielded |
| Temperature Rating | 90°C (194°F) |
| Voltage | 600 V |
