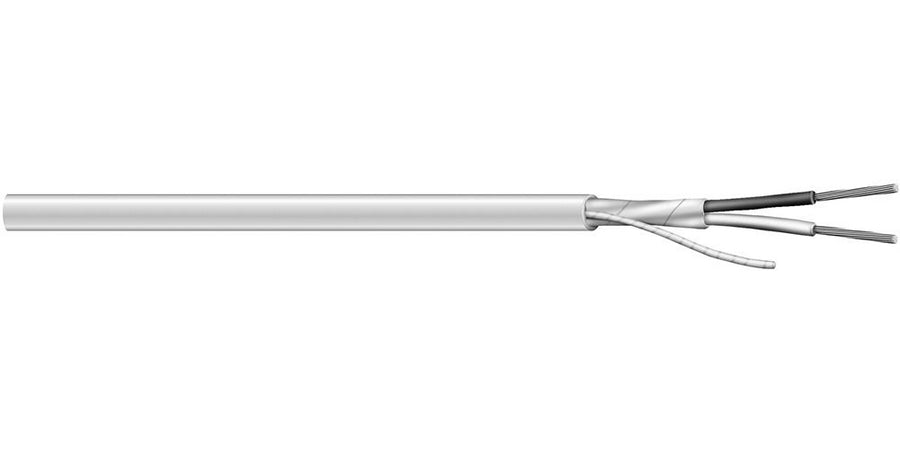

Encore Wire C0457A.41.10 | Control Tray Cable, 3, Annealed Copper, ...
Description
Description
The multi-conductor array of communication and control cable facilitates cable pull-ins and single-site installations. This cable is typically used for industrial equipment control, electric valve actuation and remote signaling, as well as communications and broadcast applications. These designs are available in a wide variety of insulation and jacketing materials, as well as shield designs to alleviate unwanted circuit noise.
Specifications
Specifications
Encore Wire - C0457A.41.10 - Applications
- Use it for control and signal applications where tray cable approval is required.
- Install it where shielding is needed to help reduce interference.
- Choose it for exposed or demanding environments where sunlight resistance and weather resistance are important.
Encore Wire - C0457A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0457A.41.10 |
| Conductor Count | 3 Conductor |
| Item Description | Control Tray Cable, 3, Annealed Copper, 16 AWG, Stranded, PVC Insulation, Gray Jacket, PVC Jacket, 1000 ft |
| Conductor Material | Annealed Copper |
| Conductor Size | 16 Awg |
| Conductor Type | Stranded |
| Insulation Color Code | White |
| Insulation Color | Gray |
| Insulation Material | Pvc |
| Insulation Thickness | 0.037 In. |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Control Tray Cable |
| Shield Type | Foil Shield |
| Special Rating | Ul, Ce, Nec/Cec |
| Temperature Rating | -20° To 105°C (-4° To 221°F) |
| Voltage | 300 V |
