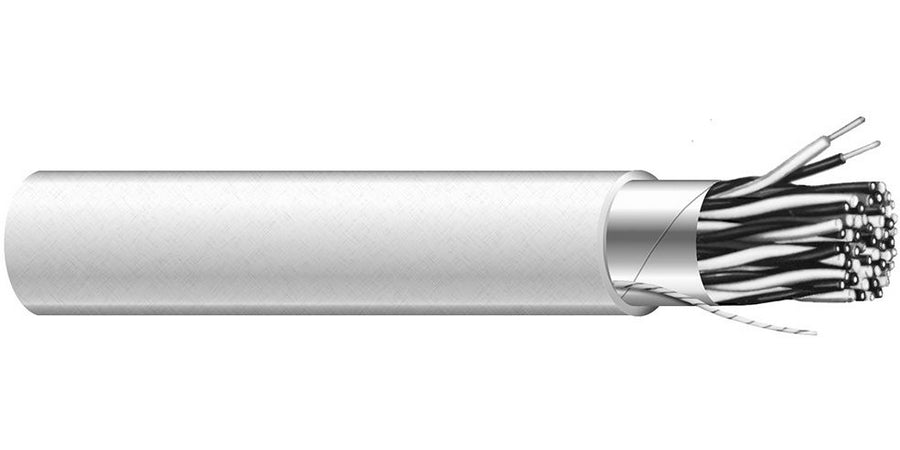

Encore Wire C0560A.41.10 | 18 AWG, 2 Pair, Stranded Tinned Copper Cable, PVC Outer Jacket, Overall Foil Shielded, Gray, 105°C, 300V
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Encore Wire C0560A.41.10 | 18 AWG, 2 Pair, Stranded Tinned Copper C...
Description
Description
Paired cable designs find frequent application in circuits requiring circuit-to circuit isolation from noise, minimization of capacitance imbalances and a reduction of EMI interference currents. Circuit separation is further enhanced in those designs employing individual circuit shields in concert with an overall shield. These shielding systems are available from general cable in myriad combinations to suit the unique needs of the circuit designer.
Specifications
Specifications
Encore Wire - C0560A.41.10 - Applications
- Use it in power-limited circuits where signal and control wiring is required.
- Support intercom systems that need dependable signal connections.
- Install it for business machines requiring control and signal wiring.
- Choose it for computer interconnects where shielded wiring can help reduce interference.
- Apply it in petrochemical control systems for signal and control circuit wiring.
- Use it for burglar alarms and related alarm circuits.
- It is suitably marked for appropriate tray cable installations.
Encore Wire - C0560A.41.10 - Specifications
| Manufacturer Name | Encore Wire |
|---|---|
| Manufacturer Part Number | C0560A.41.10 |
| Color | Gray |
| Item Description | 18 AWG, 2 Pair, Stranded Tinned Copper Cable, PVC Outer Jacket, Overall Foil Shielded, Gray, 105°C, 300V |
| Conductor Count | 4 Conductor |
| Conductor Material | Copper |
| Conductor Size | 18 Awg |
| Conductor Stranding | 16 Strands Per Conductor |
| Conductor Type | Stranded |
| Dimensions | Thk: 0.042 In. Insulation |
| Insulation Color Code | Black |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Length | 1000 Ft. (304.8 M) |
| Product Type | Conductor Cable |
| Shield Type | Foil Shield |
| Shielded | Shielded |
| Temperature Rating | -20°C To 80°C (-4°F To 221°F) |
| Voltage | 300 V |
