Description
Description

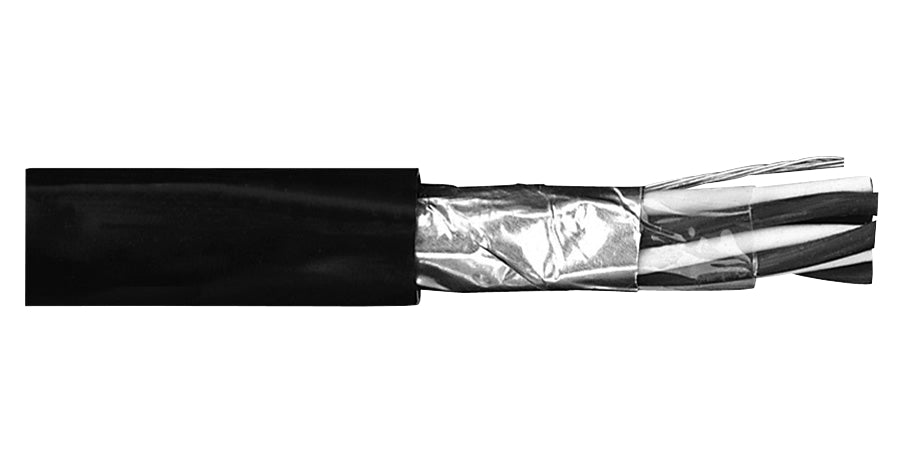

Lake Cable T166SPOS-22DR | Control Tray Cable, 6 Pair, 16 AWG, Stranded, Black Jacket
16 AWG 12 pairs 7 strands bare copper wire, PVC insulation, individually and overall shielded, with an overall PVC jacket. (UL) ITC or PLTC 105 C Sun Res Dir Bur FT-4 "RoHS".
Specifications
Specifications
Lake Cable - T166SPOS-22DR - Product Categories
- Electrical Wire and Cable
- Power and Control Cable
- Control and Instrumentation Cable
- Instrumentation Cable
Lake Cable - T166SPOS-22DR - Specifications
| Manufacturer Name | Lake Cable |
|---|---|
| Manufacturer Part Number | T166SPOS-22DR |
| Item Description | Control Tray Cable, 6 Pair, 16 AWG, Stranded, Black Jacket |
| Armored | No Armor |
| Color | Light Blue |
| Conductor Count | 6 Pair |
| Conductor Material | Bare Copper |
| Conductor Size - Min | 2/0 Awg/15Kv |
| Conductor Size | 16 Awg |
| Conductor Type | Stranded |
| Insulation Color Code | Black And White With Numbers |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Insulation Thickness | 16 Mil |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Thickness | 0.06 In. |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Outside Diameter | 0.62 In. |
| Product Type | Control Tray Cable |
| Screen/Shield | Shielded |
| Shield Type | Aluminum Mylar Both Individual And Overall Shield |
| Strands | 7 Str |
| Temperature Rating | 105°C (221°F) |
| Thermocouple | No |
| Voltage | 300 V |
