Brand: Lapp Group | SKU: 4A-1003EC

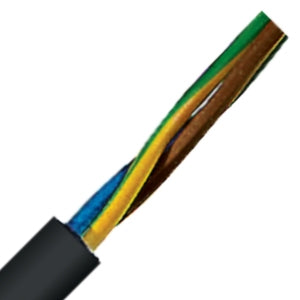

Lapp Group 1600120 | Power Cable, 3Conductor, Bare Copper, Rubber, 450 to 750V, 6sq.mm

$5,295.95

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Lapp Group 1600120 | Power Cable, 3Conductor, Bare Copper, Rubber, 450 to 750V, 6sq.mm

LAPP H07RN-F cordage, 16 AWG 3 conductor, is a neoprene cordage that meets harmonized H07RN-F approvals, has an international color-code and a jacket with resistance to oil, chemicals and abrasion. Can be utilized for European usage.

Specifications

Lapp Group - 1600120 - Product Categories

Electrical Wire and Cable
Power and Control Cable
Industrial Power Cable
Other Industrial Power Cable

Lapp Group - 1600120 - Specifications

Manufacturer Name	Lapp Group
Manufacturer Part Number	1600120
Armored	No
Item Description	Power Cable, 3Conductor, Bare Copper, Rubber, 450 to 750V, 6sq.mm
Conductor Count	3 Conductor
Cable Outside Diameter	15.9
Conductor Count	3 Conductor
Conductor Material	Bare Copper
Conductor Size	6
Conductor Type	Stranded
Earth/Ground Wires	Yes
Insulation Color Code	Black
Insulation Material	Rubber
Jacketing Material	Neo-Neoprene, Polychloroprene
Jacket Color	Black
Jacket Material	Rubber
Jacketing Material	Neoprene
Nbr Of Wires	1 Wire
Number Of Ground Wires	1
Outside Diameter	0.56 To 0.71 In.
Product Type	Power Cable
Screen/Shield	Unshielded
Shield Type	Unshielded
Temperature Rating	-25° To 60°C (-13° To 140°F)
Voltage	450 V; 750 V

Documents and Downloads

Lapp Group 1600120 Data Sheet
