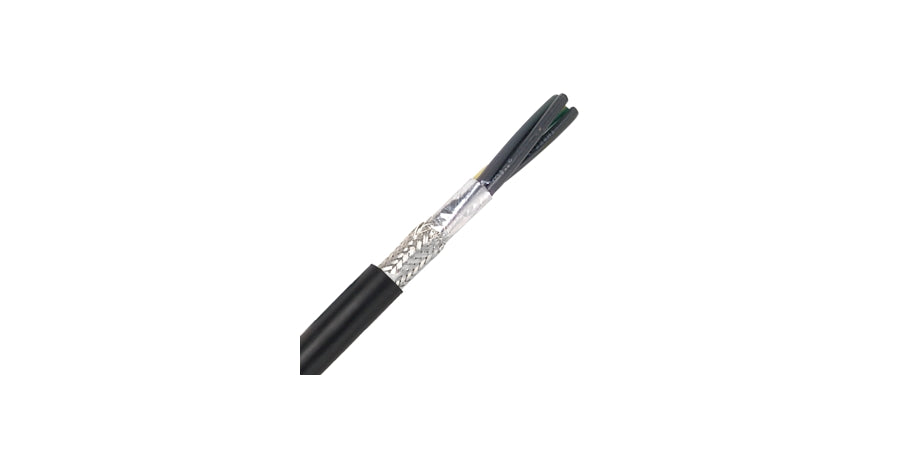

Lapp Group 771004 | Power Cable, 0.69 in. OD, 4, Bare Copper, 10 AWG, Stranded, Surge Guard Insulation, Black Jacket
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 771004 | Power Cable, 0.69 in. OD, 4, Bare Copper, 10 AW...
Description
Description
OLFLEX FD VFD is a shielded continuous flex motor supply cable. It is designed with the LAPP surge guard insulation system, which includes a semiconductive layer made to withstand nonlinear power distortions associated with VFD drives in industrial applications. It is resistant to a wide range of disinfecting solutions used in the food, beverage, chemical and related industries. For bending cycles and operation parameters, see www.lappusa.com/cf-rating.
Specifications
Specifications
Lapp Group - 771004 - Product Categories
- Electrical Wire and Cable
- Power and Control Cable
- Industrial Power Cable
- Other Industrial Power Cable
Lapp Group - 771004 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 771004 |
| Armored | No |
| Item Description | Power Cable, 0.69 in. OD, 4, Bare Copper, 10 AWG, Stranded, Surge Guard Insulation, Black Jacket |
| Conductor Count | 4 Conductor |
| Cable Outside Diameter | 0.69 In. |
| Conductor Count | 4 Conductor |
| Conductor Material | Bare Copper |
| Conductor Size | 10 Awg |
| Conductor Type | Stranded |
| Insulation Material | Surge Guard |
| Jacket Color | Black |
| Jacket Material | Thermoplastic |
| Jacketing Material | Thermoplastic Polymer |
| Length | 1000 Ft. |
| Outside Diameter | 0.69 In. |
| Product Type | Power Cable |
| Shield Type | Braid And Foil Shield |
| Type | Stranded |
| Temperature Rating | -5° To 90°C (23° To 194°F) |
| Voltage | 600 To 1000 V |
