Brand: Nvent Caddy
|
SKU:
681288

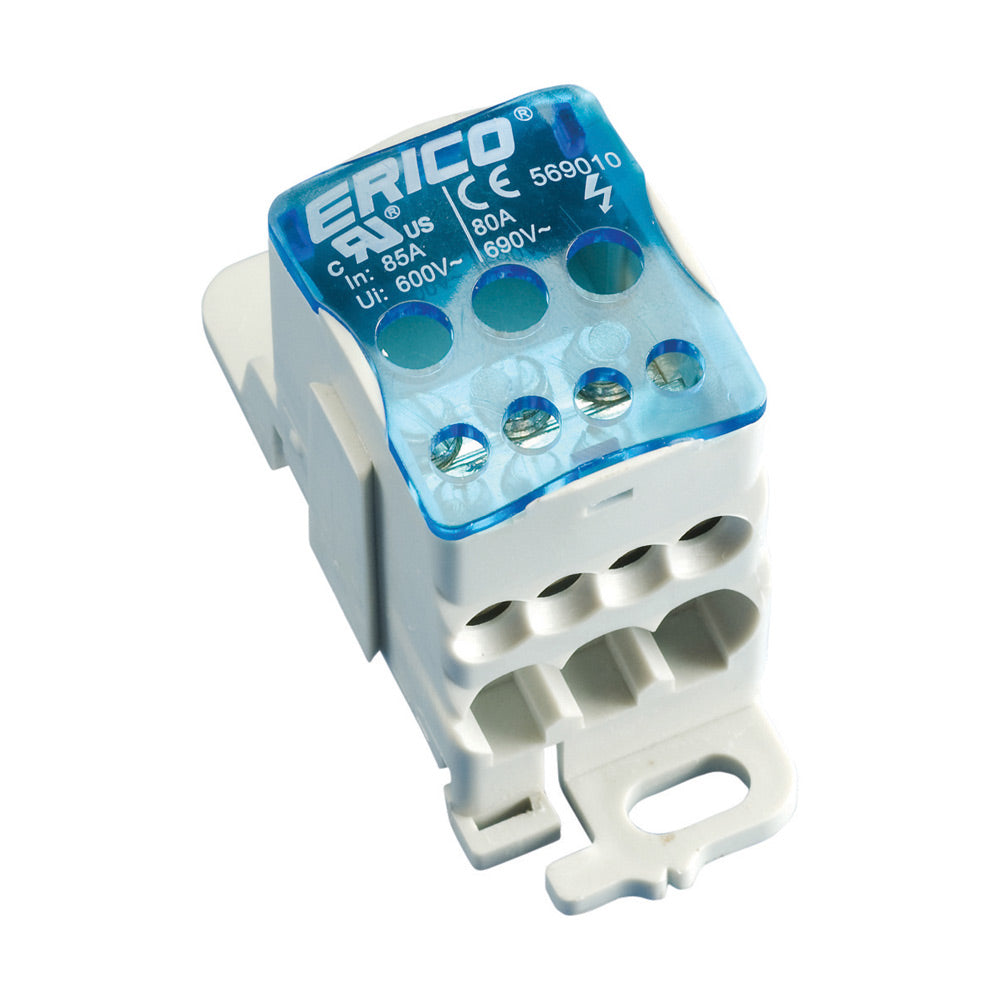

Nvent Eriflex 569010 | Distribution Block, 1000 VAC/DC (IEC), 600 V (UL), 1 -Pole
Regular price
$14.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Nvent Eriflex 569010 | Distribution Block, 1000 VAC/DC (IEC), 600 V...
Regular price
$14.85
Unit price
Description
Description
Nvent Eriflex 569010 | Distribution Block, 1000 VAC/DC (IEC), 600 V (UL), 1 -Pole
Distribution Block; 1000 VAC/DC (IEC), 600 V (UL); 1 -Pole; Tinned-Coated Copper, Aluminum Conductor; Copper, Thermoplastic Housing; Block Type: Modular Snap-Together; 4 AWG Conductor Size; 4 AWG Conductor Size; 1 Poles Per Block
Nvent Eriflex - 569010 - Features
- Increase the number of outputs with one input using a jumper wire
- Tinned copper block allows for copper or aluminum conductor connections
- Screw retaining cover is hinged and removable
- Design allows for visual inspection of conductor and confirmation of connection
- Gangable for building multi-pole power blocks
- Easily clips onto Din rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- 22 kA peak short circuit current
- 3 kA short term withstand current (Icw) 1s
- 6 to 16 sq-mm and 16 to 4 AWG line side compact stranded wire size/(2) 2.5 to 16 sq-mm and 16 to 4 load side compact stranded wire size/(2) 2.5 to 16 sq-mm load side stranded wire size -ferrule
- Modular snap-together blocks for building multi-pole power blocks
Specifications
Specifications
Nvent Eriflex - 569010 - Product Categories
- Power Products
- Power Distribution and Protection
- Distribution and Terminal Blocks
- Power Distribution Blocks
Nvent Eriflex - 569010 - Specifications
| Manufacturer Name | Nvent Caddy |
|---|---|
| Manufacturer Part Number | 569010 |
| Item Description | Distribution Block, 1000 VAC/DC (IEC), 600 V (UL), 1 -Pole |
| Amperage | 85 |
| Block Type | Power Distribution Block |
| Conductor Material | Copper |
| Conductor Size - Primary | 16 To 4 Awg |
| Conductor Size - Secondary | 16 To 8 Awg |
| Dimension | Wxhxd: 1.18 X 2.72 X 1.82 In. |
| Housing Material | Copper, Thermoplastic |
| Material - Connector | Copper |
| Material - Housing | Thermoplastic |
| Number Of Poles | 1P |
| Openings Per Pole, Primary | 2 |
| Openings Per Pole, Secondary | 4 |
| Poles Per Block | 1 |
| Product Type | 1-Pole Distribution Block |
| Voltage | 1000 Vac/Dc (Iec), 600 V (Ul) |
| UPC | 782856594178 |
