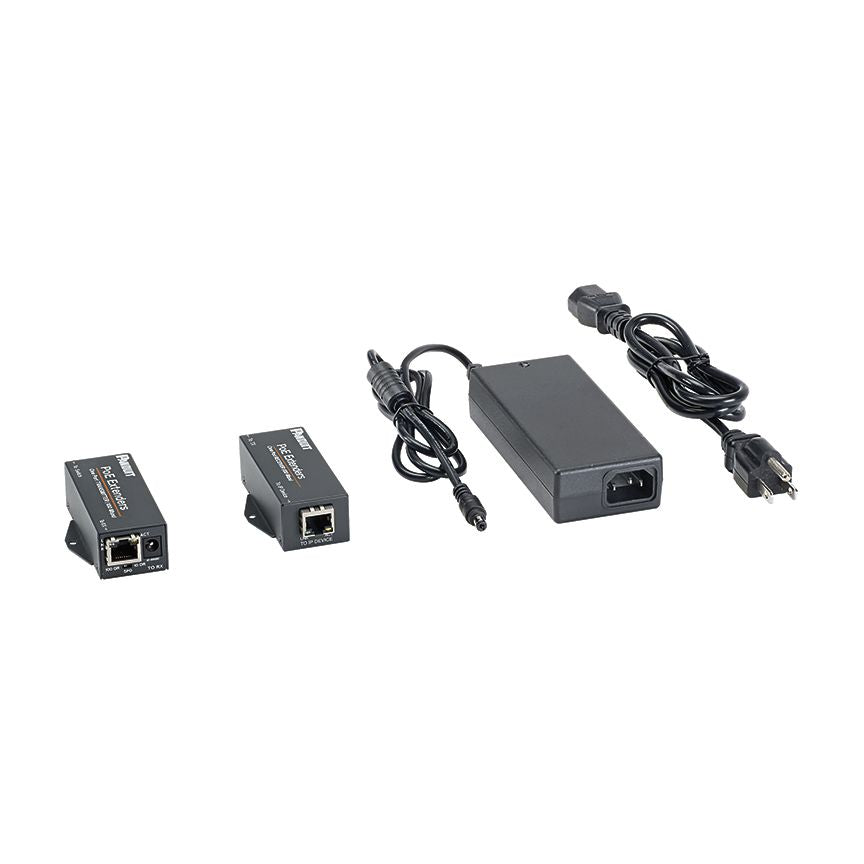

Panduit POEXKIT1 | 1-Port Extender Kit | UPC - 61305657851
Regular price
$1,012.87
Unit price
Description
Description
The PoE Extenders shall deliver 10/100 Mbps full duplex data and shall deliver up to 50 W PoE at lengths up to 2000 ft (610m) over standard 2 or 4-pair twisted-pair cable. The PoE Extenders shall reduce the additional costs and disruptions associated with other products or solutions.
Panduit PoE Extender Kit, 60 W, 1.98 in Width, Black, For Use With: IEEE 802.3af/at Compliant Cameras, VoIP Phones, Access Card Readers and PoE Lights
Features + Benefits
- Low cost of installation - significant cost savings compared to fiber cable and media convertors option or other options in the market
- Compatibility with existing PoE or non-PoE switches - these extenders fit very easily into an existing infrastructure and help extend PoE over the standard 100 m range
- Uses standard twisted 4-pair cable - does not require the usage of specialized cables such as hybrid copper/fiber cables
- RJ45 interface - utilizes standard RJ45 interfaces which makes it easy for field terminations of copper cable being used to transmit PoE
- Individually serialized - marked with quality control number for future traceability
- Small profile - small size makes it fit into smaller spaces like a base of a light pole
Panduit POEXKIT1 Key Specs
| Product Type | 1-Port Extender Kit |
| PoE Compatibility | PoE/PoE+ |
| Connector Type | RJ45 |
| Overall Width (In.) | 1.98 |
| Overall Length (In.) | 3.51 |
| Overall Height (In.) | 1.01 |
| Color | Black |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Standards Met | UL 60950-1, RoHS Compliant |
| Data Transfer Rate (Mb/s) | 100 |
Panduit POEXKIT1 Data Sheets
| Product Bulletins | PoE Extenders for Data and Power up to 2000 Feet | Download and View |
| Flyers | Long Reach PoE Goes the Distance | Download and View |
| Installation Documents | PoE Extenders Installation Instructions | Download and View |
| Flyers | FAQ - PoE Extenders | Download and View |
| Certifications | IEEE 802.3 Using 100 Base-T Protocal +2000 ft Intertek Letter Report | Download and View |
| Part Drawings | 1 - Port PoE Extender Kit | Download and View |
| Specification Sheets | PoE Extenders | Download and View |
