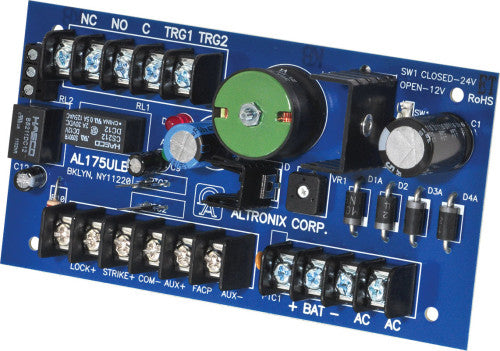

Altronix AL175ULB | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1.75A, Board

Dimensions (approximate)

• 3.1"W x 5.8"L x 1.5"H (78.74 mm W x 147.32 mm L x 38.1 mm H).

Input

• Input 24VAC, 40VA. Class 2 transformer.
• Fire Alarm Panel or Access Control trigger input.

Output

• 12VDC or 24VDC selectable outputs.
• 12VDC @ 1.75A or 24VDC @ 0.9A supply current.
• Two (2) Class 2 Rated power-limited outputs.
• Fail-Safe/Fail-Secure lock output (switched).
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• AC fail supervision (form "C" contacts).
• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Visual Indicators

• AC input and DC output LED indicators.

Weights (approximate)
