Brand: Alpha Wire
|
SKU:
A391440

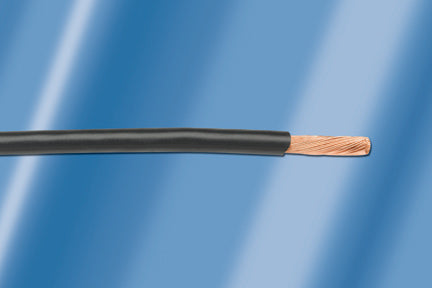

Alpha Wire 391440 BK001 | Hook Up Wire, 14AWG, 1000 FT, Black
Regular price
$4.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 391440 BK001 | Hook Up Wire, 14AWG, 1000 FT, Black
Regular price
$4.44
Unit price
Description
Description
14 AWG Hook-Up Wire 41/30 Black 10kV 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 14 (41/30) AWG TC |
| Insulation | 0.040" Wall, Nom. Silicone Rubber |
| 14 AWG RU AWM STYLE 3239 150C 10KVDC VW-1 EXXXXX | |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 150°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 32 Lbs, Maximum |
| Voltage Rating | 10000 VDC |
| Conductor DCR | 2.8 ?/1000ft @20°C, Nominal |
