TOA Electronics SC-615T | 15W Paging Horn Speaker with 70.7V Transf...
Description
Description

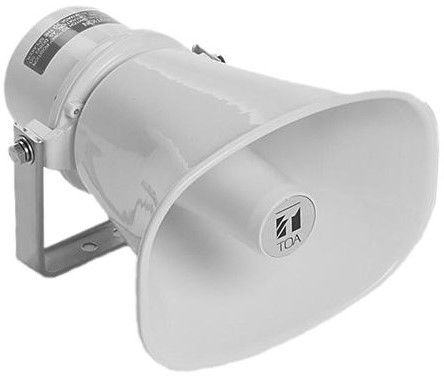

The TOA SC615T paging horn speaker provides intelligible voice paging and tone signaling for indoor and outdoor sound system applications. Fully weather-resistant for reliable operation in demanding environmental conditions. High impedance SC615T (15W) is easy to install in wall, pole or ceiling-mount applications and includes corrosion-resistant stainless-steel mounting hardware. The SC Series models are also designed for intercom talk-back applications requiring dual operation as both a microphone and speaker.
The paging horn is a double re-entrant horn with compression driver for high sensitivity and a lightweight aluminum enclosure. The loud-speaker diaphragm is heat and moisture-resistant to prevent deformation and extend operation. The SC Series are also IP-65 standards compliant for dust and moisture-resistance with a wide operating temperature range from -4°F to 130°F. The SC Series Paging Horn Speakers are backed with a five-year warranty.
Key Features
- Paging Horn Speakers for voice paging and tone signaling distribution.
- Weather-Resistant to withstand demanding environmental conditions.
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- High Sensitivity: up to 113dB (1W / 1m).
- Usable as a Microphone for intercom talk-back applications.
- Built-In 25V / 70.7V Transformer ("T" Models) with screwdriver-adjustable power taps (8 and 16? models also available).
- Lightweight, Sealed, Aluminum Enclosure prevents moisture damage.
- Cable Strain-Relief
- IEC IP-65 Standards Compliant for dust and moisture-resistance.
- Wide Temperature Range: -4°F to 131°F
- Phenolic Loudspeaker Diaphragm prevents deformation from heat and moisture.
- Stainless-Steel Mounting Bracket for easy installation and aiming in wall, pole or ceiling-mount applications.
- Five-Year Warranty
Specifications
Specifications
Specifications
- Enclosure Type: Double Re-Entrant Horn
- Speaker Component: Compression Driver
- Power Handling: 15W
- Transformer Taps: 8?
- Rated Impedance: 70.7V: 15W (330?)
- Sound Pressure Level: 112dB SPL (1W / 1m, 500Hz - 2,500Hz)
- Frequency Response: 280Hz - 12.5kHz
- Dispersion: 70°H x 90°V
- Sensitivity as Microphone: -22dB @ 1kHz
- IEC IP Code: IP-65
- Temperature Range: -4°F to 131°F (-20°C to +55°C)
- Material / Finish Horn Flare: Aluminum, Off-White, Powder Coating
- Reflector Horn and Rear Cover: ABS Resin, Off-White
- Bracket, Screws and Bolts: Stainless Steel
- Speaker Cable: Polyvinyl Chloride Insulated (Diameter: 0.24" (6mm), Length: 24" (600mm)
- Dimensions: 8.74" x 7.04" x 9.21", 222 mm x 179 mm x 234 mm
- Weight: 2.43lbs. (1.1kg.)
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
