Brand: Toa Electronics Inc.
|
SKU:
873499

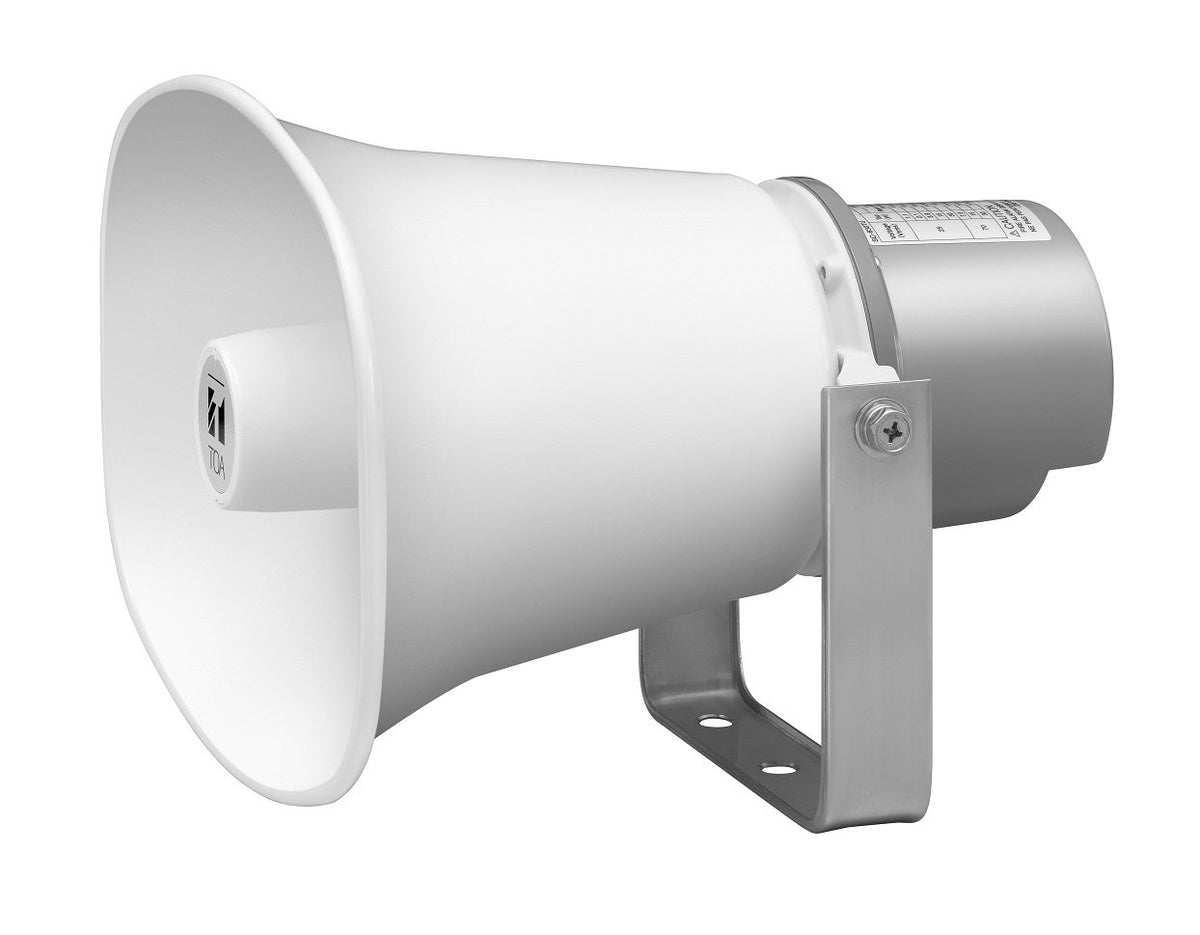

TOA Electronics SC-630TU | 30W Paging Horn Speaker with 70.7V Transformer, UL Rated
Regular price
$149.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics SC-630TU | 30W Paging Horn Speaker with 70.7V Trans...
Regular price
$149.17
Unit price
Brand: Toa Electronics Inc.
|
SKU:
873499
Regular price
$149.17
Unit price
Shipping calculated at checkout.
Description
Description
The SC-630TU is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630TU is certified to UL 1480 UUMW and ULC-S541 standards, and suitable for outdoor use.
Key Features
- Paging Horn Speakers for Voice Paging and Tone Signaling Distribution
- Weather Resistant to Withstand Demanding Environmental Conditions
- Double Re-Entrant Horn with Compression Driver
- Controlled Dispersion
- High Sensitivity
- USAble as a Microphone for ercom Talk-Back Applications
Specifications
Specifications
Specifications
- Rated Input: 30W
- Line Voltage: 70V line or 25V line
- Rated Impedance:
- 70V line: 170? (30W), 330? (15W), 650? (7.5W)
- 25V line: 21? (30W), 42? (15W), 170? (3.9W), 330? (2.1W), 650? (1.1W)
- Sound Pressure Level: 113dB (1W, 1m @ 500Hz to 2.5kHz peak level)
- Frequency Response: 250Hz - 10kHz
- Dust/Water Protection: IP65
- Polarity: Hot: Black and Red cables, Com: White and Green cables
- UL Code: UL 1480 UUMW, ULC-S541
- Operating Temperature: -40°C to +66°C(-40°F to +151°F) (must be free from dew condensation)
- Horn flare: Aluminum, white (RAL 9010 equivalent), powder coating
- Reflector horn: ABS resin, white (RAL 9010 equivalent)
- Rear cover: ABS resin, gray (RAL 7031 equivalent)
- Bracket, screws and bolts: Stainless steel
- 4-core FPL listed cable 0.6m (1.97ft)
- (4.8mm (0.19") in diameter, 600mm (1.97 t) in length)
- Dimensions: 285 (W) × 227 (H) × 277 (D)mm (11.22" × 8.94" × 10.91")
- Weight: 2kg (4.41lbs)
- Option: Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
