Brand: CommScope
|
SKU:
408422558

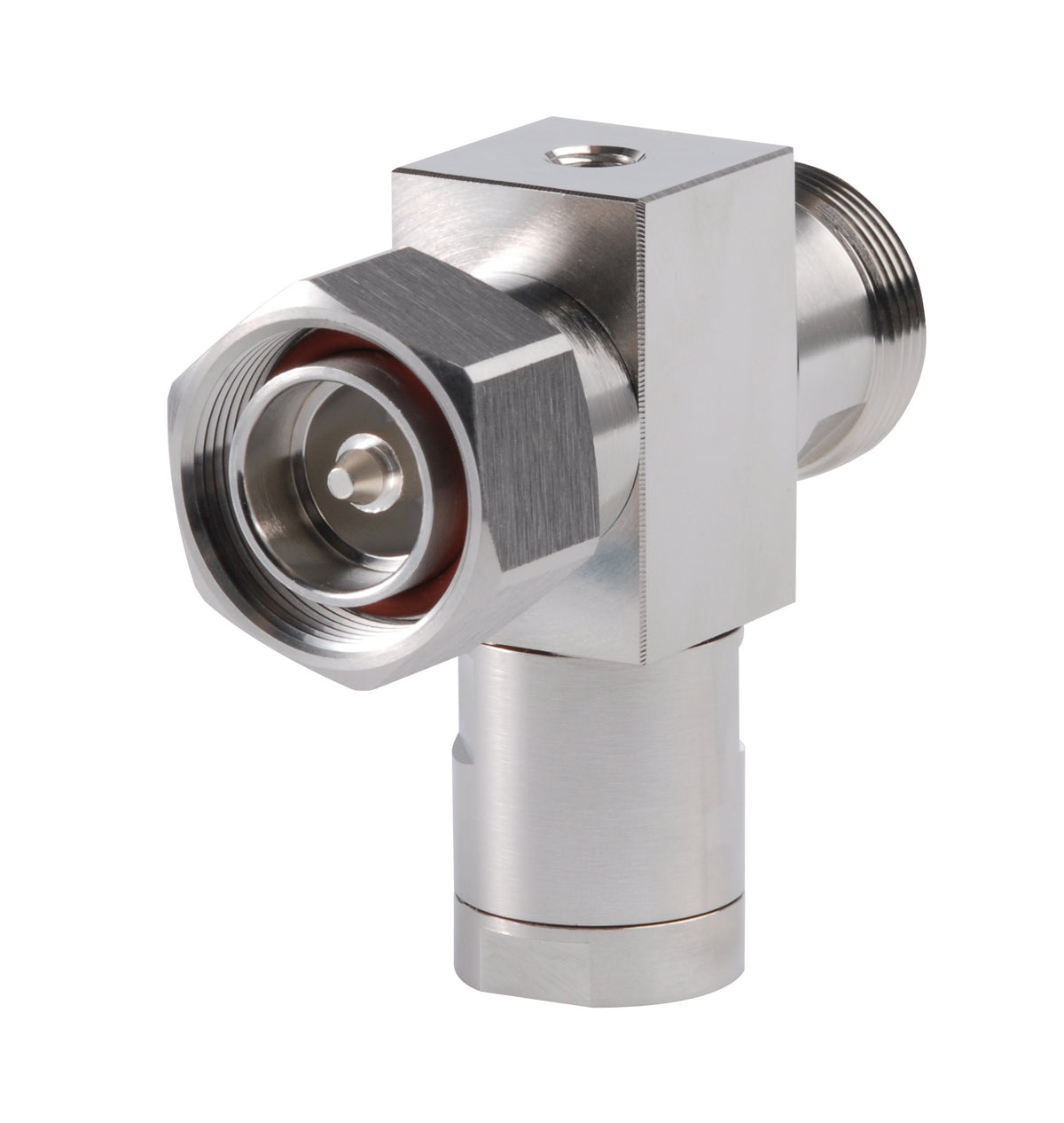

Commscope APT-DFDM-DB | Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz
Regular price
$130.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope APT-DFDM-DB | Arrestor Plus Dual Band Quarterwave Surge A...
Regular price
$130.56
Unit price
Description
Description
Arrestor Plus Dual Band Quarterwave Surge Arrestor (T-shaped), 806–960 MHz and 1700–2170 MHz, with interface types DIN Female and DIN Male
Specifications
Specifications
Product Classification
| Product Type | Surge arrestor |
|---|---|
| Product Brand | Arrestor Plus |
General Specifications
| Device Type | dc Block |
|---|---|
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 74.168 mm | 2.92 in |
|---|---|
| Width | 36.068 mm | 1.42 in |
| Length | 76.962 mm | 3.03 in |
Electrical Specifications
| 3rd Order IMD | -117 dBm |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.07 dB |
| Average Power at Frequency | 3,000.0 W @ 900 MHz |
| Connector Impedance | 50 ohm |
| Lightning Surge Capability | 100 times @ 20 kA |
| Lightning Surge Capability Test Method | IEEE C62.42-1991 |
| Lightning Surge Capability Waveform | 8/20 waveform |
| Lightning Surge Current | 30 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 806 – 960 MHz | 960 – 1710 MHz | 1710 – 2000 MHz | 2000 – 2170 MHz |
| Peak Power, maximum | 40 kW |
| Throughput Energy at Current | 2.0 mJ @ 30 kA | 25.0 ?J @ 2 kA |
| Throughput Energy Waveform | 8/20 waveform |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Coupling Nut Proof Torque | 24.857 N-m | 220 in lb |
| Coupling Nut Retention Force | 1000.85 N | 225 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 500 cycles |
Environmental Specifications
| Operating Temperature | -40 °C to +150 °C (-40 °F to +302 °F) |
|---|---|
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
