Brand: Panduit
|
SKU:
9992125
Panduit FR1.5IDELYL | FiberRunner 1-Port Spillout, Yellow
Regular price
$82.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FR1.5IDELYL | FiberRunner 1-Port Spillout, Yellow
Regular price
$82.24
Unit price
Description
Description

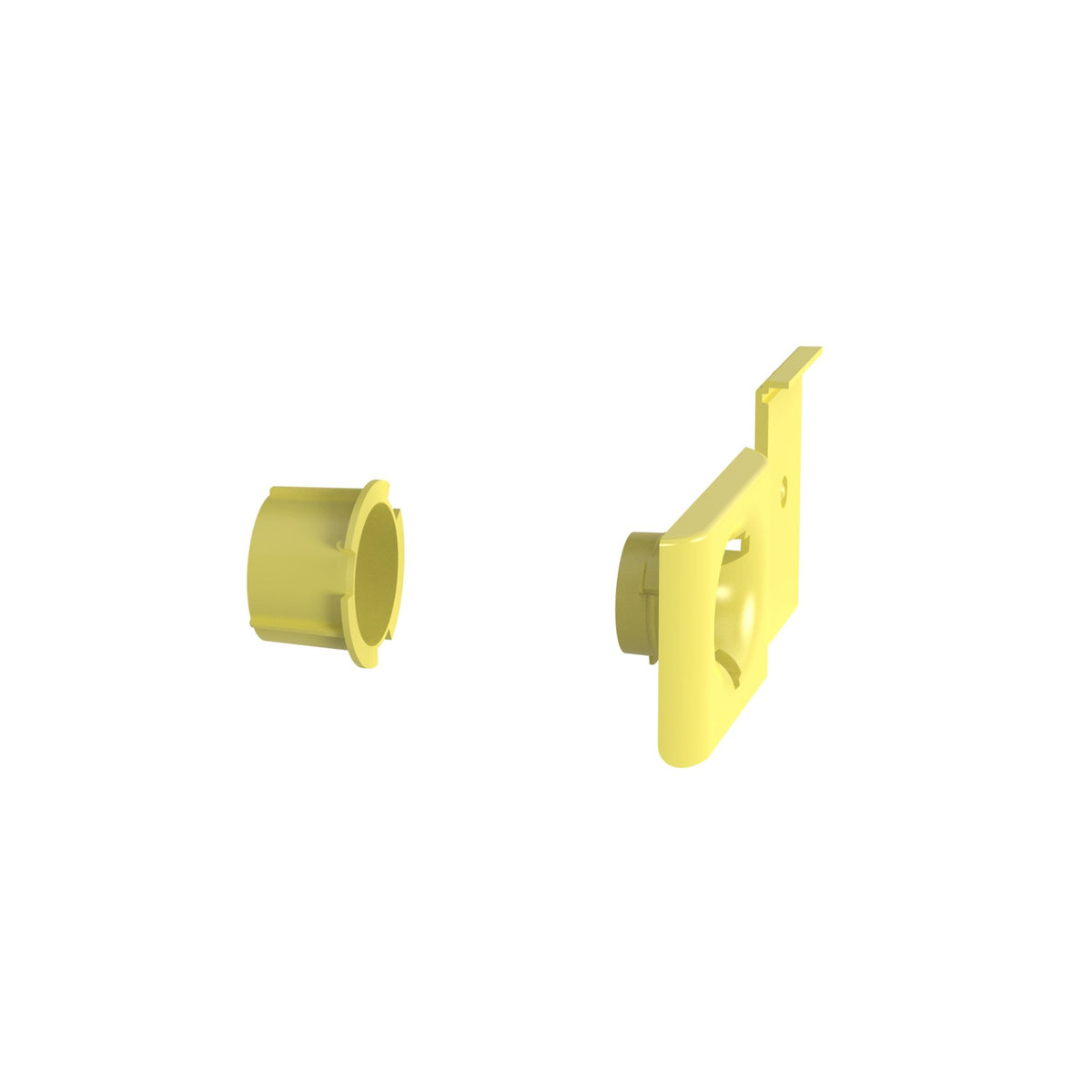

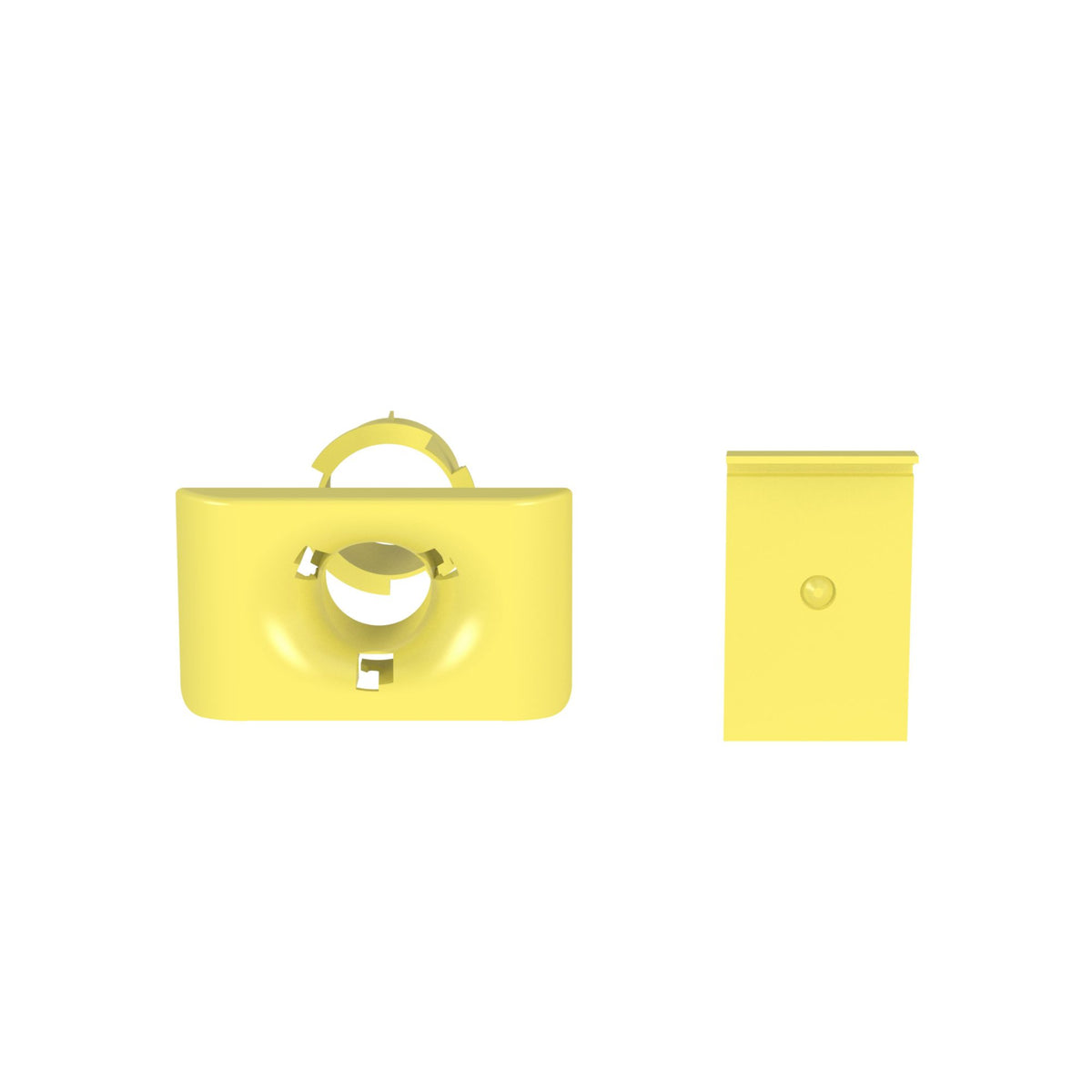

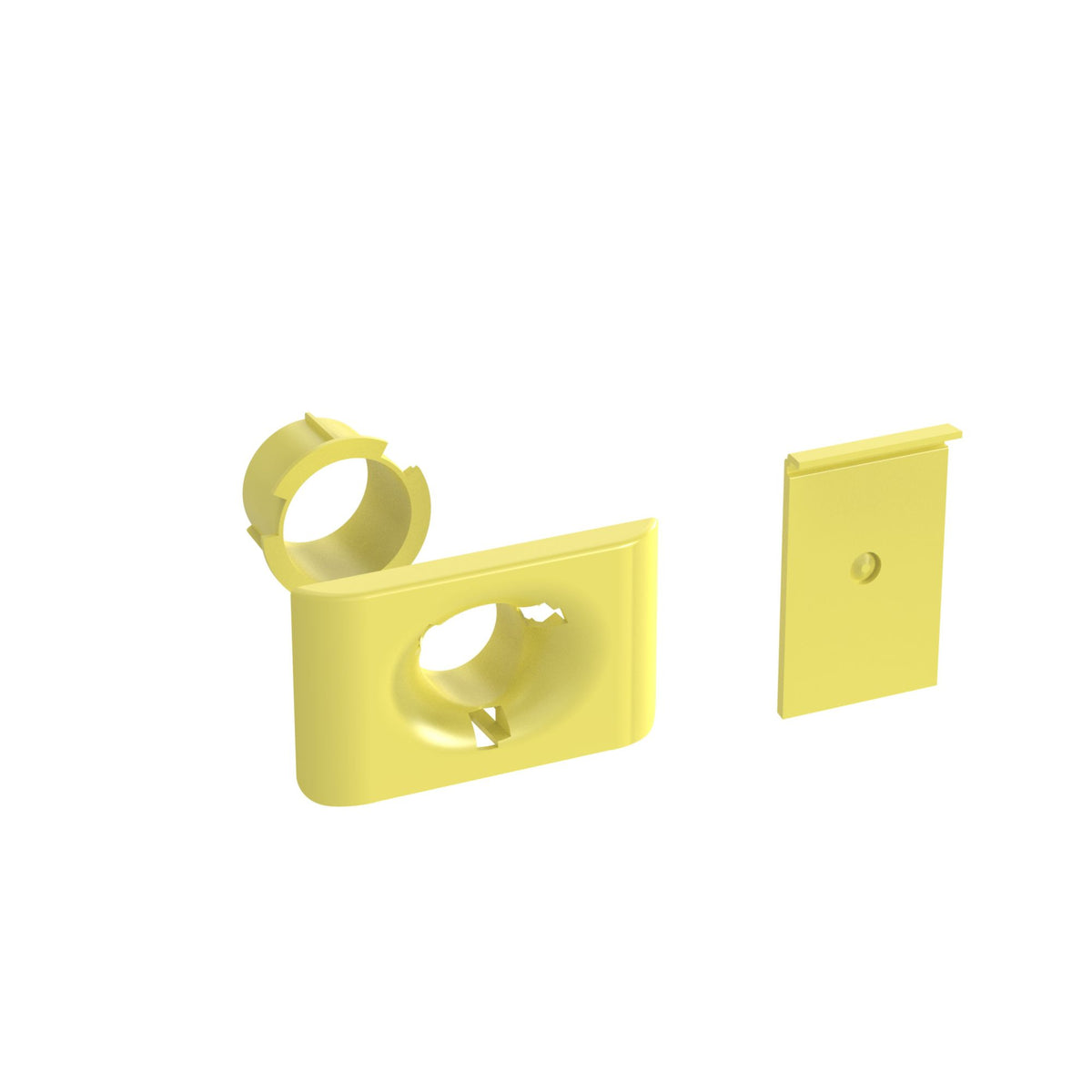

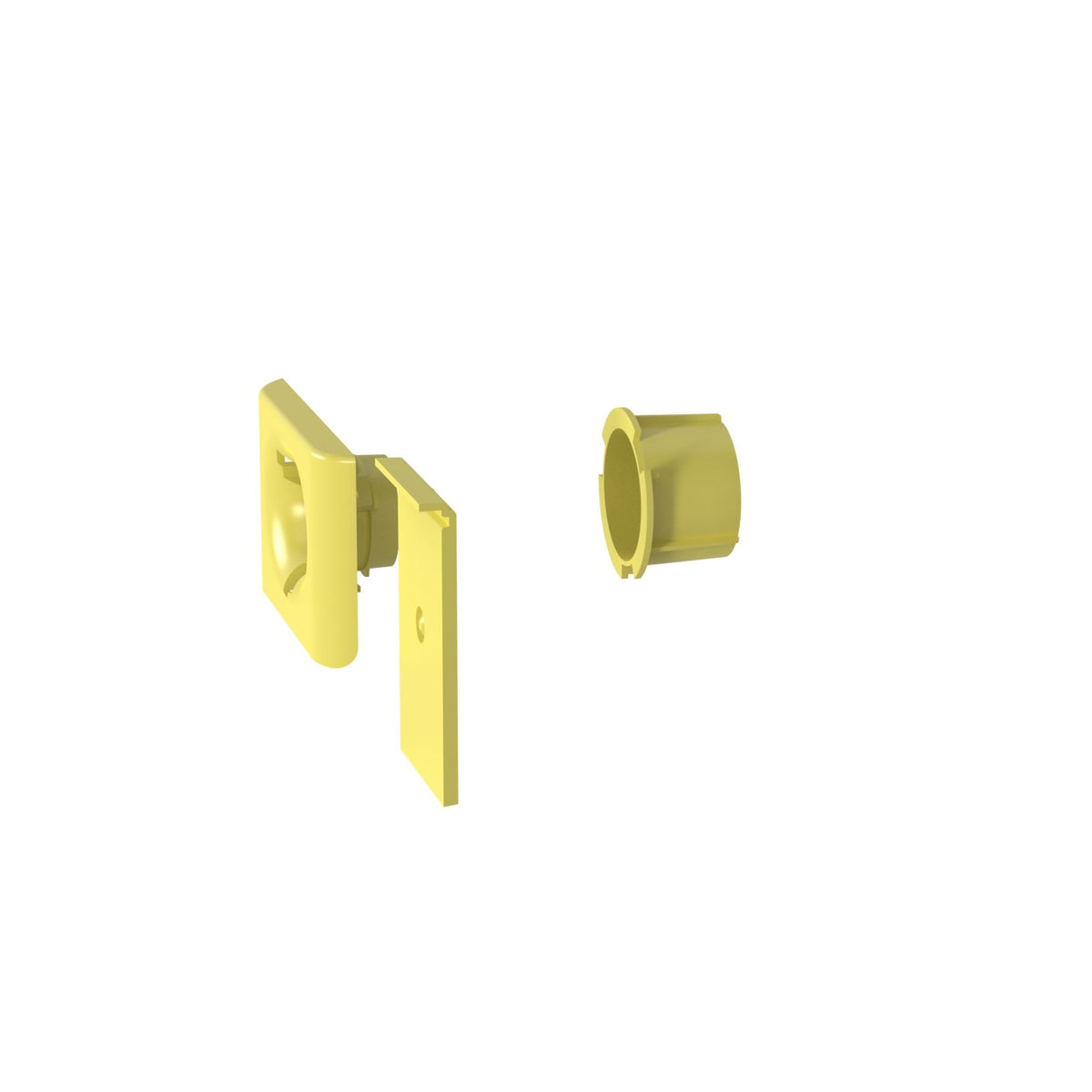

Panduit FR1.5IDELYL | FiberRunner 1-Port Spillout, Yellow
The FiberRunner 1-Port Spillout is used to route cable into 1.5 inch (38mm) diameter split corrugated tubing directly through a hole cut in the side wall. It is compatible with the 4x4, 6x4, and 12x4 FiberRunner Channel.
Panduit FR1.5IDELYL 1 Port Spill Out Side Exit To1.5"yellow Lszh Rohs
Specifications
Specifications
Panduit - FR1.5IDELYL - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Spillouts
Panduit - FR1.5IDELYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FR1.5IDELYL |
| Item Description | FiberRunner 1-Port Spillout, Yellow |
| Application | Data Centers and Telco Central Offices |
| Product Type | 1-Port Spillout |
| Sub Brand | FiberRunner |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| For Use With | 4x4, 6x4, and 12x4 FiberRunner Channel |
| Includes | (1) Spill-Out, (1) Retainer, (1) Drilling Template |
| Material | PC/ABS |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Overall Length (In.) | 1.53 |
| Overall Length (mm) | 38.9 |
| Overall Width (In.) | 5.33 |
| Overall Width (mm) | 135.4 |
| Standards Met | RoHS Compliant, UL Listed to 2024 Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 4x4, 6x4, 12x4 |
| Color | Yellow |
| Components | FITTINGS |
| Type | NON-METALLIC |
| UNSPSC Code | 39131709 |
Panduit - FR1.5IDELYL - Package Information
| UPC | 61305676398 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0489 |
| Standard Ctn. Quantity | 5 |
| Standard Ctn. Volume (cf) | 0.2446 |
