Brand: Servertech
|
SKU:
954320

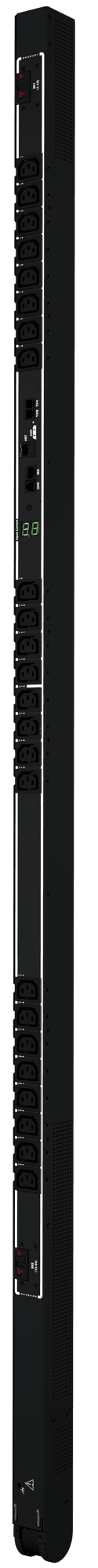

Servertech STV-4540C | Switched PDU, 24 Outlets, 208V3-Phase Delta, 30A, Iec 60320 Nema L6-30P
Regular price
$2,023.68
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Servertech STV-4540C | Switched PDU, 24 Outlets, 208V3-Phase Delta,...
Regular price
$2,023.68
Unit price
Description
Description
Servertech STV-4540C | Switched PDU, 24 Outlets, 208V3-Phase Delta, 30A, Iec 60320 Nema L6-30P
Server Technology STV-4540C: Switched PRO1 with PIPS (Per Input Power Sensing), 0U, 24 x IEC C13 Outlets, (1) Input LED Amp Meter w/ Auto-flip, 208-240V 30A Input w/ NEMA L6-30P Plug, 3m (10') Cord w/ Power Pivot Cord Entry, Middle Display/Network, (2) Temp/Humidity Sensor Capable, Circuit Breakers
Server Technology STV-4540C: Switched PRO1 with PIPS (Per Input Power Sensing), 0U, 24 x IEC C13 Outlets, (1) Input LED Amp Meter w/ Auto-flip, 208-240V 30A Input w/ NEMA L6-30P Plug, 3m (10') Cord w/ Power Pivot Cord Entry, Middle Display/Network, (2) Temp/Humidity Sensor Capable, Circuit Breakers
Specifications
Specifications
Servertech - STV-4540C - Specifications
| Number of Outlets | 24 |
|---|---|
| Type | RACK MOUNT PDU |
| UNSPSC Code | 39121017 |
| Input Power Capacity (kW): | 5.0 |
| Input Plug Type: | NEMA L6-30P |
| Input Current (A): | 30 |
| Input Current Rated (A): | 24 |
| Input Nominal Voltage (V): | 208 |
| Input Phase: | 1-Phase (L-L) |
| Input Cord Location: | Bottom/Pivot |
| Outlet Form Factor: | Conventional |
| Total Outlets: | 24 |
| IEC C13 Count: | 24 |
| Utility Outlet: | 0 |
| Branch Monitoring: | Sense |
| Branch Overcurrent Protection: | 5 kAIC |
| Branch Overcurrent Protection Type: | Circuit Breaker: 2-pole |
| Dual Input: | No |
| High Retention Outlets: | Yes |
| Input Current Display: | Auto-Orient |
| Input Monitoring: | PIPS |
| Locking Outlets: | Yes |
| Max Operating Temperature: | 60 °C |
| Fast Movers: | Yes |
| Mounting: | 0U Vertical |
| Outlet Monitoring: | None |
| Power Pivot Input: | Yes |
| Product Height (inch): | 69.0 |
| Product Height (mm): | 1753 |
| Product Max Depth (inch): | 2.25 |
| Product Max Depth (mm): | 58 |
| Product Nominal Depth (inch): | 2.25 |
| Product Nominal Depth (mm): | 58 |
| Product Width (inch): | 1.75 |
| Product Width (mm): | 45 |
Documents and Downloads
Documents and Downloads
- Servertech STV-4540C Design Diagram
- Servertech STV-4540C Wiring Diagram
- Servertech STV-4540C User Guide
- Servertech STV-4540C Application Note PRO2-001
- Servertech STV-4540C Application Note PRO2-002
- Servertech STV-4540C Application Note SPM-001
- Servertech STV-4540C Technical Note - About Bluetooth Ready
- Servertech STV-4540C Technical Note - CDU Firmware Upgrade Instructions
