Brand: Camden Door Controls
|
SKU:
CS463395

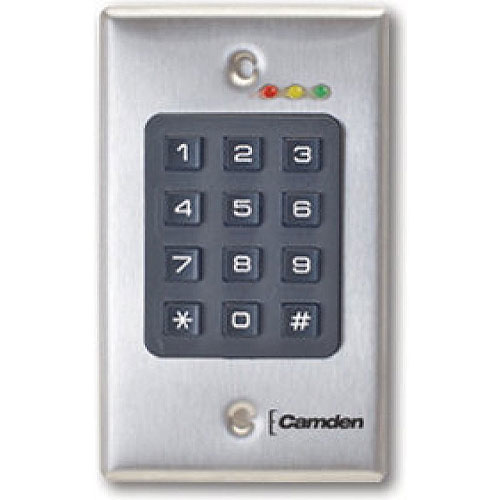

Camden Door Controls CM-120I | Stand Alone/Wiegand Keypad, Flush Mount, 999 Users, 12/24 VAC/DC
Regular price
$124.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Camden Door Controls CM-120I | Stand Alone/Wiegand Keypad, Flush Mo...
Regular price
$124.08
Unit price
Brand: Camden Door Controls
|
SKU:
CS463395
Regular price
$124.08
Unit price
Shipping calculated at checkout.
Description
Description
The Camden 120I is an indoor, selectable, stand-alone or wiegand digital keypad used where control of electrically locked doors (with electric locks, magnetic locks, or electric strikes) is required. The unit may also be used for activating/deactivating machinery or equipment. The 120I is ideal for use in storage closets, recreation centers, safe rooms, self-storage facilities, pools/saunas, restaurant freezers and computer rooms.
Key Features
- Keypad for indoor use, features stainless steel faceplate and polycarbonate keys
- Flush mount single gang stainless steel faceplate
- 3 LED's + Piezo Buzzer
- Request-to-Exit Input
- Door contact input for anti-tailgating & door open alarm
- Global lock-out feature
- Includes tamperproof screws & driverOption for plug-in TX-99 wireless transmitter, 2 channel
Specifications
Specifications
Specifications
| UPC | 670454121073 |
|---|---|
| Also known as | CM120I, CM-120I |
| Voltage | 12/24 V AC/DC |
| Mounting | Single gang, flush, (2) #6 machine and tamper proof screws |
| Current Draw | 30 MA Standby, 90 MA Max |
| Input | 1 x Rex Input / 1 x Door Contact Input |
| Contact Type | 2 x Form C |
| Contact Rating | 3 AMPS @ 24 VDC |
| Capacity | 999 User Codes |
| Length | Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time | 0.3 Seconds |
| Time Delay | 1 to 255 Seconds, or Latched |
| Temp Range | -40F to + 185F (-40C to +85C) |
| Dimensions | 2-3/4" x 4-1/2" x 3/4" (70 mm x 114 mm x 19 mm) |
| RF Output | Optional Plug-In Transmitter, 2 Channel |
