Vigitron VI1054VP 12 VDC UTP Combiner-Receiver Minimum Quantity Required to order is 10 Pieces For This Item

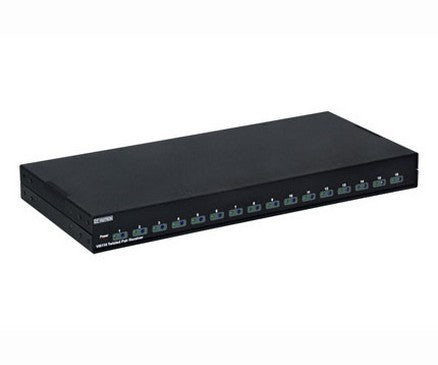

The Vigitron Vi6116 is an advanced 16 port active receiver hub that receives high resolution color or black and white video over unshielded twisted pair category 2-7, at distances up to 6,000 feet (1,830 m) when used with a Vigitron Vi6100VT active transmitter. It can receive video signals from any Vigitron passive transceiver for distances up to 3,000 feet (915 m). The Vi6116 is a compact 1U 19 in. rack mountable unit. Each channel has a single distance adjustment, as well as an LED to indicate video presence. This receiver hub has built-in surge suppression to protect video equipment against damaging voltage spikes. Its integrated ground loop isolation prevents disturbing "hum-bars" common with long distance installations and its excellent crosstalk and noise immunity provides quality video up to the maximum distance. The Vi6116J provides RJ-45 ports for UTP connectivity to simplify VPD system installations. The innovative design of the Vi6116 offers exceptional quality video and system flexibility making it ideal for a wide variety of applications that require multiple video channels and offers a cost effective alternative to expensive fiber optic solutions.

Features

Quality video over 6,000 feet (1,830 m) of unshielded twisted pair wires

NTSC, PAL and SECAM video formats

Female BNC and terminal blocks or RJ-45 connectors

70 dB cross talk and noise immunity

Built-in ground loop immunity and surge protection

A single distance adjustment for each video channel

Compatible with qualified UTP cameras

Includes 32 coax jumper cables

Video present LED indicators for each channel
