Brand: CommScope
|
SKU:
10229140

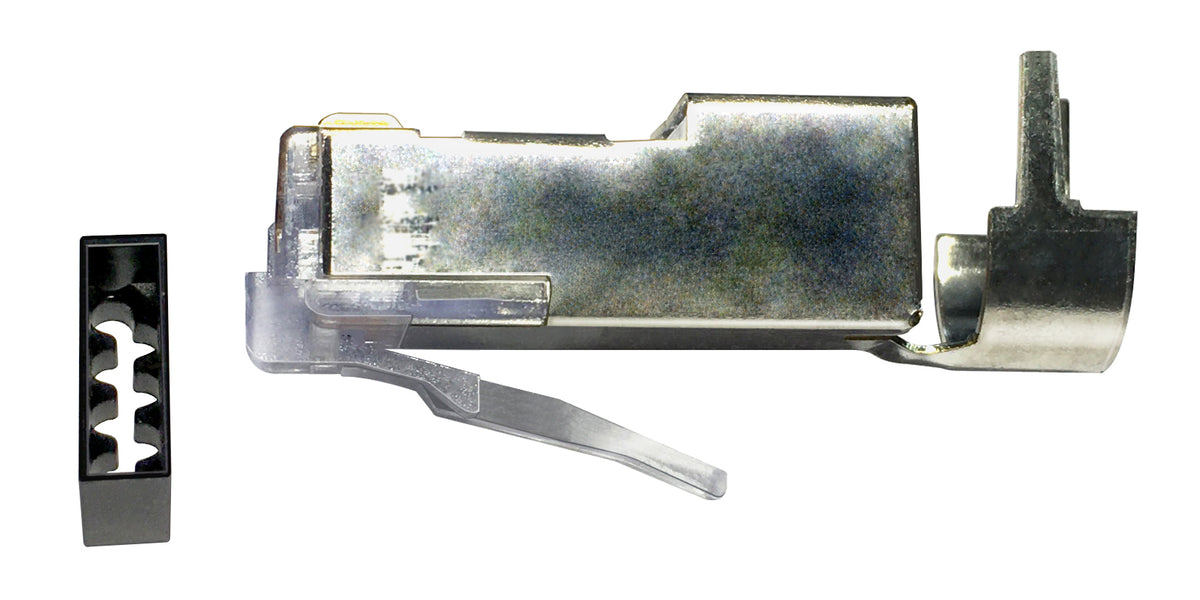

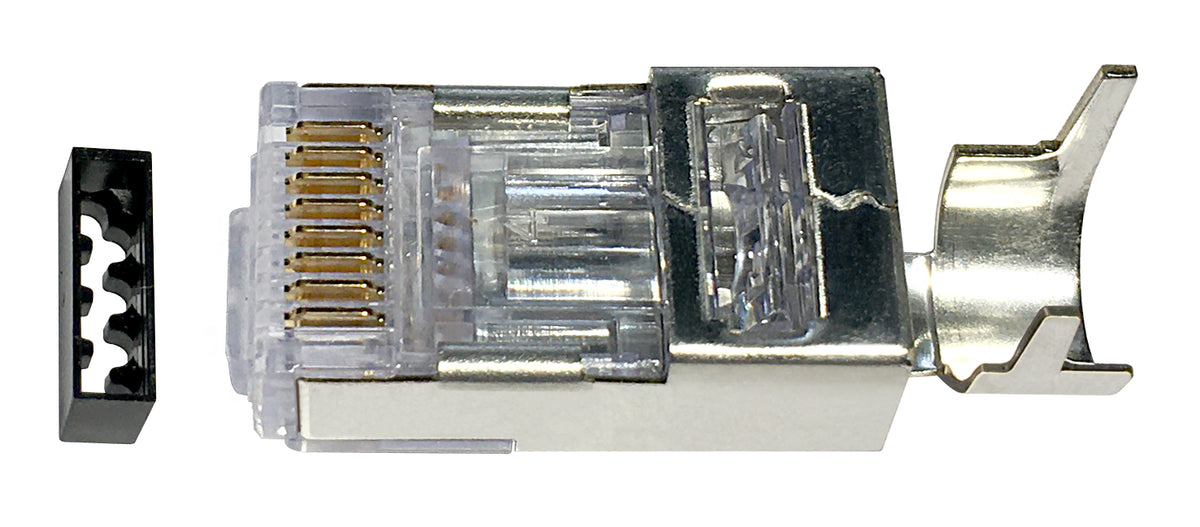

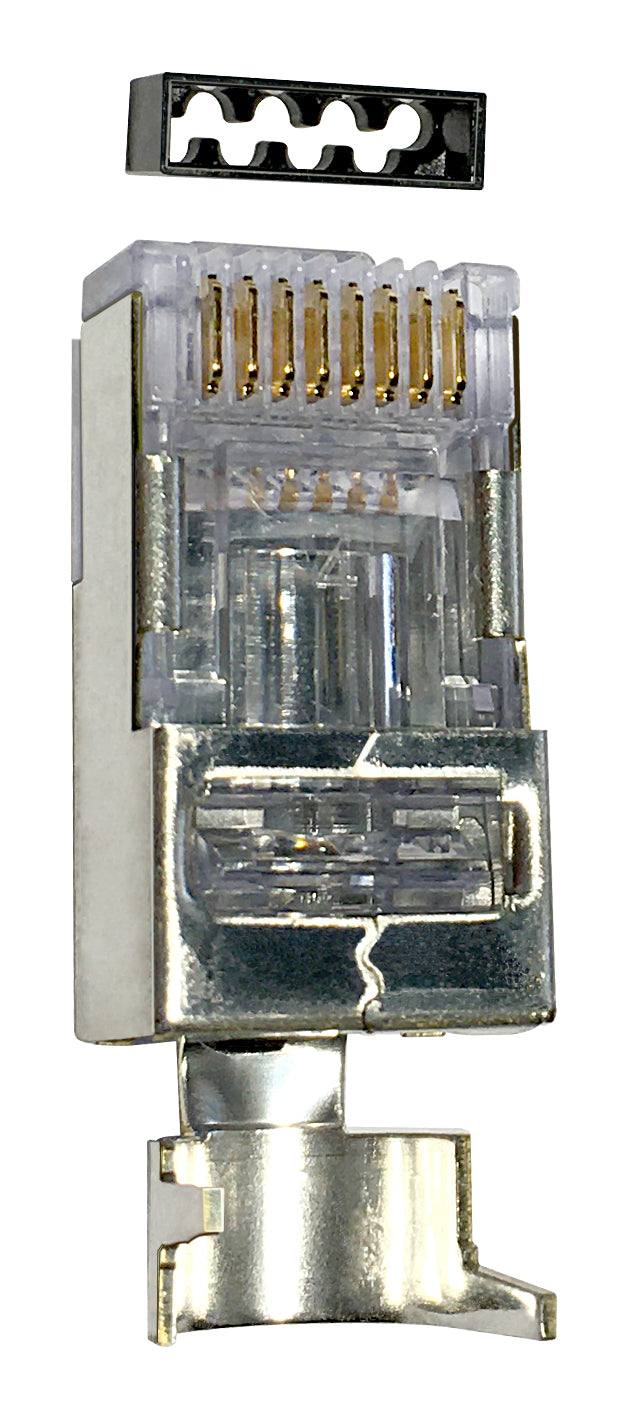

CommScope 5-1933433-3 | Modular Plug Kit, Category 6A, shielded, 8-position, 7.87 mm max cable jack OD, 100/bag
Regular price
$758.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 5-1933433-3 | Modular Plug Kit, Category 6A, shielded, 8-...
Regular price
$758.03
Unit price
Description
Description
CommScope 5-1933433-3 | Modular Plug Kit, Category 6A, shielded, 8-position, 7.87 mm max cable jack OD, 100/bag
Specifications
Specifications
CommScope - 5-1933433-3 - Product Categories
- Connectors
- RJ45 Plugs & Accessories
CommScope - 5-1933433-3 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 5-1933433-3 |
| Item Description | Modular Plug Kit, Category 6A, shielded, 8-position, 7.87 mm max cable jack OD, 100/bag |
| ANSI/TIA Category | 6A |
| Cable Type | Round, shielded |
| Conductor Type | Solid | Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 8/8 |
| Termination Type | IDC |
CommScope - 5-1933433-3 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
CommScope - 5-1933433-3 - Physical Specifications
| Dimensions | - |
|---|---|
| Compatible Cable Diameter, maximum | 7.87 mm | 0.310 in |
| Compatible Insulated Conductor Diameter, maximum | 1.22 mm | 0.048 in |
| Compatible Insulated Conductor Diameter, minimum | 1.12 mm | 0.044 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–22 AWG |
| Compatible Conductor Gauge, stranded | 26–22 AWG |
| Material Specifications | - |
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold |
| Material Type | Polycarbonate |
| Plug Shield Base Material | Brass |
| Plug Shield Plating Material | Nickel |
| Mechanical Specifications | - |
| Plug Insertion Life, minimum | 750 times |
| Environmental Specifications | - |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
| Safety Standard | UL 1863 |
| Packaging and Weights | - |
| Packaging quantity | 100 |
| Packaging Type | Bag | Box | Carton |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
