Brand: Seco-Larm Usa
|
SKU:
739149

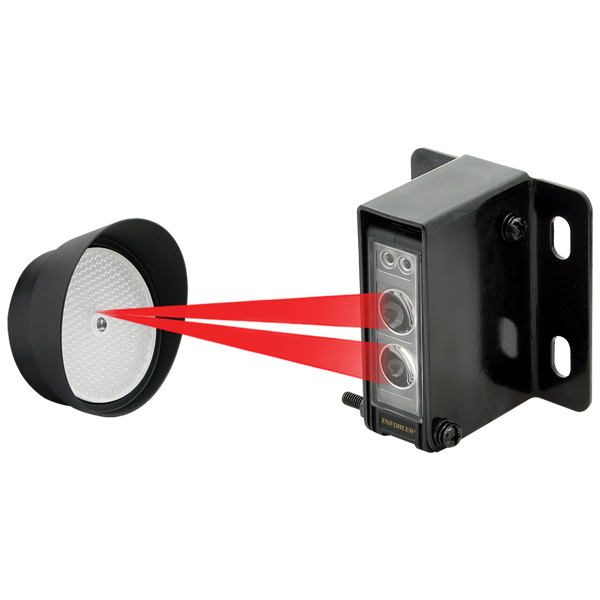

Seco-Larm E-931-S45RRQ | 45Ft Reflective Photoelectric Beam Sensor
Regular price
$96.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Seco-Larm E-931-S45RRQ | 45Ft Reflective Photoelectric Beam Sensor
Regular price
$96.61
Unit price
Description
Description
Seco-Larm E-931-S45RRQ | 45Ft Reflective Photoelectric Beam Sensor
Seco-Larm - E-931-S45RRQ - Features
- 12~250 VAC/VDC.
- Weatherproof (IP66) construction for indoor/outdoor usage.
- Includes 3-inch round reflector and hood.
- Pre-wired 6ft (2m) Cord.
- Bracket and mounting hardware included. Includes two sensor mounting brackets.
- Adjustable sensing distance and response time – 5~100ms.
- ?
- Typical Applications
- Sensor for garage doors, outdoor gates or overhead doors.
- Sensor for industrial automation to detect objects on manufacturing line.
- Entry detection for store fronts.
- Assist in measuring parking distance.
- Alarm sensor.
Specifications
Specifications
Seco-Larm - E-931-S45RRQ - Specifications
| Brand Name | Seco-Larm |
|---|---|
| Manufacturer Part Number | E-931-S45RRQ |
| Item Description | 45Ft Reflective Photoelectric Beam Sensor |
| Type | NIR Reflective |
| Current Draw | Standby- 70mA@12VDC, Active- 55mA@12VDC |
| Sensing Range | 0.5? to 45? (0.1 – 14m) |
| Operating Voltage | 12~250 VAC / VDC |
| Reaction time | 5ms~100ms adjustable |
| Light Source | IR LED |
| LEDs – Red | Trigger |
| LEDs – Yellow | Alignment |
| Output | SPDT Relay Output (NO/NC/COM) |
| Switching Capacity | 3A@120VAC / 3A@30VDC |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Enclosure | IP66 Waterproof |
| Category | Sensors |
