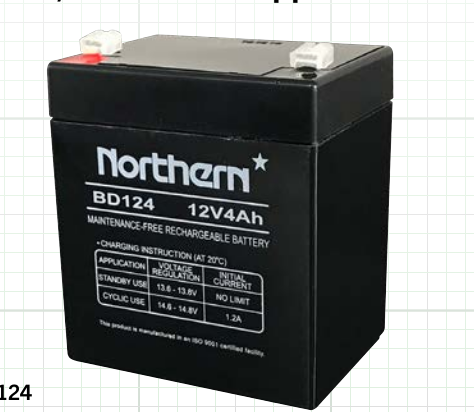

Northern SLA124 12V 4Ah Sealed Lead Battery
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Northern SLA124 12V 4Ah Sealed Lead Battery
Description
Description
Categorized under - Shop by Manufacturer/Northern | Security | Intrusion Detection | Batteries and Transformers
Non-Spillable Sealed Lead Acid Battery.12 Volt DC SLA Rechargeable Battery,for Alarm, Fire & CCTV Applications
Absorbant Glass Mat (AGM) technology for superior performance. Valve regulated,spill proof construction allows safe operation in any position. Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified. U.L. recognized under file number MH 20567.
Specifications
Specifications
Northern - BD124 - Specifications
| Nominal Voltage | 12V DC |
|---|---|
| Rated Capacity20 hour rate | 4.5Ah |
| Capacity77° F (25° C) | 20 hour rate (250mA): 4.5Ah10 hour rate (450mA): 4.25Ah5 hour rate (840mA): 4.1Ah1 hour rate (3.0mA): 3.0Ah1.5 hour discharged to 10.5V : 2.1Ah |
| InternalResistance | Fully Charged Battery 77° F(25° C): 36m? |
| Capacity affectedby Temperature(20 hour rate) | 104° F (40° C): 102%77° F (25° C):100%32° F (0° C):83%5° F (-15° C):64% |
| Self-discharge77° F (25° C) | Capacity after 3 month storage : 90%Capacity after 6 month storage:82%Capacity after 12 month storage:63% |
| Cycle Charge(Constant Voltage) | Initial Charge Current Less than 1.5AVoltage 14.5V~14.9V 77° F (25° C) |
| Stand-by Charge(Constant Voltage) | Voltage 13.6V~13.8V 77° F (25° C) |
| Total Height | 4.25 inches (108mm) |
| Height | 4.02 inches (102mm) |
| Length | 3.54inches (90mm) |
| Width | 2.76 inches (70mm) |
| Weight | Approx. 4.35 lbs (1.97Kg) |
| UNSPSC Code | 46171600 |
