HellermannTyton 156-01693 | CABLE TIE W/FIR TREE 2 PIECES 202MM L 4...
Description
Description

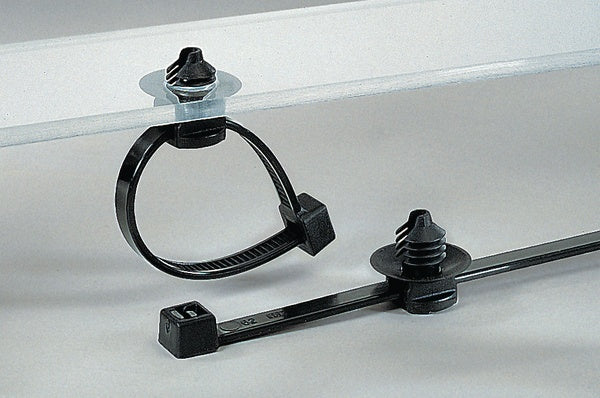

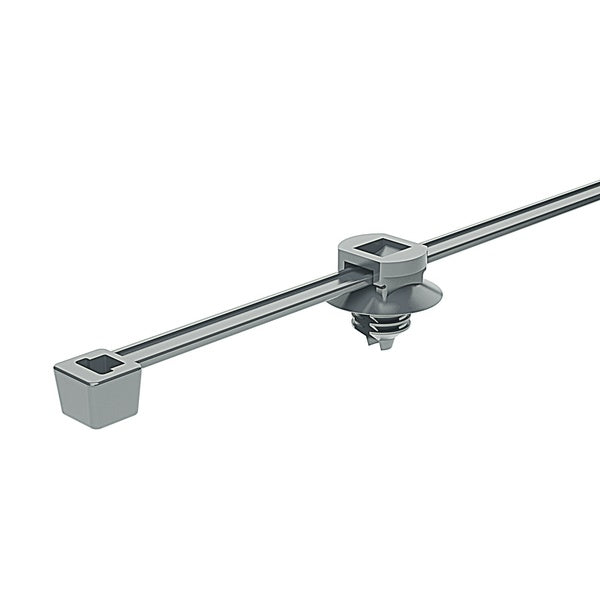

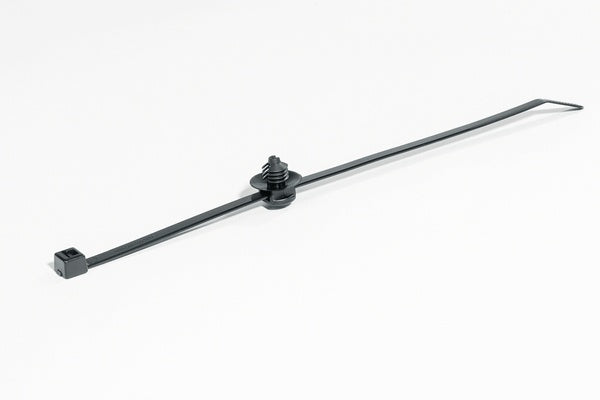

HellermannTyton's fir tree mounts provide a secure grip in a mounting hole and protect against dirt and other impurities. The mount can slide along the strap of the cable tie for proper orientation. The fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01693 - Features
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
Specifications
Specifications
HellermannTyton - 156-01693 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 156-01693 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-01693 - Base Data
| Article Number | 156-01693 |
|---|---|
| Type | T50RFT6 |
| Color | Gray (GY) |
| Quantity Per | bag |
| Short Description | 2-Piece Cable Tie/Fir Tree Mount, 8.0"L, .25 - .28" Mounting Hole Diameter, PA46, Gray, 500/pkg |
| Global Part Name | T50RFT6-PA46-GY |

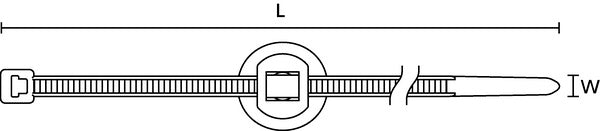

HellermannTyton - 156-01693 - Product Dimensions
| Minimum Tensile Strength (Metric) | 225 |
|---|---|
| Length L (Metric) | 202 |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.16 |
| Bundle Diameter Min (Metric) | 4 |
| Bundle Diameter Max (Imperial) | 1.77 |
| Bundle Diameter Max (Metric) | 45 |
| Thickness T (Metric) | 1.2 |
| Panel Thickness Min (Metric) | 0.75 |
| Panel Thickness Max (Metric) | 3 |
| Mounting Hole Diameter D (Metric) | 6.4 - 7.1 mm |
| Mounting Hole Diameter D Max (Metric) | 7.1 |
| Disc Diameter (Metric) | 16 |
HellermannTyton - 156-01693 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01693 - Materials & Specifications
| Material | Polyamide 4.6 (PA46) |
|---|---|
| Material Shortcut | PA46 |
| Material Cable Tie | Polyamide 4.6 (PA46) |
| Flammability | UL 94 V-2 |
| Operating Temperature | -40°F to +302°F (-40°C to +150°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
