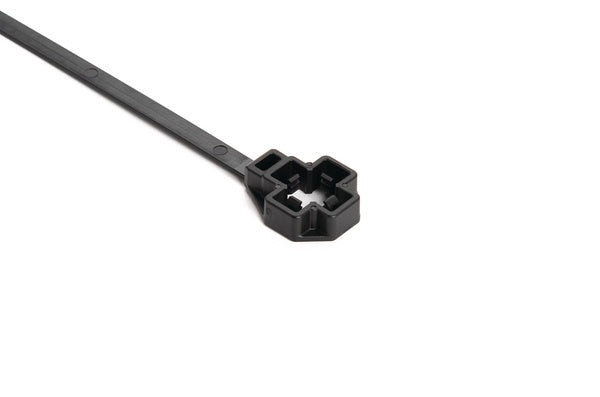

HellermannTyton 157-00342 | Low Profile M10 Stud Mount Tie, 7.5" Tie, 80Lb Tensile Strength, Pa66Hirhsuv, Black, 2500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00342 | Low Profile M10 Stud Mount Tie, 7.5&quo...
Description
Description

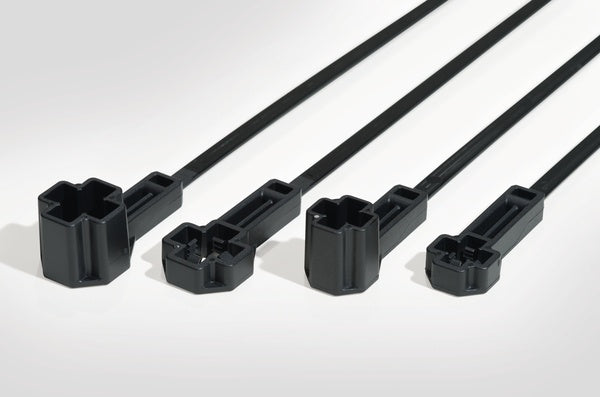

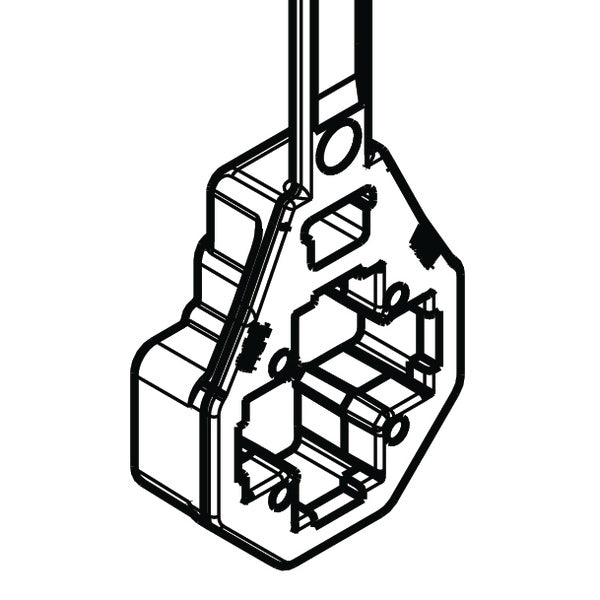

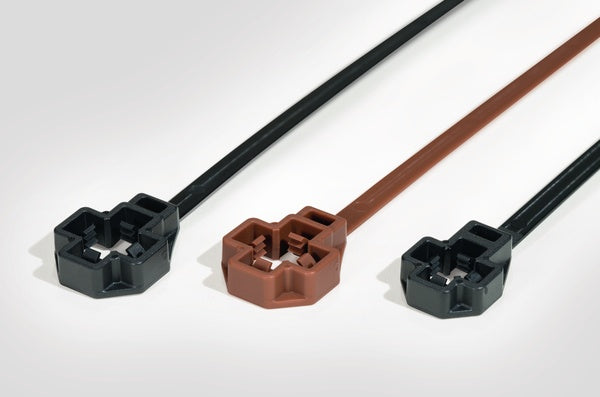

Mount features a low-profile head, allowing multiple tie mounts to be stacked on a single bolt and providing space savings in tight areas. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal com bination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
One-piece mounting ties offer a complete solution by both bundling cable and at the same time providing a mounting solution. HellermannTyton’s one-piece mounting ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00342 - Features
- Low-profile head allows mounts to stack, providing more mounting versatility from a single stud.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
- PA46 material option allows use in high-heat applications.
- One-piece design allows installers to mount and bundle wire or cables single-handedly.
- Fastener delivers high extraction force for reliable performance, yet it’s easy to install.
- Can be unscrewed or extracted from threaded holes for easy removal and re-usability.
Specifications
Specifications
HellermannTyton - 157-00342 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 157-00342 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00342 - Base Data
| Article Number | 157-00342 |
|---|---|
| Type | T80ROSLPSB10U |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Low Profile M10 Stud Mount Tie, 7.5" Tie, 80lb Tensile Strength, PA66HIRHSUV, Black, 2500/pkg |
| Global Part Name | T80ROSLPSB10U-PA66HIRHSUV-BK |
HellermannTyton - 157-00342 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 80 |
|---|---|
| Minimum Tensile Strength (Metric) | 355 |
| Length L (Imperial) | 8.5 |
| Length L (Metric) | 215.9 |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.82 |
| Width W (Metric) | 20.8 |
| Bundle Diameter Min (Imperial) | 0.14 |
| Bundle Diameter Min (Metric) | 3.5 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Cable Ties | 157-00342 |
| Height H (Imperial) | 0.28 |
| Height H (Metric) | 7 |
| Mounting Hole Diameter D (Imperial) | 0.39" x 0.06 |
| Mounting Hole Diameter D (Metric) | M10 x 1.50 |
| Stud Diameter (Metric) | 10.0 mm |
| Stud Diamater (Imperial) | 0.39 |
HellermannTyton - 157-00342 - Logistic & Packaging
| Package Quantity (Imperial) | 2500 |
|---|---|
| Package Quantity (Metric) | 2500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00342 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
