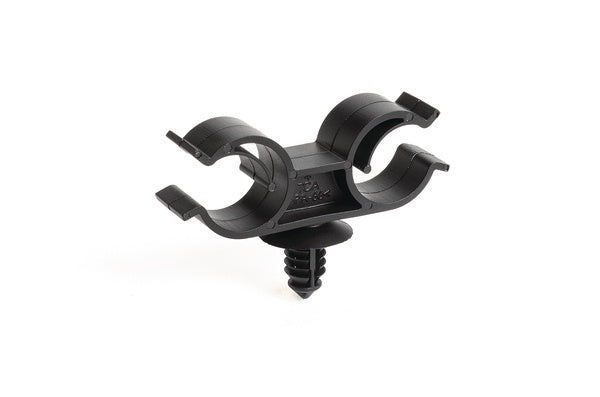

HellermannTyton 151-01310 | Dual FT6 Docking Clip, 12-15mm with 6.5mm Fir Tree, PA66HIRHSUV, Black, 2000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-01310 | Dual FT6 Docking Clip, 12-15mm with 6.5...
Description
Description
HellermannTyton connector clips for oval holes are mounted simply by pushing them onto the corresponding clip. The clips provide a wide range of mounting options with anti-rattle and anti-rotation features. The fir tree locks into place when inserted i nto the hole palpably and ensures a secure fixing at all times. Dual routing clip provides a secure fit for two routings between 12 - 15 mm diameter.
HellermannTyton connector clips for oval holes are mounted simply by pushing them onto the corresponding clip. The clips provide a wide range of mounting options with anti-rattle and anti-rotation features. The fir tree locks into place when inserted into the hole palpably and ensures a secure fixing at all times. Dual routing clip provides a secure fit for two routings between 12 - 15 mm diameter.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01310 - Features
- Fir Tree demonstrates easy insertion with high extraction resistance in 6.5 +/- 0.4 mm hole.
- C-clip design allows for multiple uses, from hoses and tubes to harnesses and cables.
- The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
Specifications
Specifications
HellermannTyton - 151-01310 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Fir Tree Clips
HellermannTyton - 151-01310 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | Yes |
| Heat Shrink | No Is Not Shrink Tubing |
| Spiral Wrap | No |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-01310 - Base Data
| Article Number | 151-01310 |
|---|---|
| Type | DUALFT6DOCK |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Dual FT6 Docking Clip, 12-15mm with 6.5mm Fir Tree, PA66HIRHSUV, Black, 2000/pkg |
| Global Part Name | DUALFT6DOCK-PA66HIRHSUV-BK |
HellermannTyton - 151-01310 - Product Dimensions
| Length L (Imperial) | 2.04 |
|---|---|
| Length L (Metric) | 51.8 |
| Fixation Method | Fir Tree |
| Width W (Imperial) | 0.66 |
| Width W (Metric) | 16.66 |
| Bundle Diameter Min (Metric) | 15.5 |
| Bundle Diameter Max (Metric) | 15.5 |
| Height H (Imperial) | 1.36 |
| Height H (Metric) | 34.63 |
| Nominal Diameter (Metric) | 15.5 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.24 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 6 |
| Mounting Hole Diameter D (Imperial) | 0.26 |
| Mounting Hole Diameter D (Metric) | 6.5 mm |
| Mounting Hole Diameter D Max (Metric) | 6.9 |
HellermannTyton - 151-01310 - Logistic & Packaging
| Package Quantity (Imperial) | 2000 |
|---|---|
| Package Quantity (Metric) | 2000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01310 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
