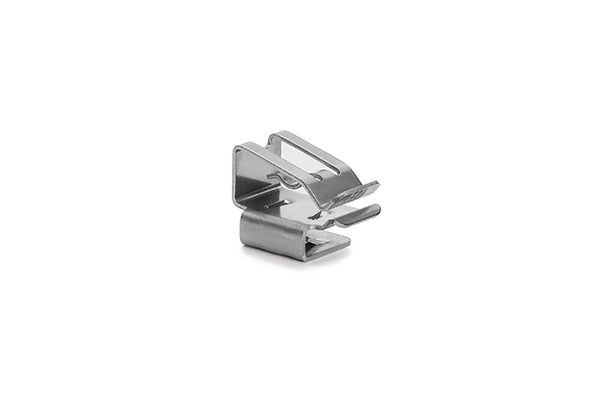

HellermannTyton 151-02291 | Low Profile 90 Metal Edge Clip, 1.5-2.0mm Panel Thickness, 6-6.2mm Cable Range, SS304, 5000/box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-02291 | Low Profile 90 Metal Edge Clip, 1.5-2.0...
Description
Description

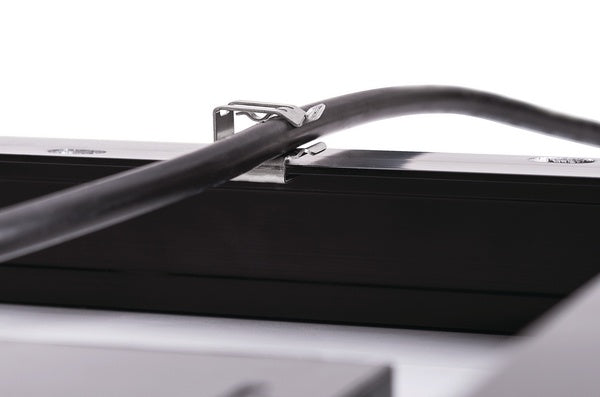

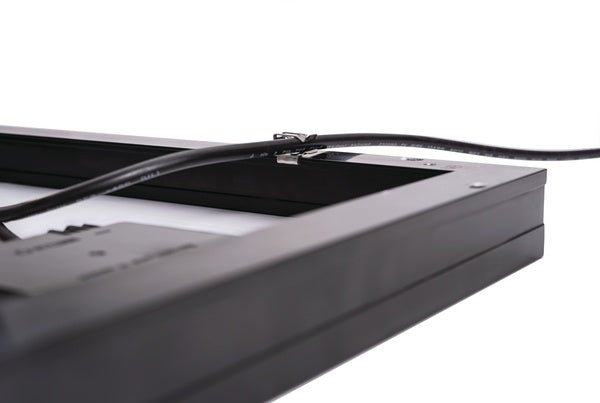

HellermannTyton’s 90-Degree Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, this edge clip also has a high extraction force. The 9 0-degree configuration secures cables to a panel in a perpendicular orientation. Metal construction tolerates extreme environments, and a low-profile design allows the clip to be installed on a wide variety of module edges.
HellermannTyton's 90-Degree Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, this edge clip also has a high extraction force. The 90-degree configuration secures cables to a panel in a perpendicular orientation. Metal construction tolerates extreme environments, and a low-profile design allows the clip to be installed on a wide variety of module edges.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02291 - Features
- Integrated design allows for easy insertion by hand.
- 1.5-2mm panel thickness range allows for multiple applications.
- Double-compression design that accommodates various sizes of wire and cable.
- Presents a high extraction force for withstanding extremeconditions.
- TagPrint Pro 4.0 runs on Windows 7, 8.1 and 10, allowing full compatibility and error-free operation with the most widely used systems.
- Print automation allows one-step printing of label jobs – even multi-label groups – to one or more printers simultaneously.
- Visual preview allows users to see label designs before opening them.
- Single-user and network-user versions accommodate the needs of any size operation.
- Select saved labels visually or by part number.
- Convert existing XMT files to the TagPrint data table.
- Allows devmode printing to the TT4030 thermal transfer printer, for the ultimate in printer control.
- Includes pre-saved designs for all common ANSI/OSHA compliant safety labels and pre-made solar installation labels.
Specifications
Specifications
HellermannTyton - 151-02291 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Edge Clips
HellermannTyton - 151-02291 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Material | Plastic |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02291 - Base Data
| Article Number | 151-02291 |
|---|---|
| Type | MSC90 |
| Color | Metal (ML) |
| Quantity Per | box |
| Short Description | Low Profile 90° Metal Edge Clip, 1.5–2.0mm Panel Thickness, 6–6.2mm Cable Range, SS304, 5000/box |
| Global Part Name | MSC90-SS304-ML |
HellermannTyton - 151-02291 - Product Dimensions
| Length L (Imperial) | 0.73 |
|---|---|
| Length L (Metric) | 18.44 |
| Width W (Imperial) | 0.46 |
| Width W (Metric) | 11.57 |
| Bundle Diameter Min (Imperial) | 0.161 |
| Bundle Diameter Min (Metric) | 4.1 |
| Bundle Diameter Max (Imperial) | 0.276 |
| Bundle Diameter Max (Metric) | 7 |
| Depth D (Imperial) | 0.445 |
| Depth D (Metric) | 11.303 |
| Panel Thickness Min (Imperial) | 0.06 |
| Panel Thickness Max (Imperial) | 0.078 |
| Panel Thickness Min (Metric) | 1.5 |
| Panel Thickness Max (Metric) | 2 |
HellermannTyton - 151-02291 - Logistic & Packaging
| Package Quantity (Imperial) | 5000 |
|---|---|
| Package Quantity (Metric) | 5000 |
| Customs Number | 7.33E+09 |
HellermannTyton - 151-02291 - Materials & Specifications
| Material | Stainless Steel (SS304) |
|---|---|
| Material Shortcut | SS304 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -112°F to +1000°F (-80°C to +538°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Listed (US) | Yes |
