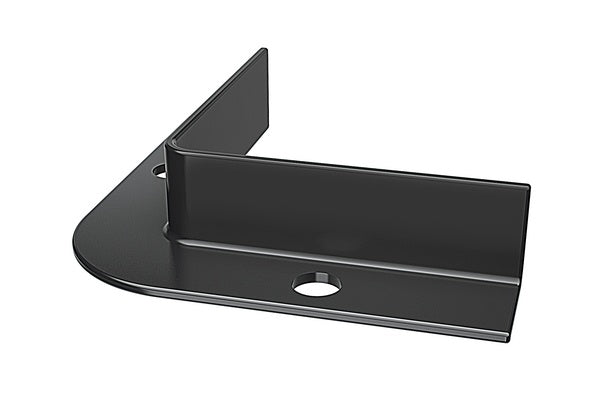

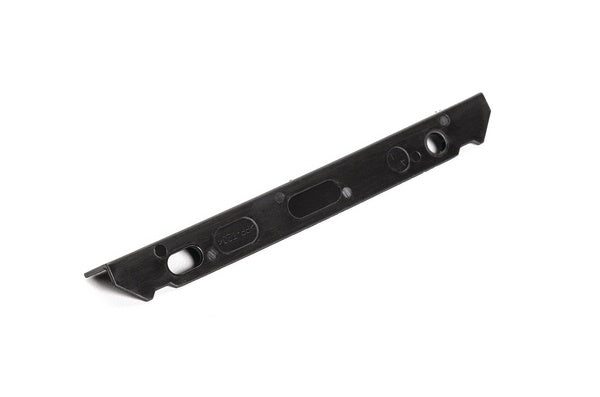

HellermannTyton 151-02655 | Mini-Channel, 3.53" Long, 45 Degre...
Description
Description
The Mini Channel family provides a cost-effective, protective, configurable routing solution. Pieces are modular and interchangeable, allowing extensive customization. Mini Channels replace engineered channels that are costly to design and develop.
HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-02655 - Features
- Angled channel allows specific guidance around corners or obstructions.
- U-Shape channel provides three sides of protection for wire or bundle.
- High-quality polypropylene material with high heat resistance.
- Protects against abrasion and other environmetal factors.
Specifications
Specifications
HellermannTyton - 151-02655 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-02655 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Not Declared |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-02655 - Base Data
| Article Number | 151-02655 |
|---|---|
| Type | 150STRTCHNL |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Mini Channel, 5.9" Long, 180° Angle, Straight, PPT20, Black, 500/pkg |
| Global Part Name | 150STRTCHNL-PPTD20-BK |
HellermannTyton - 151-02655 - Product Dimensions
| Length L (Imperial) | 5.9 |
|---|---|
| Length L (Metric) | 150 |
| Width W (Imperial) | 0.06 |
| Width W (Metric) | 1.5 |
| Height H (Imperial) | 0.6 |
| Height H (Metric) | 15 |
| Mounting Hole Diameter D (Imperial) | 0.24 " - 0.27 |
| Mounting Hole Diameter D (Metric) | 6.2 - 6.8 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.26 |
| Mounting Hole Diameter D Max (Metric) | 6.65 |
HellermannTyton - 151-02655 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-02655 - Materials & Specifications
| Material | Polypropylene 20% Talkum (PPTD20) |
|---|---|
| Material Shortcut | PPTD20 |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +149°F (-40°C to +65°C) |
| Reach Compliant (Article 33) | No |
