Brand: Servertech | SKU: 542165

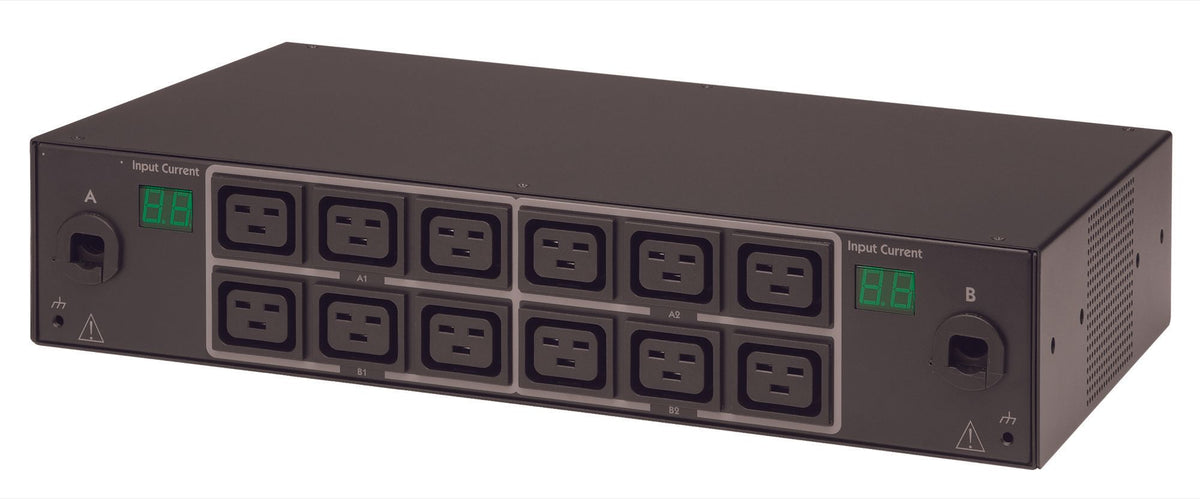

Servertech CS-12HD2C454A3 | Smart CDU With Pips (Per Inlet Power Sensing), 2U, 12 X Iec C19 Outlets, 2 X Led Amp Meters, (2) 208V 30A Inputs With 2 X L6-30P Connectors

$1,723.11

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Servertech CS-12HD2C454A3 | Smart CDU With Pips (Per Inlet Power Sensing), 2U, 12 X Iec C19 Outlets, 2 X Led Amp Meters, (2) 208V 30A Inputs With 2 X L6-30P Connectors

The Server Technology Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides accurate measurement of current (billing-grade), voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Smart "Master" PDU can be connected to a Smart "Link" PDU to extend the network access to the redundant or secondary power feed.

Servertech - CS-12HD2C454A3 - Features

(12) C19 outlets
Network Monitoring
Linkable Expansion
Temperature/Humidity Monitoring
Auto-Flip Current Display
Per-Inlet Power Sensing
Branch Circut Protection
High Retension Locking Outlets
Color Identification
Cisco Energywise Compliant
Network Monitoring
The PRO2 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Linkable Expansion
Connect an Expansion PDU to a Master PDU for power monitoring of separate power circuits from a single IP address.
Temperature/Humidity Monitoring
Master and Link (select products) units each support two external 10ft (3m) T/H probes. Receive SNMP-based alerts and email notifications.
Auto-Flip Current Display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.

Specifications

Servertech - CS-12HD2C454A3 - Specifications

Number of Outlets	12
Type	RACK MOUNT PDU
UNSPSC Code	39121017
Input Power Capacity (kW):	10.0
Input Plug Type:	NEMA L6-30P
Input Current (A):	30
Input Current Rated (A):	24
Input Nominal Voltage (V):	208
Input Phase:	1-Phase (L-L)
Input Cord Location:	Horizontal
Outlet Form Factor:	Conventional
Total Outlets:	12
IEC C19 Count:	12
Utility Outlet:	0
Branch Monitoring:	None
Branch Overcurrent Protection:	5 kAIC
Branch Overcurrent Protection Type:	Circuit Breaker: 2-pole
Dual Input:	Yes
High Retention Outlets:	Yes
Input Current Display:	Auto-Orient
Input Monitoring:	PIPS
Locking Outlets:	Yes
Max Operating Temperature:	40 °C
Fast Movers:	No
Mounting:	2U Horizontal
Outlet Monitoring:	None
Power Pivot Input:	No
Product Height (inch):	3.5
Product Height (mm):	89
Product Max Depth (inch):	10.0
Product Max Depth (mm):	254
Product Nominal Depth (inch):	10.0
Product Nominal Depth (mm):	254
Product Width (inch):	17.2
Product Width (mm):	437
