Brand: Belden | SKU: B8777-100

Belden 8777 060100 | Audio Control and Instrument Cable, Tinned Copper, 3-Pair, 6-Conductor, 22 AWG, 30/300V, Chrome, 100 ft.

$7.08

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

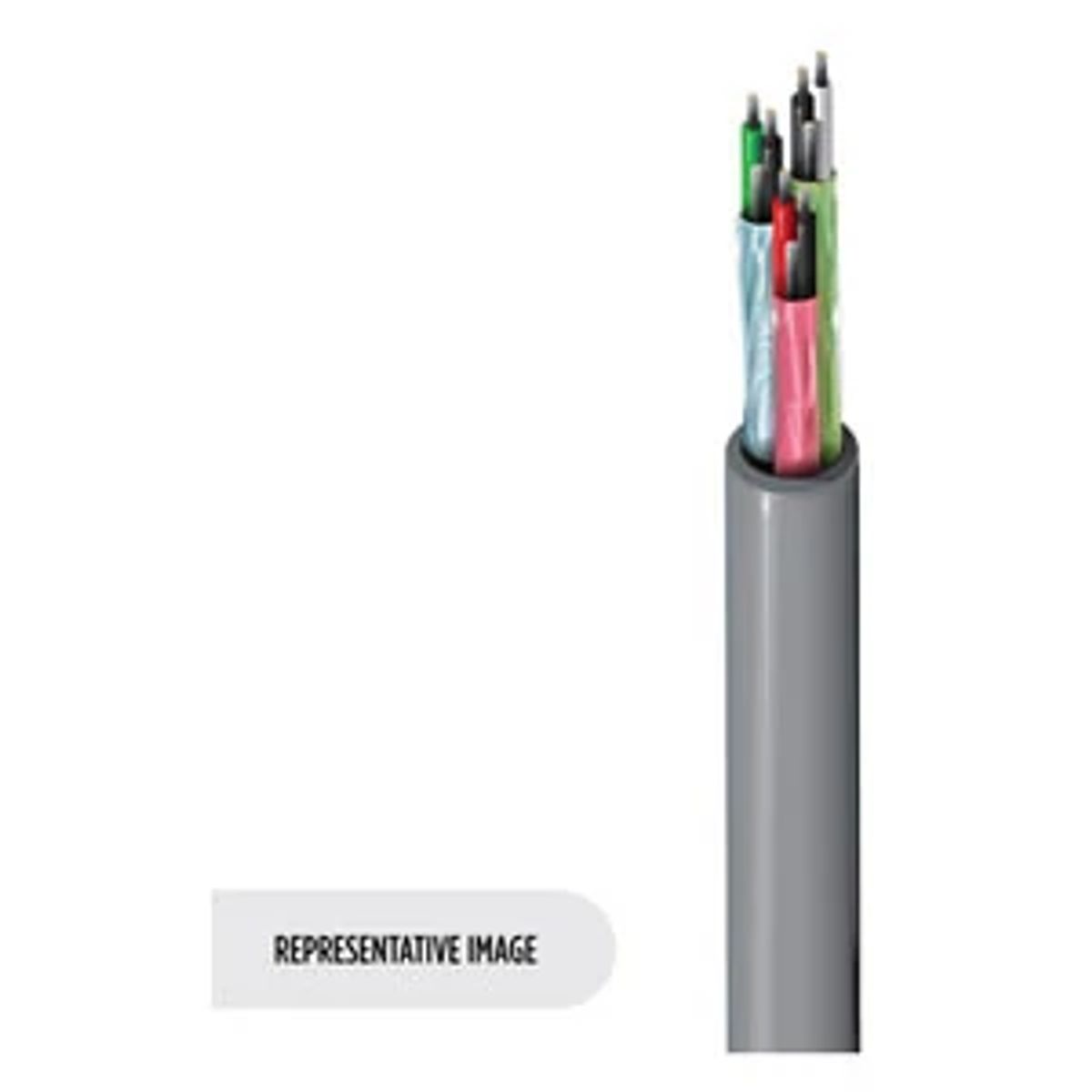

Belden ENT 8777 060100 | Audio Control and Instrument Cable, Tinned Copper, 3-Pair, 6-Conductor, 22 AWG, 30/300V, Chrome, 100 ft.

Specifications

Standards

NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: 2919 (30 V 80°C)
CPR Euroclass: Eca

Environmental Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes

Suitability

Suitability - Hazardous Locations: Yes
Suitability - Indoor: Yes

Flammability

UL Flammability: UL1685 UL Loading
CSA Flammability: FT1
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS (CM)

Additional Specifications

ECCN	EAR99
Country of Origin	US - United States
UNSPSC	26121600
Length	100 ft.
Cable Type	Non-Plenum
Conductor Size	22 AWG
Conductor Material	Tinned Copper
Jacket Material	PVC
Insulation Material	Polypropylene
No. of Conductors	6
Shielded	Aluminum/Poly Tape

Documents and Downloads

Belden ENT 8777 060100 Data Sheet
