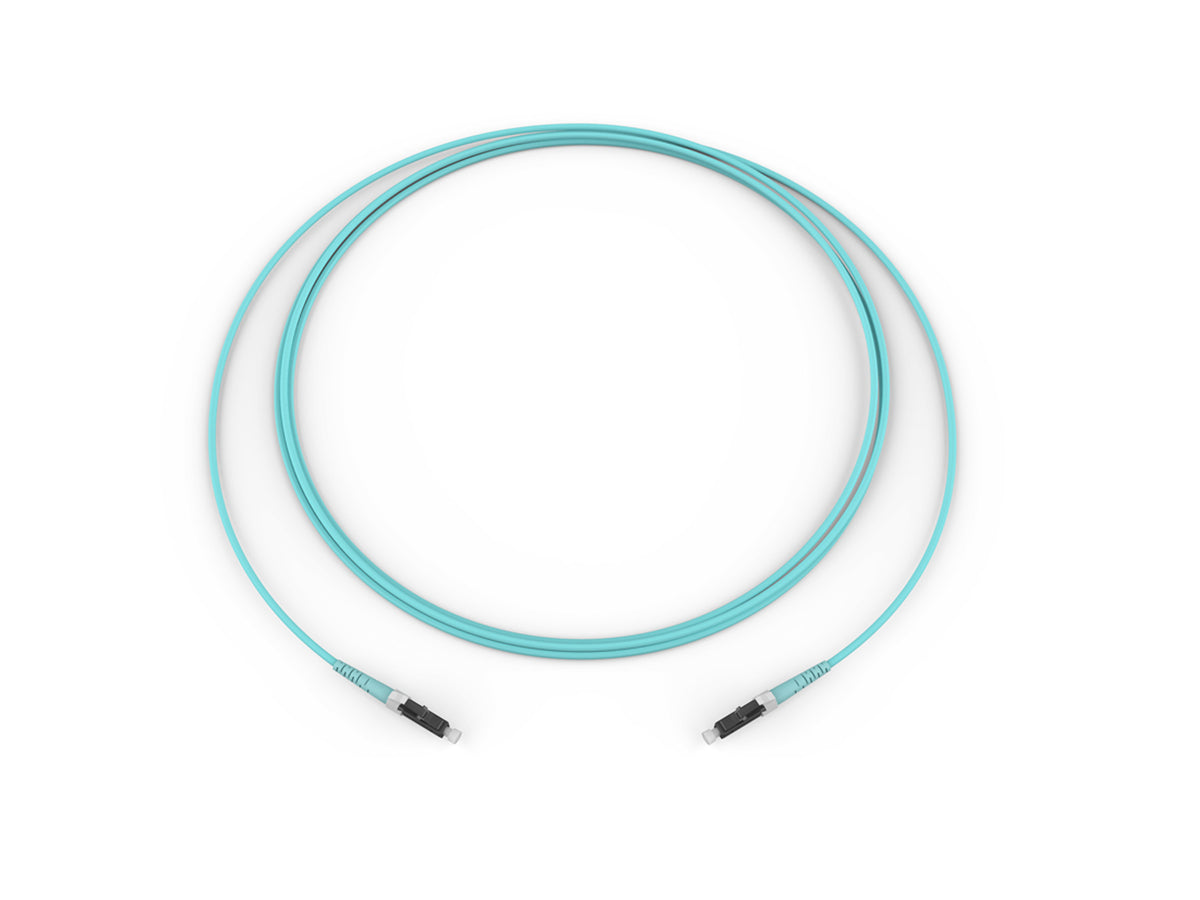

Corning 030301T2180002M | Fiber Optic Jumper, 1 F, LC to LC, Tight-Buffered Cable, Riser, 2.0 mm
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 030301T2180002M | Fiber Optic Jumper, 1 F, LC to LC, Tight-...
Description
Description
Simplex cable assemblies are offered with a variety of connector combinations. Connector options include LC, SC, FC and ST Compatible. RoHS compliant cables with riser-rated jackets are available in 3.0 mm, 2.0 mm, 1.6 mm and 900 µm.
Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.
Many of our fiber optic cable assemblies are highly configurable. If you don’t see what you are looking for here, please review the ordering matrix contained in the family spec sheet, or contact Customer Care at 1-800-743-2675.
Corning - 030301T2180002M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 030301T2180002M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- DataComm
- Patch Cables
- Fiber Patch Cables
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Simplex Indoor Cable Assemblies
Corning - 030301T2180002M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 030301T2180002M |
| EAN Code | 4056418603575 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | Single fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Aqua |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |

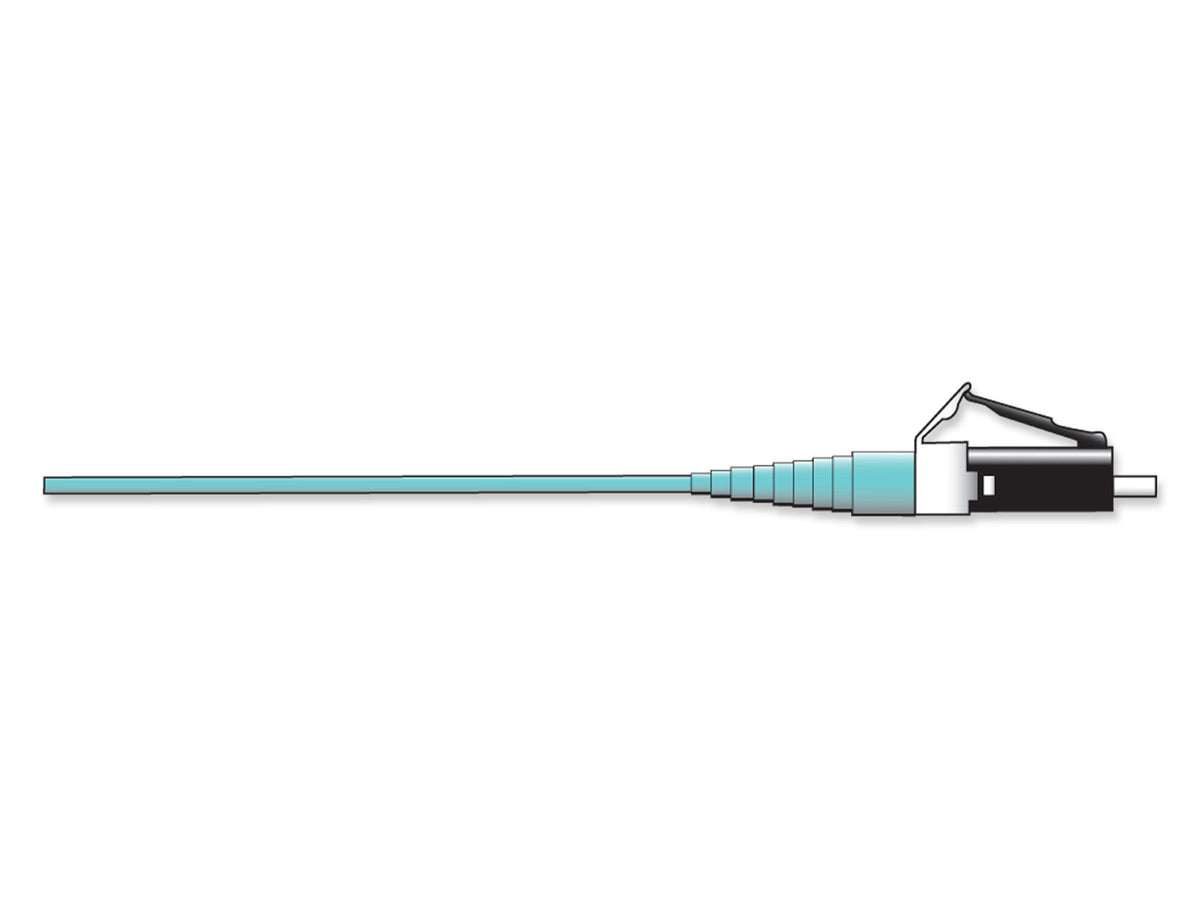

| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Connector Type | LC - LC |
| Fiber Type | OM3 |
| Length | 2 M | 6.56 FT. |
| Number of Fibers | 1 FIBER |
| Type | PATCH CORDS |
| UNSPSC Code | 26121650 |
