Brand: Corning
|
SKU:
1005401

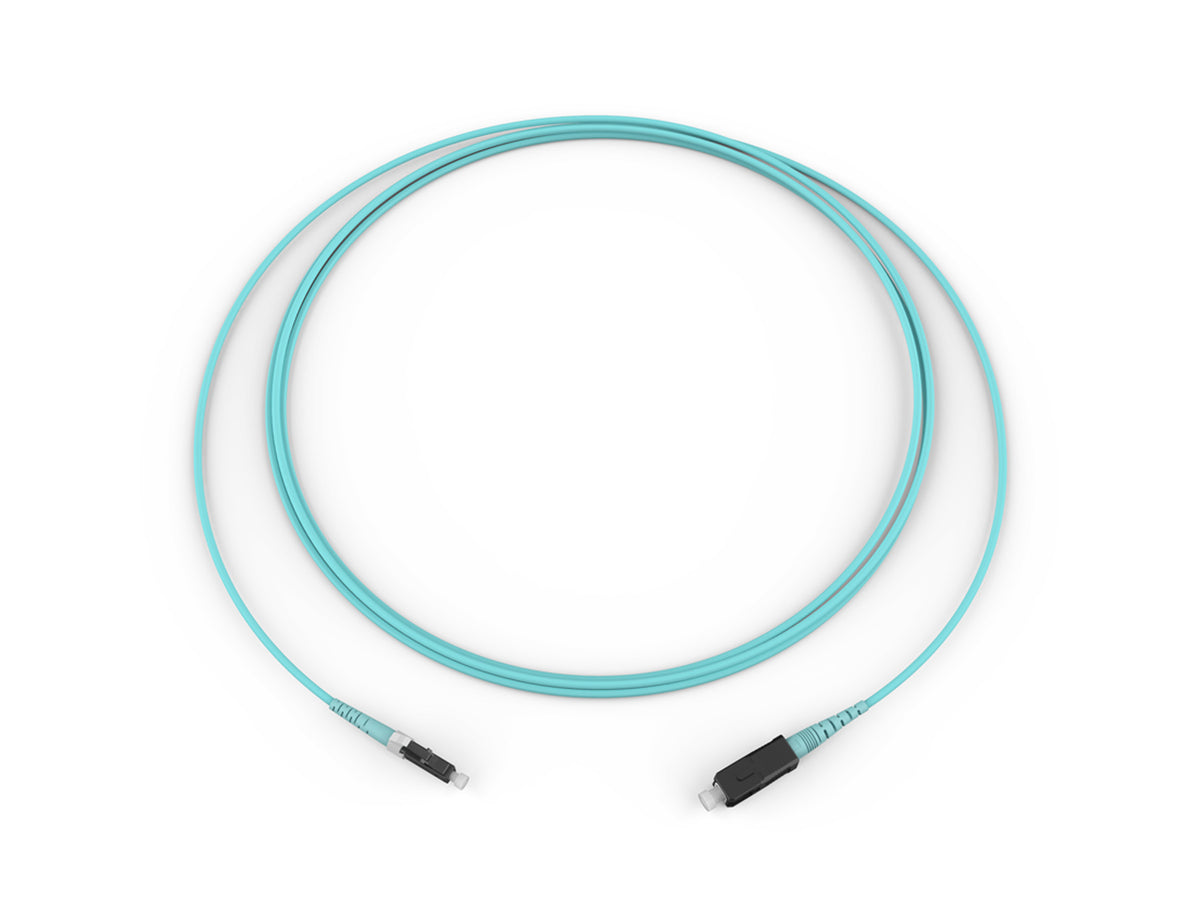

Corning 033901T2180002M | Fiber Optic Jumper, 1 F, LC to SC, Tight-Buffered Cable, Riser, 2.0 mm
Regular price
$28.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 033901T2180002M | Fiber Optic Jumper, 1 F, LC to SC, Tight-...
Regular price
$28.57
Unit price
Description
Description
Corning 033901T2180002M | Fiber Optic Jumper, 1 F, LC to SC, Tight-Buffered Cable, Riser, 2.0 mm Standard LC Simplex MM / Standard SC Simplex MM, OM3 50um, 1F, Single Fiber Riser, Standard Aqua Jacket 2 Meters
Corning - 033901T2180002M - Features
- Flame-retardant jacket
- Rugged and durable
- Superior Performance Testing
- Every termination is tested to ensure the highest in network performance
- State-Of-The-Art Manufacturing Processes
- Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
- Corning advantage
- Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Specifications
Specifications
Corning - 033901T2180002M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
- Simplex Indoor Cable Assemblies
Corning - 033901T2180002M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 033901T2180002M |
| EAN Code | 4056418603766 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | Single fiber |
| Application | General Building Applications, Vertical Riser |
| Cable Type | Tight-Buffered |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 1 |
| Outer Jacket Color | Aqua |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |

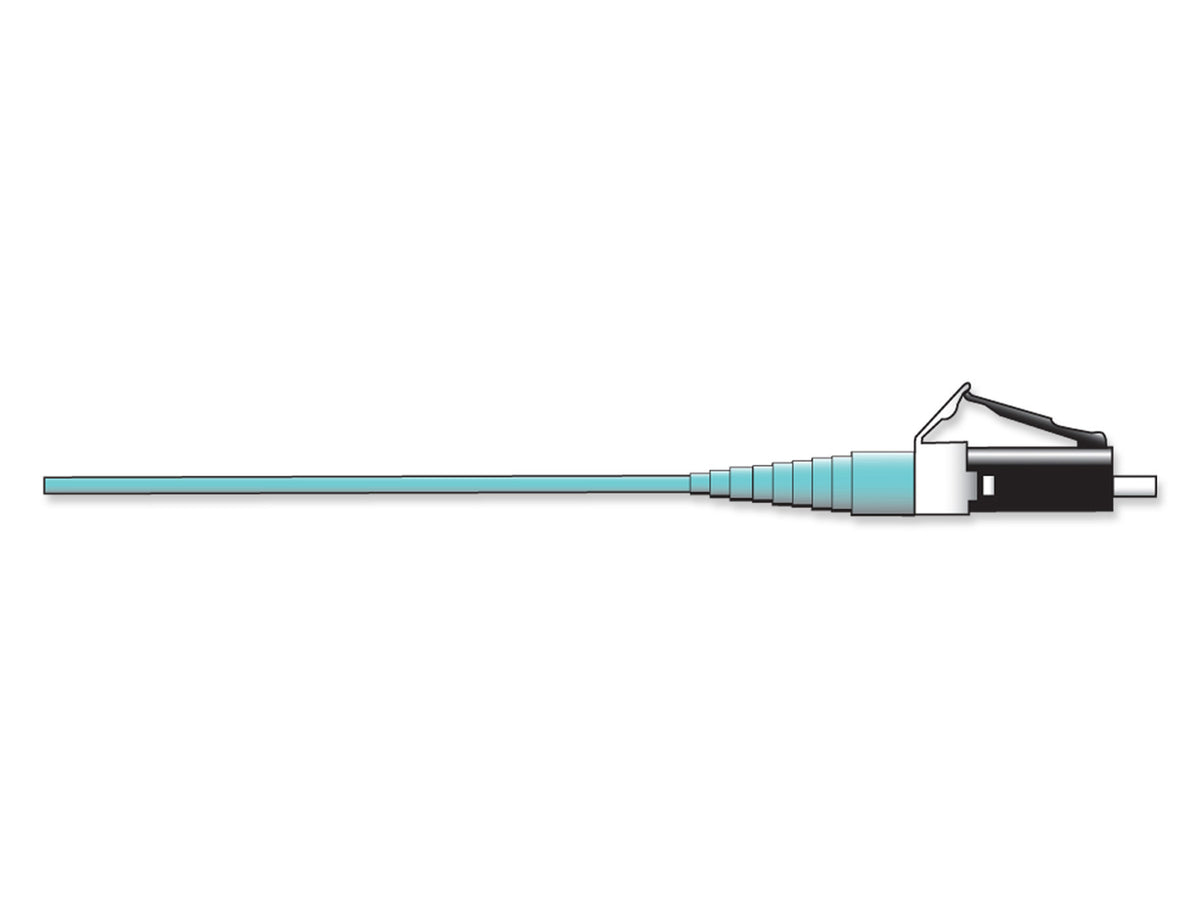

| Connector Type | LC |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | SC |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Connector Type | LC - SC |
| Fiber Type | OM3 |
| Length | 2 M | 6.56 FT. |
| Number of Fibers | 1 FIBER |
| Type | PATCH CORDS |
| UNSPSC Code | 26121650 |
