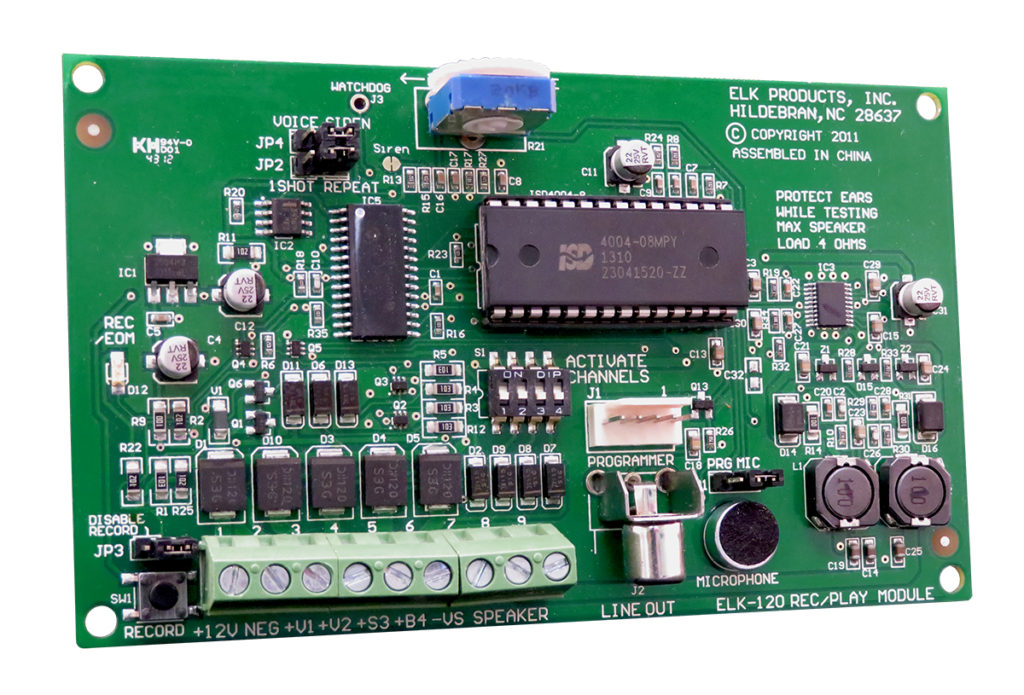

Elk Products Inc. ELK-120 | 4-Channel Recordable Voice and Siren Driver

Elk Products Inc. - ELK-120 - Features

• Four Channels Configurable as: Two Siren and Two Recordable Voice OR Four Recordable Voice
• Maximum record time is 8 minutes divided between the number of voice channels
• Siren Sounds: Classic Yelp Siren, Temporal Coded Horn, and Pulsing Industrial HornÔTemporal Coded Horn meets ANSI standard for Audible Emergency Evacuation Signaling
• Recordings stored in non-volatile memory
• Voice channels accept momentary triggers
• One Shot or Continuous voice playback settings
• Option to trigger +V1 and or +S3 chaels from a steady or pulsing input (ComboTrigger)
• Built-in condenser microphone for recording
• Adjustable speaker volume and current draw
• Powerful 24 watt audio amplifier for Speakers
• Line Level Output Jack for Paging Systems and Amplifiers
• PC sound d interface connector
• Lifetime Limited Warranty
• Siren Sounds: Classic Yelp Siren, Temporal Coded Horn, and Steady Industrial Horn
• Temporal Coded Horn meets ANSI standard for Audible Emergency Evacuation Signaling
• Option to trigger +V1 and or +S3 channels from a steady or pulsing input (ComboTrigger)
• Operating Voltage 11 to 14 Volts DC
• Current Draw .2 to 2 Amps, (depends on volume setting & speaker load)
• Sound Level 120 db @ 1 meter, 14 vdc, with one 8 ohm speaker
• Max. Speaker Loading 4 Ohms
• Max. Message Length 2 min. per channel in voice mode or 4 min. per 2 channels in siren mode
• Pulsing Input 1/2 to 2 Second Pulse, 50% duty cycle
• Size 3" x 5" x 1.25" (76 x 127 x 32mm)
