Brand: Hoffman
|
SKU:
366685

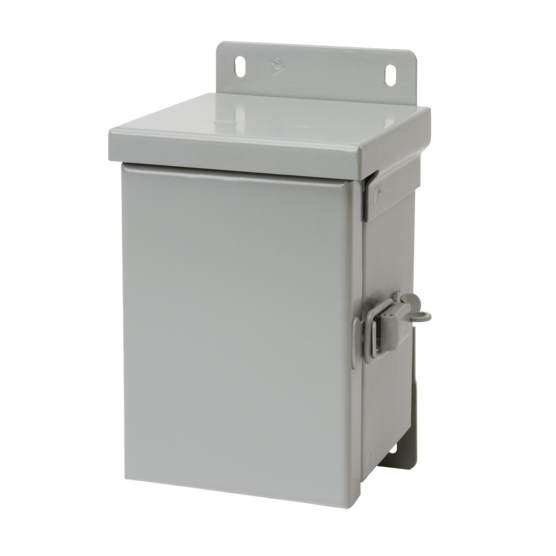

Hoffman A6R44HCR | Hinge-Cover, Small, Type 3R, 6.00x4.00x4.00, Steel
Regular price
$113.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman A6R44HCR | Hinge-Cover, Small, Type 3R, 6.00x4.00x4.00, Steel
Regular price
$113.74
Unit price
Description
Description
Small Drip-Shield Hinged-Cover, Type 3R protects wiring and other electrical components in outdoor applications that require protection from rain, sleet, snow or dripping water. It offers the flexibility of securing enclosure with an optional padlock in its draw-pull catch and weldnuts for optional panel mounting. These enclosures have a size range of 6 x 4 x 4-in. to 12 x 12 x 10-in.
Purchase panels separately.
Main Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Plated steel hinge has stainless steel pin
- Weldnuts provided for mounting optional panels
- Provisions for padlocking on zinc-plated draw-pull catch
- Knockouts on bottom of enclosure
- No gasketing
Specifications
Specifications
Industry Standards
- UL 50, 50E Listed; Type 3R; File No. E27567
- cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567
- NEMA/EEMAC Type 3R
- IEC 60529, IP32
Specifications
| Height | 6 in / 152 mm |
|---|---|
| Width | 4 in / 102 mm |
| Depth | 4 in / 102 mm |
| Protection Rating | NEMA Type 3R; IP32 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 16 ga / 1.52 mm |
| Panel Size | 4.25 x 2.25 in / 108 x 57 mm |
| Overall Dimensions | 8.00 x 4.81 in / 203 x 122 mm |
| Mounting | 7 in / 178 mm |
| BULLETIN NUMBER | A3SM |
Documents and Downloads
Documents and Downloads
- Hoffman A6R44HCR Data Sheet
- Hoffman A6R44HCR Declaration of Conformity, CSA Type 12
- Hoffman A6R44HCR CE-00010
- Hoffman A6R44HCR CERT-00070
- Hoffman A6R44HCR Hinge-Cover, Small, Type 3R Instruction Manual
- Hoffman A6R44HCR Single-Sided Shelf Repainting Instructions
- Hoffman A6R44HCR Current Transformer Cabinets, 400-800 Amp, Type 3R Instruction Manual
