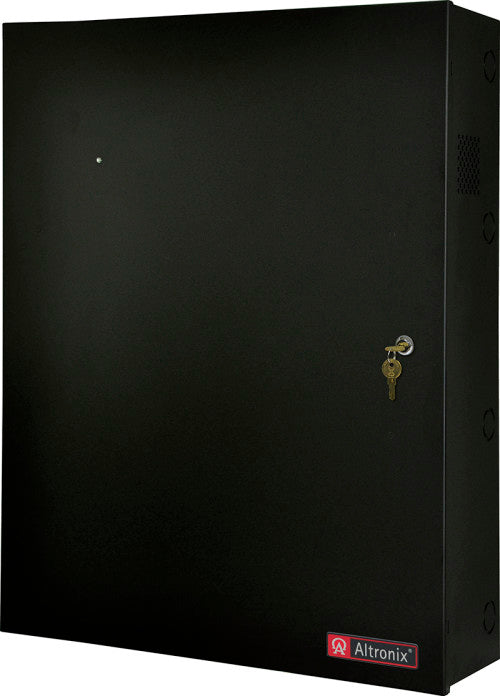

Altronix T3SK7516D | 16-Door House Access and Power Integration Kit - Trove3SH3 with AL1024ULXB2, AL1012ULXB, 2-ACM8CB, PD8ULCB, RSB2

Altronix - T3SK7516D - Features and Specifications

• Power Supply/Charger - 1
• INPUT
• Voltage: 115VAC, 60Hz, 4.2A max.
• Main Fuse: 5A / 250V.
• OUTPUT
• Voltage: 24VDC.
• Current: 10A @ 24VDC continuous max.
• Other: Overvoltage protection. Filtered and regulated.
• Power Supply/Charger - 2
• INPUT
• Voltage: 115VAC, 60Hz, 2.6A max.
• Main Fuse: 5A / 250V.
• Both Power Supplies
• Battery Backup (not included)
• Capacity: 7AH /12VDC (4 within enclosure); 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• Supervision
• AC Failure: Form “C” contacts.
• Battery: Form “C” contacts.
• Indicators LED
• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.
• Two (2) ACM8CB Access Power Controllers
• INPUT
• Voltage: 24VDC from AL1024ULXB2.
• Main Fuse: 10A / 250V.
• OUTPUT
• Class 2 power-limited auto-resettable outputs.
• Voltage: 24VDC.
• Eight (8) 24VDC independently controlled PTC outputs:
• a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A.
• b) Any combination of the above.
• Output PTCs: 2.5A.
• Indicators (LED)
• Red LEDs: Outputs are triggered (relays energized).
• Green LED: FACP disconnect is triggered.
• PD8ULCB Power Distribution Module
• INPUT
• Voltage: 12VDC from AL1012ULXB.
• Outputs
• Voltage: 12VDC.
• PTCs: 2.5A.
• Indicators LED
• Green LED: DC Output.
