Description
Description

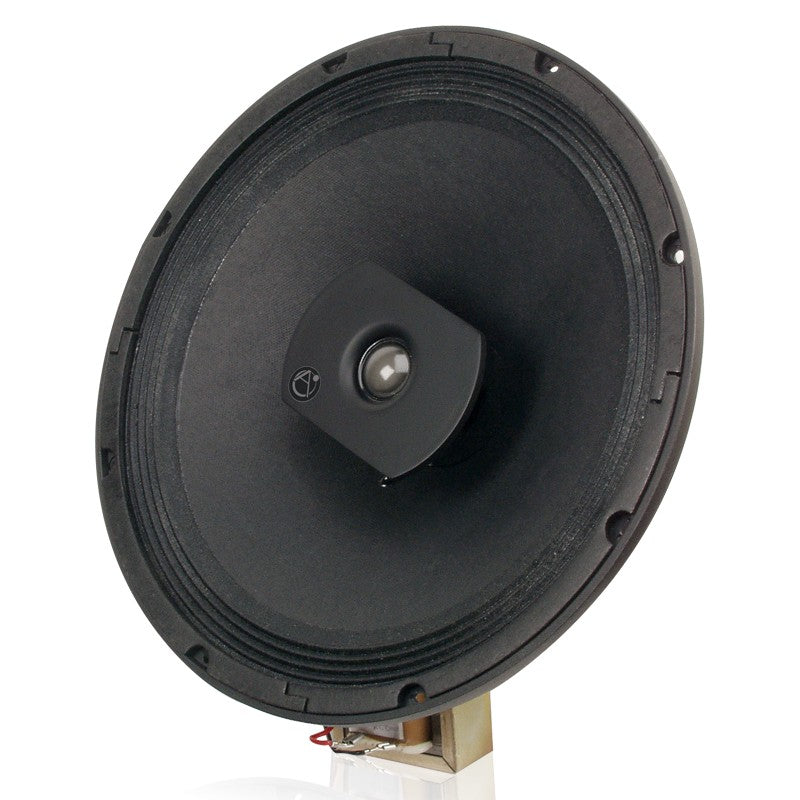

AtlasIED Model C12BT60 is a professional quality coaxial speaker for use where full range music and voice reproduction are desired. Model C12BT60 combines a 12" diameter low frequency reproducer and a 1" diameter high frequency, post-mounted reproducer. The unit features a curvelinear, treated paper cone for lower harmonic distortion and a built-in crossover network for determining proper frequency selection between the two reproducers.
The competitively priced unit assures smooth frequency response in a high power handling mode. For best results, enclosures with a volume of 2 cu. ft. or greater (including AtlasIED Models Q4412 or Q4612) are recommended. A factory installed 60 watt line transformer is included with the package, however, the transformer can be easily bypassed for 8 ohm applications.
Atlas Sound - C12BT60 - Features
- Coaxial Loudspeaker with 12" Diameter Low Frequency and 1" Diameter High Frequency Reproducer
- Includes Factory-Installed Line-Matching Transformer
- Mounts a Wide Selection of Atlas Sound Q Series Enclosures and Standard Baffles
- Professional Quality Sound Reproduction at a Competitive Price
Specifications
Specifications
Atlas Sound - C12BT60 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - C12BT60 - Specifications
| Frequency Response | 33Hz - 21kHz |
|---|---|
| Sensitivity | 95dB (at 1W/1m) |
| Power Taps | 7.5, 15, 30, 60 |
| Speaker Type | Full Range Coaxial |
| Dispersion | 90° |
| Depth | 4 3/16" (10.63625 cm) |
| Shipping Weight | 5.00 lbs (2.27 kgs) |
| UNSPSC Code | 52161600 |
Atlas Sound - C12BT60 - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
Documents and Downloads
Documents and Downloads
