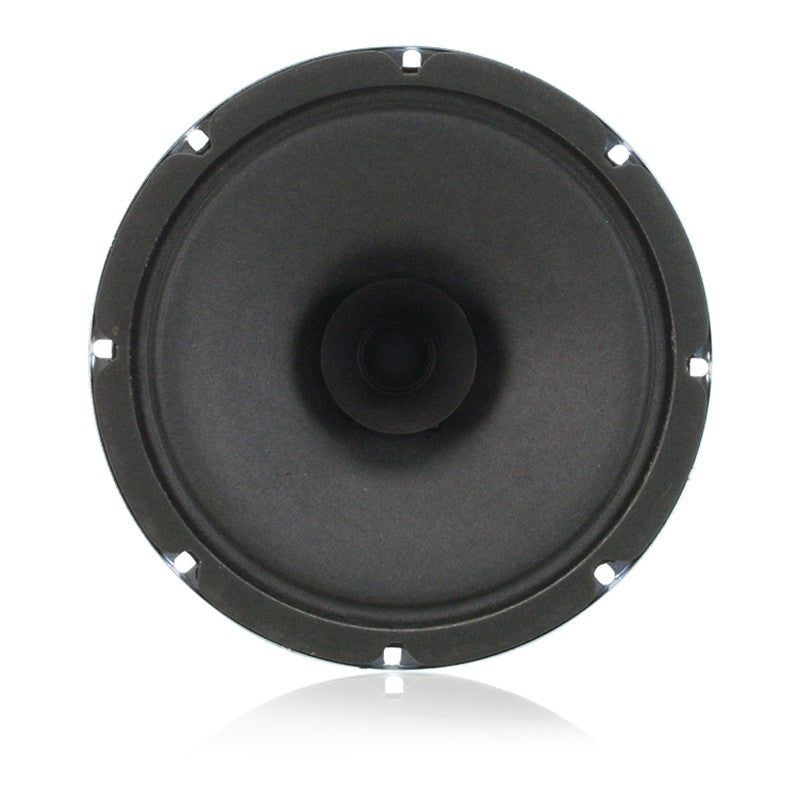

Atlas Sound C5AT72 | 8 Inch Dual Cone In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 5oz Magnet
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound C5AT72 | 8 Inch Dual Cone In-Ceiling Speaker with 4-Wat...
Description
Description
Model C5AT72 is a reliable, economically priced 15-watt speaker with a pre-mounted 25/70.7V 4W transformer that offers many features found in speakers costing considerably more.
It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1" diameter copper voice coil with a black-anodized aluminum former for better power dissipation.
Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°.
It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.
Atlas Sound - C5AT72 - Features
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Industry Standard Value Loudspeaker with Proven Performance
- Mounts a Wide Selection of Atlas Sound Baffles
- With Factory-Installed LT-72 Line-Matching Transformer
- UL Certified, Safety Listed to UL1480A and UL2043
Specifications
Specifications
Atlas Sound - C5AT72 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - C5AT72 - Specifications
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 96dB Peak, 93dB Average |
| Frequency Response | 100Hz - 10kHz |
| Dispersion | 105° |
| Power Taps | .5, 1, 2 & 4 Watts |
| Depth | 2 5/8" (6.6675 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 2.17 lbs (0.98 kgs) |
| Safety Listed | 1480 |
| UNSPSC Code | 52161600 |
Atlas Sound - C5AT72 - Videos
| Welcome to AtlasIED | Click to View |
|---|---|
| AtlasIED - With Over 2,000 Products... We Have All the Essentials You Need | Click to View |
| AtlasIED's Official Youtube Channel | Click to View |
