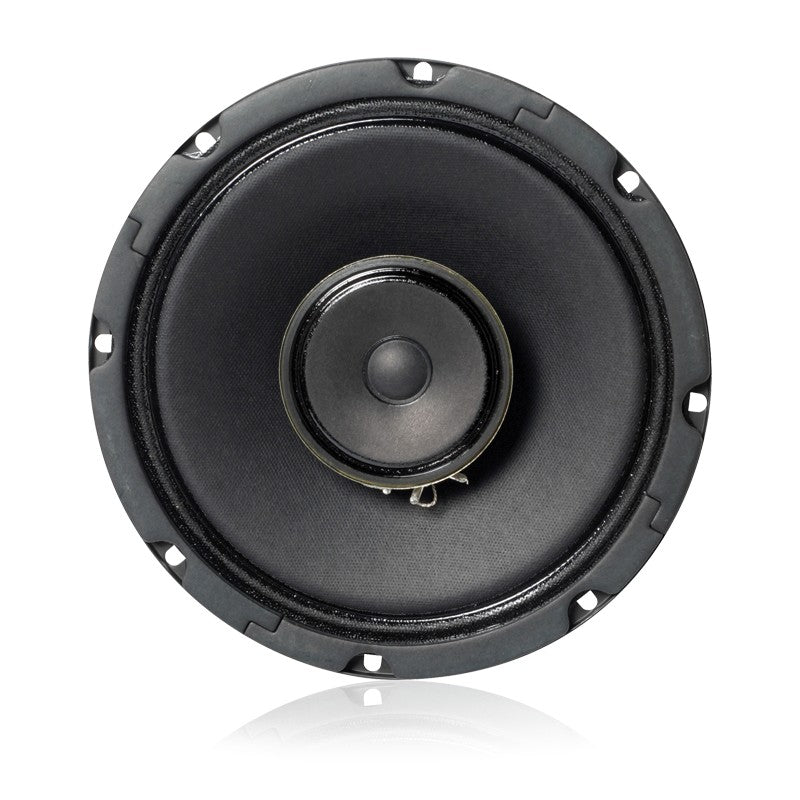

Atlas Sound C803AT167 | 8 Inch In-Ceiling Coaxial Speaker with 16-Watt 70V Transformer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound C803AT167 | 8 Inch In-Ceiling Coaxial Speaker with 16-W...
Description
Description
Model C803AT167, A high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer
Model C803AT167 utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 40Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).
Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.
Atlas Sound - C803AT167 - Features
- Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
- Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
Specifications
Specifications
Atlas Sound - C803AT167 - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - C803AT167 - Specifications
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 98dB (peak), 95dB (avg) |
| Frequency Response | 40Hz - 15kHz |
| Power Taps | 4, 8 & 16 Watts |
| Dispersion | 120° |
| Depth | 5 1/8" (13.0302 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 4.75 lbs (2.15 kgs) |
| Safety Listed | 1480 |
| UNSPSC Code | 52161533 |
