Atlas Sound C10A | 8 Inch Dual Cone 25-Watt, 8 Ohm In-Ceiling Speaker
Description
Description

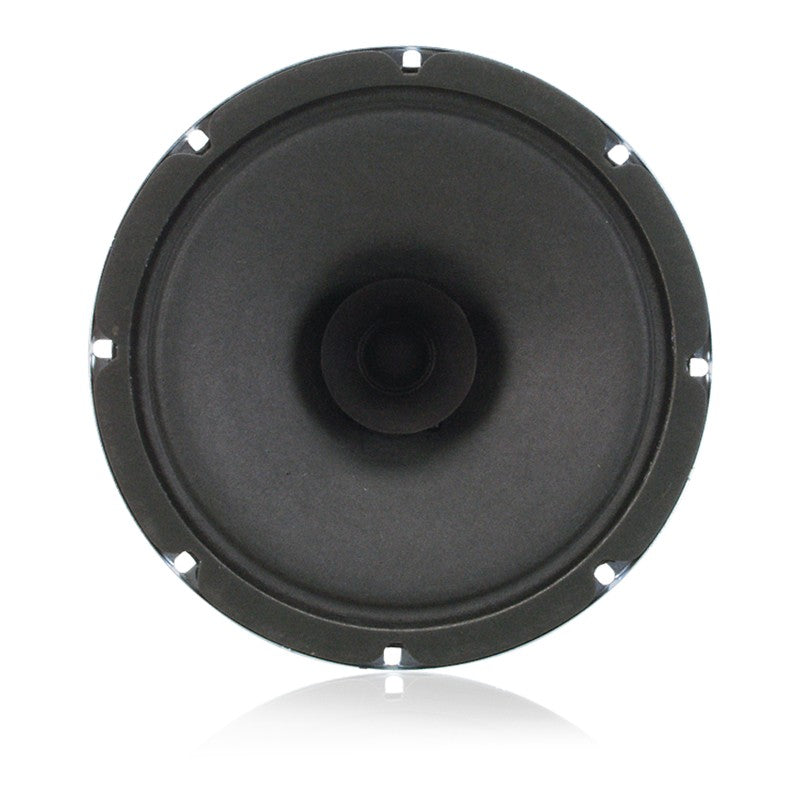

Model C10A is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet. It includes a curvelinear, treatedpaper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a blackanodized aluminum former for better power dissipation.
Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements. To ensure reliability and performance integrity, 100% of all C10A speakers are TEF-tested at the factory. AtlasIED operates a well-equipped, certified research laboratory which contains a fully anechoic chamber complete with analog Bruel & Kjaer measurement equipment and the TEF 20® audio analyzer.
Atlas Sound - C10A - Features
- Acoustically Proven, General Purpose 25-Watt Loudspeaker
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Mounts a Wide Selection of Atlas Sound Baffles
- Offers U.S.- Made Quality at a Realistic Price
- UL Certified, Safety Listed to UL1480A and UL2043
Specifications
Specifications
Atlas Sound - C10A - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - C10A - Specifications
| Speaker Type | Treated Paper |
|---|---|
| Sensitivity | 97dB Peak, 94dB Average |
| Frequency Response | 45Hz - 19kHz Nominal |
| Power Taps | 8 Ohms |
| Dispersion | 105° |
| Depth | 2 7/8" (7.3025 cm) |
| Diameter | 8" (20.32 cm) |
| Shipping Weight | 3.00 lbs (1.36 kgs) |
| UNSPSC Code | 52161600 |
