Atlas Sound PD-5VT | Compression Driver for Large Format Horn Speakers with 40-Watt 70V Transformer
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound PD-5VT | Compression Driver for Large Format Horn Speak...
Description
Description

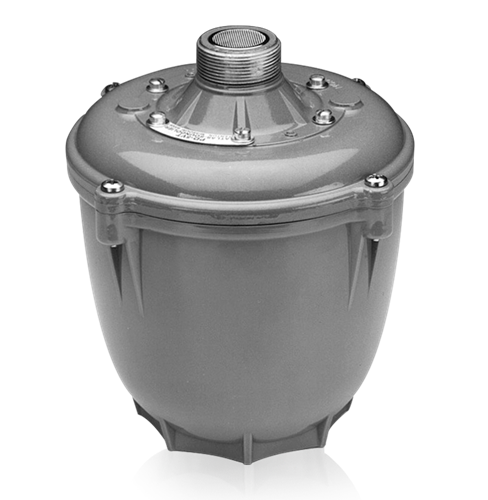

Model PD-5VT is a 40-watt driver with 2" voice coil. The unit is equipped with a ceramic magnet and includes a built-in, varnish-impregnated, tropic-sealed, multi-tap 70.7 volt line-matching transformer, (also adaptable to 25 volt audio system operation) which offers a selection of terminals for matching to the appropriate impedance and power taps. The PD-5VT has a plane wave frequency response of 190Hz - 4.2kHz.
This durable compression driver mounts easily to large format horns that terminate in the standard 1 3/8"-18 male coupling thread. Model PD-5VT is equipped with corrosion-resistant, screwtype, wiring terminals which are protected by a transparent impact-resistant plastic cover. The protective cover also provides strain relief for interconnecting cable.
Units are finished in grey, baked epoxy.
Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.
Atlas Sound - PD-5VT - Features
- 40-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Powerful Driver Mounts to Large Format Horns to Deliver Outstanding Sound Reproduction
Specifications
Specifications
Atlas Sound - PD-5VT - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Audio Equipment Accessories
- Speakers
- Speaker Components
- Speaker Drivers
Atlas Sound - PD-5VT - Specifications
| Frequency Response | 190Hz - 4.2kHz |
|---|---|
| Sensitivity | 111.2 (avg) 190 - 4,200 Hz |
| Power Taps | 2.5, 5, 10, 10, 20, 40W @ 70.7V |
| Height | 6 7/8" (17.46 cm) |
| Width | 6 3/8" (16.19 cm) |
| Shipping Weight | 7.00 lbs (3.18 kgs) |
| UNSPSC Code | 52161600 |
