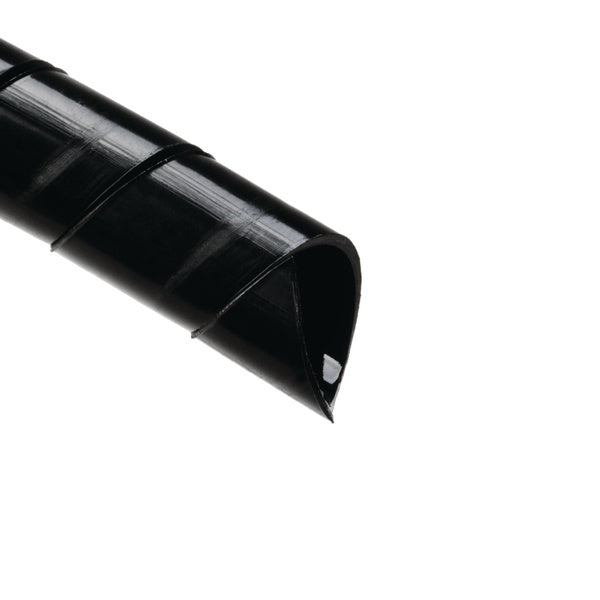

HellermannTyton 161-05088 | Spiralwrap Protective Sheathing, 0.88" Diameter, Polyamide, Black, 500Ft/Roll
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 161-05088 | Spiralwrap Protective Sheathing, 0.88&q...
Description
Description

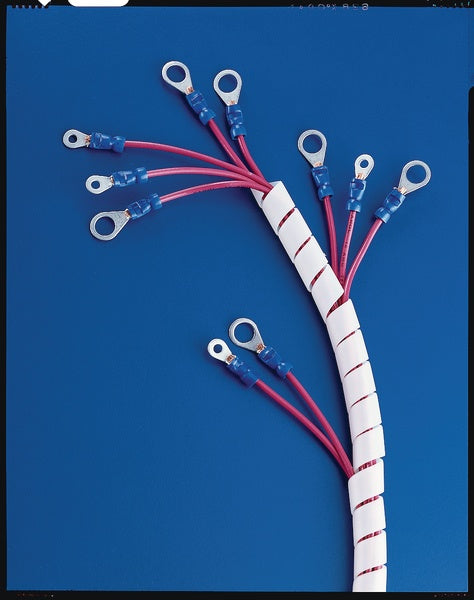

HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize.
HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 161-05088 - Features
- Sheathing allows flexible routing and lead-out of cables
- The inner edges are beveled preventing damage to cables
- Sheathing is reusable and resistant to most chemicals
- Spiralwrap is U.L. Recognized
- Mount provides low insertion and high extraction forces which makes for a strong and easy installation.
- Tie utilizes a strong hinge between the stud mount and strap head to provide superior holding ability.
- Clamping rails increase grip on round bundles.
- Thinner strap provides increased flexibility for improved ergonomics.
Specifications
Specifications
HellermannTyton - 161-05088 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Spiralwrap
- Spiralwrap - General Purpose
HellermannTyton - 161-05088 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 5.00 Inch |
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Sleeving | No |
| Spiral Wrap | Yes |
| Ul | Yes |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 161-05088 - Base Data
| Article Number | 161-05088 |
|---|---|
| Type | 4.5N0H |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Spiralwrap Protective Sheathing, 0.88" Diameter, Polyamide, Black, 500ft/roll |
| Global Part Name | 4.5N0H-PA6-BK |

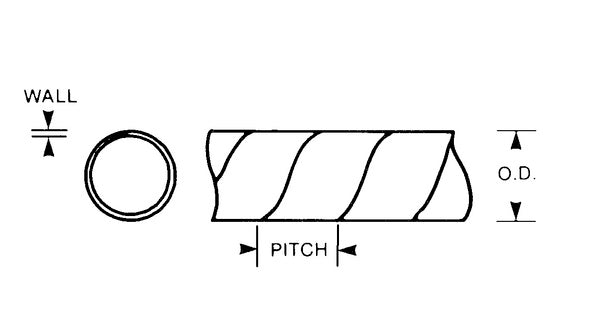

HellermannTyton - 161-05088 - Product Dimensions
| Length L (Imperial) | 500 |
|---|---|
| Length L (Metric) | 152.4 |
| Variant | Spiral Binding |
| Bundle Diameter Min (Imperial) | 0.5 |
| Bundle Diameter Min (Metric) | 12.7 |
| Bundle Diameter Max (Imperial) | 5 |
| Bundle Diameter Max (Metric) | 127 |
| Diameter D (Imperial) | 0.75 |
| Diameter D (Metric) | 19.05 |
| Nominal Diameter (Imperial) | 0.88 |
| Nominal Diameter (Metric) | 22.23 |
| Wall Thickness WT (Imperial) | 0.032 |
| Wall Thickness WT (Metric) | 0.81 |
HellermannTyton - 161-05088 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 152.4 |
| Customs Number | 3.93E+09 |
HellermannTyton - 161-05088 - Materials & Specifications
| Material | Polyamide 6 (PA6) |
|---|---|
| Material Shortcut | PA6 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +250°F (-40°C to +121°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
