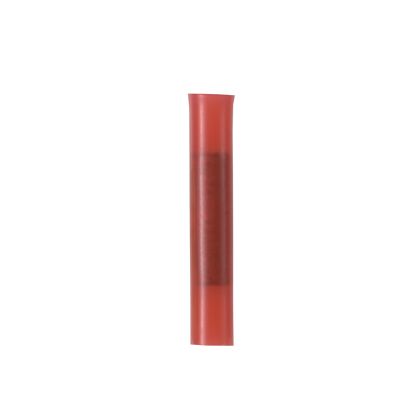

Panduit BSN18-C | Pan-Term Butt Splice, Red, Nylon, 18-22 AWG, PK100
Description
Description
Our nylon-insulated butt splice creates secure, low-profile wire connections for quick repairs and extensions in tight spaces.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Pan-Term Butt Splice, Loose Piece, Series: BSN, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.15 in Length, Brazed Seam/Standard Barrel, 0.13 in ID x 0.2 in OD Barrel, 600 VAC, 9/32 in L Wire Strip, 0.115 in Dia Maximum Nylon Insulation, 221 deg F, Copper, Red, TiN Coated
Panduit - BSN18-C - Features
- Designed to splice two solid or stranded wires together to repair or lengthen wires
- Butted configuration provides low profile for limited space applications
- Internal wire stop assures proper length of insertion into terminal barrel
Specifications
Specifications
Panduit - BSN18-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BSN18-C |
| Product Type | Butt Splice |
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Conductor Size (AWG) | 22-18 |
| Copper Code Conductor Size (AWG) | 22-18 |
| Maximum Copper Conductor Size (AWG SOL) | 18 |
| Maximum Copper Conductor Size (AWG STR) | 18 |
| Minimum Copper Conductor Size (AWG SOL) | 22 |
| Minimum Copper Conductor Size (AWG STR) | 22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Insulation Material | Nylon |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Standards Met | UL 486C, CSA C22.2 No.65 |
| UL Temperature Rating (°C) | 150 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 150 |
| UPC | 07498383000 |
Panduit - BSN18-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - BSN18-C - Videos
| Panduit BSN18-C Video 1 | Click to View |
|---|---|
| Panduit BSN18-C Video 2 | Click to View |
