Brand: Panduit
|
SKU:
10044936

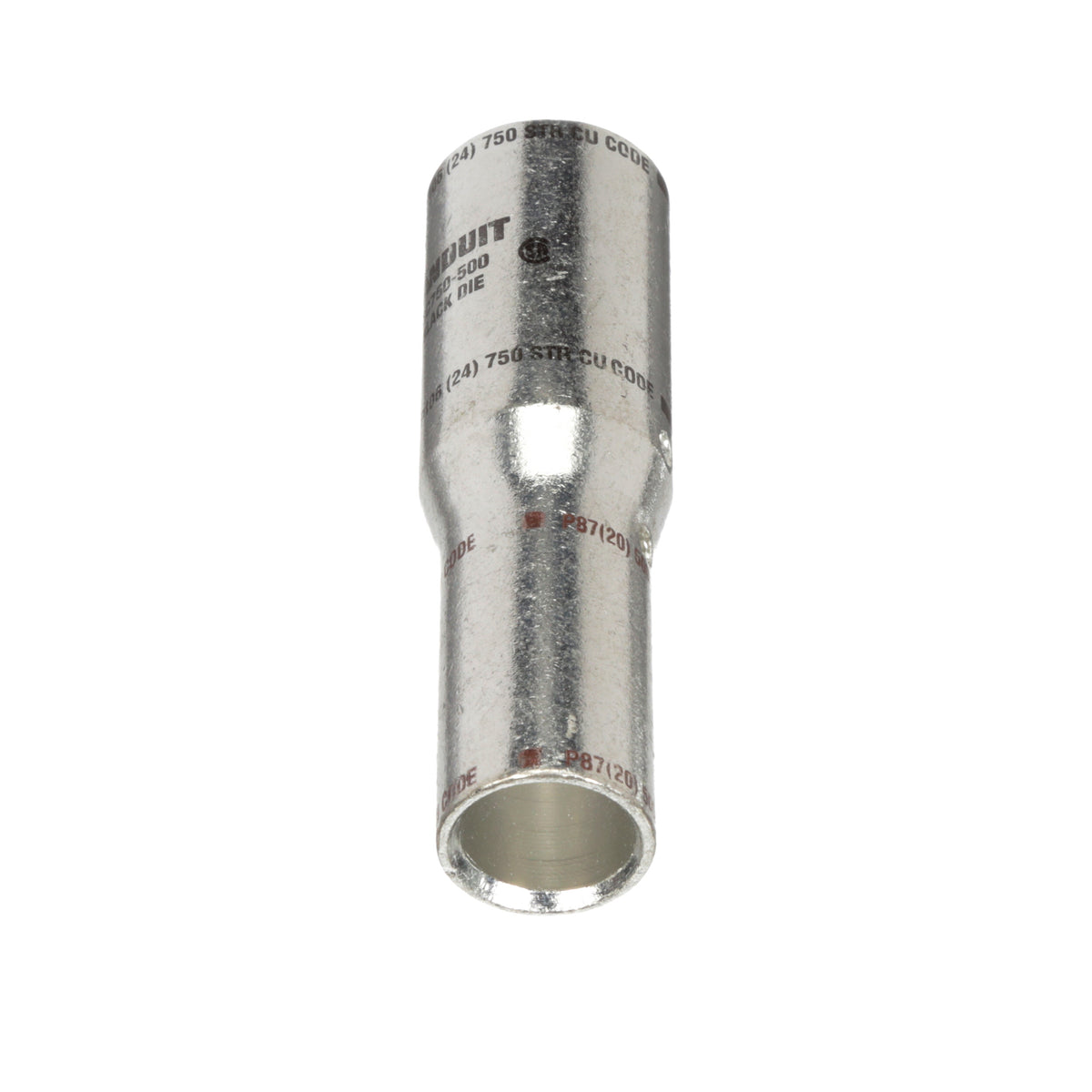

Panduit RSC750-500-6 | Pan-Lug Compression In-Line Reducing Splice
Regular price
$46.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RSC750-500-6 | Pan-Lug Compression In-Line Reducing Splice
Regular price
$46.57
Unit price
Description
Description
Panduit RSC750-500-6 | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice, 750 - 500 kcmil code conductor.
Specifications
Specifications
Panduit - RSC750-500-6 - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (kcmil) | 750 |
| Minimum Copper Conductor Size (kcmil) | 500 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 2.06 |
| Barrel Length (mm) | 52.3 |
| Overall Length (In.) | 4.45 |
| Overall Length (mm) | 113 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Black |
| Burndy Die Index Number | 24, 20 |
| Panduit Die Index Number | P106, P87 |
| T & B Die Index Number | 106, 87 |
| Wire Strip Length (In.) | 2 |
| Wire Strip Length (mm) | 50.8 |
| UNSPSC Code | 39121400 |
Panduit - RSC750-500-6 - Package Includes
| UPC | 07498344447 |
|---|---|
| Std. Pkg. Qty. | 6 |
| Std. Pkg. Volume (cf) | 0.0641 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
