Brand: Panduit | SKU: 10044938

Panduit RSCK750-4/0-1 | Pan-Lug Compression In-Line Reducing Splice

$6,250.10

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit RSCK750-4/0-1 | Pan-Lug Compression In-Line Reducing Splice

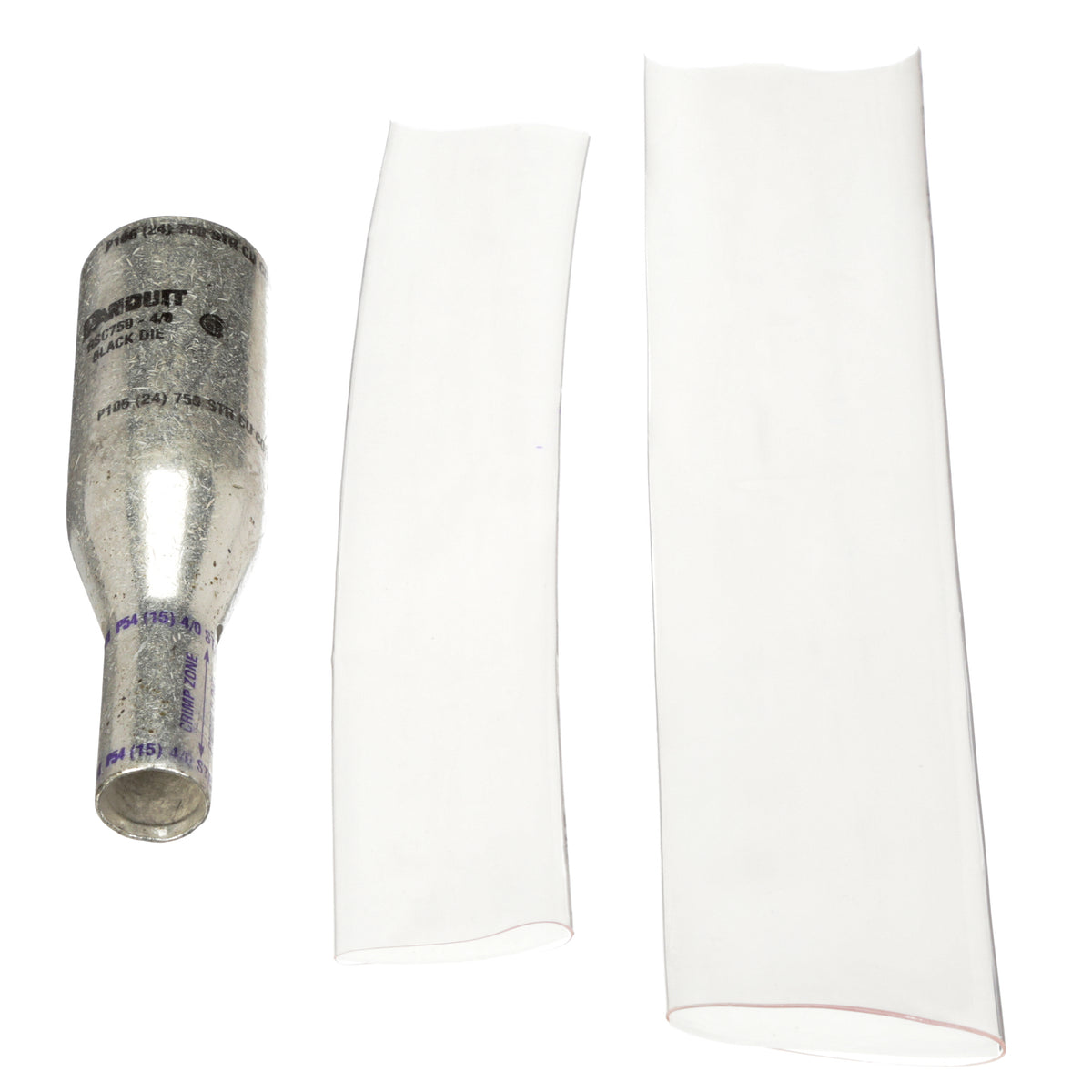

In-line reducing splice kit, 750 kcmil - 4/0 AWG code conductor. HSTTPN150-925-X crystal clear PVC heat shrink 1 1/2" dia. x 9.250" long. HSTTPN100-775-Q crystal clear PVC heat shrink 1" dia. x 7.750" long.

Specifications

Panduit - RSCK750-4/0-1 - Specifications

Product Type	Compression In-Line Reducing Splice
Base Material	Copper
Barrel Type	Standard
Finish/Coating	Tin-Plated
Maximum Copper Conductor Size (kcmil)	750
Minimum Copper Conductor Size (AWG STR)	4/0
Insulation Material	Non-Insulated
Barrel Length (In.)	2.06
Barrel Length (mm)	52.3
Overall Length (In.)	4.66
Overall Length (mm)	118.4
Standards Met	UL Listed and CSA Certified to 35 kV and temperature rated to 90°C
UL Temperature Rating (°C)	90
CSA Temperature Rating (°C)	90
Maximum Voltage (kV)	35
Color Code	Black
Burndy Die Index Number	24, 15
Panduit Die Index Number	P106, P54
T & B Die Index Number	106, 54
Wire Strip Length (In.)	2
Wire Strip Length (mm)	50.8
Barrel	Long
Gauge	4/0 Awg
UNSPSC Code	39121400

Panduit - RSCK750-4/0-1 - Package Includes

UPC	07498342054
Std. Pkg. Qty.	1
Std. Pkg. Volume (cf)	0.0417
Std. Ctn. Qty.	0
Std. Ctn. Volume (cf)	0.0000
