Panduit SCL400-6 | Compression Connectors - Splices | UPC - 0749839...
Description
Description
Panduit Pan-Term Splices are designed and manufactured for fast assembly, and long reliable performance. As the demand for splices increases, it becomes essential to provide a complete system for termination products. We provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

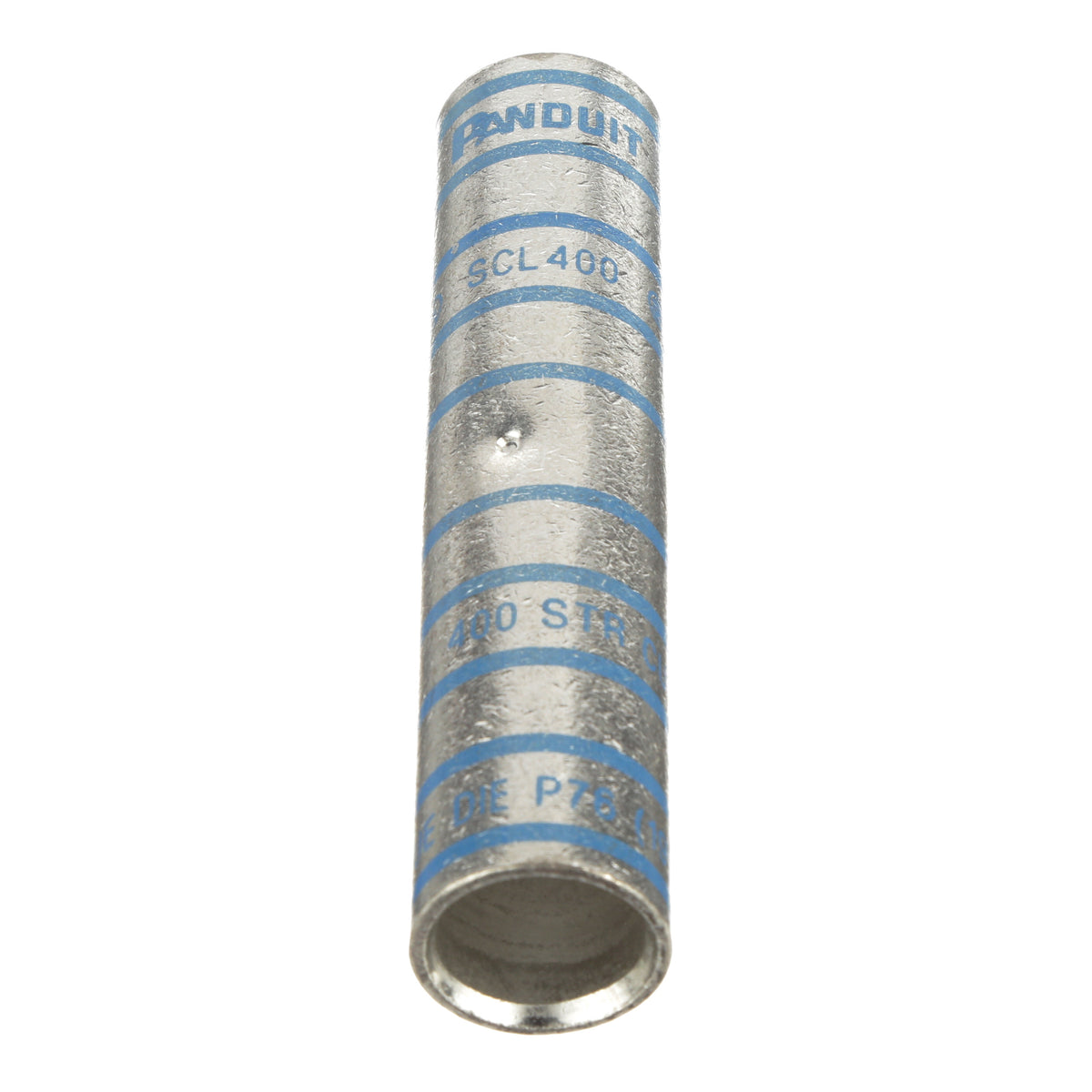

Panduit Pan-Lug Pan-Term Butt Splice, Compression, Series: SCL, Stranded Copper Conductor, 400 kcmil Conductor, 4.37 in Length, Long Seamless Barrel, 0.762 in ID x 0.95 in OD Barrel, 35 kV, Specifications: 2-1/8 in L Wire Strip, 90 deg C, Copper, Blue, Electro Plated Tin
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
- Long barrel maximizes the number of crimps and provides premium wire pull out strength and electrical performance
- Premium pull out strength
Panduit SCL400-6 | Compression Connectors - Splices | UPC - 07498390460 Key Specs
| Product Type | Compression Connectors - Splices |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (kcmil) | 400 |
| Copper Conductor Size (AWG) | 7/0 |
| Copper Conductor Size (kcmil) | 424.2 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL Listed for Power and Grounding Applications in the U.S. and Canada; Meets UL467 Requirements for Grounding |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Burndy Die Index Number | 19 |
| Panduit Die Index Number | P76 |
| Overall Length (In.) | 4.37 |
| Overall Length (mm) | 111 |
| Wire Strip Length (In.) | 2 1/8 |
| Wire Strip Length (mm) | 54 |
| UL Temperature Rating (°C) | 90 |
| UL Temperature Rating (°F) | 194 |
| CSA Temperature Rating (°C) | 90 |
Panduit SCL400-6 | Compression Connectors - Splices | UPC - 07498390460 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - SCL8-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Part Drawings | SCL Long Barrel Splices #300-1000 kcmil | Download and View |
Panduit SCL400-6 | Compression Connectors - Splices | UPC - 07498390460 Environmental Information
| Panduit's RoHS Statement | Download and View |
