Brand: CommScope
|
SKU:
528736
CommScope CC8312-000 | OCC1P Wideband Splitter, planar, singlemode, 1 x 32, symmetrical split ratio, 0, 250 mm cable, field installable
Regular price
$88.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope CC8312-000 | OCC1P Wideband Splitter, planar, singlemode,...
Regular price
$88.24
Unit price
Description
Description

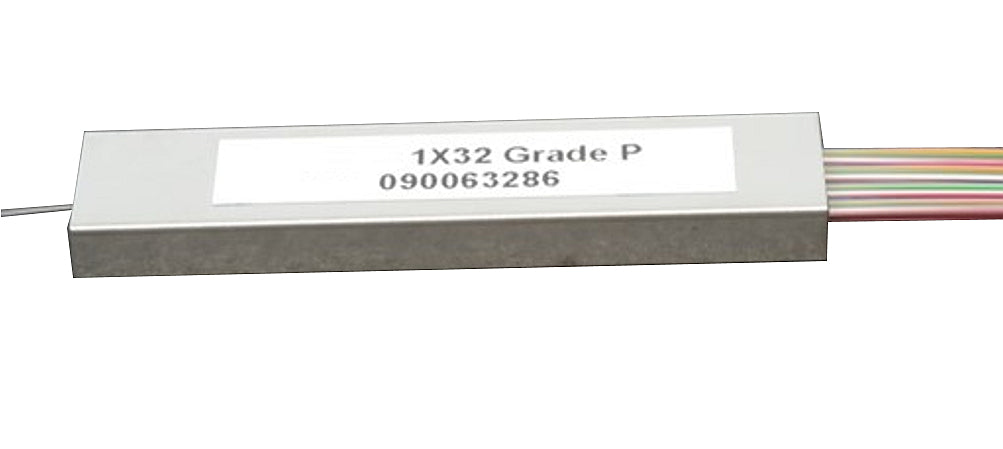

CommScope CC8312-000 | OCC1P Wideband Splitter, planar, singlemode, 1 x 32, symmetrical split ratio, 0, 250 mm cable, field installable
Specifications
Specifications
CommScope - CC8312-000 - Product Categories
- Splitters, Combiners & Multiplexers
- Optical Passives
CommScope - CC8312-000 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | CC8312-000 | OCC1P-13200-NNNQNQF |
| Item Description | OCC1P Wideband Splitter, planar, singlemode, 1 x 32, symmetrical split ratio, 0,250 mm cable, field installable |
| Device Type | Component, rectangular |
| Functionality | Splitting |
| Technology Type | Planar lightwave circuit (PLC) |
| Application | For use in FOSC closures |
| Circuits, quantity | 1 |
| Distribution Type | 1 x 32 splitter |
| Interface, Input | Stub tail |
| Interface, Output | Stub tail |
| Split Ratio | Symmetrical |
| Splitter, quantity | 1 |
CommScope - CC8312-000 - Product Classification
| Regional Availability | EMEA | Latin America | North America |
|---|---|
| Product Type | Splitter component |
| Product Series | OCC1P |
CommScope - CC8312-000 - Physical Specifications
| Dimensions | - |
|---|---|
| Pigtail Length, Input | 2.5 m | 8.202 ft |
| Pigtail Length, Output | 2.5 m | 8.202 ft |
| Pigtail Diameter, Input | 0.25 mm | 0.010 in |
| Pigtail Diameter, Output | 0.25 mm | 0.010 in |
| Environmental Specifications | - |
| Qualification Standards | Telcordia GR-1209-CORE | Telcordia GR-1221-CORE |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
