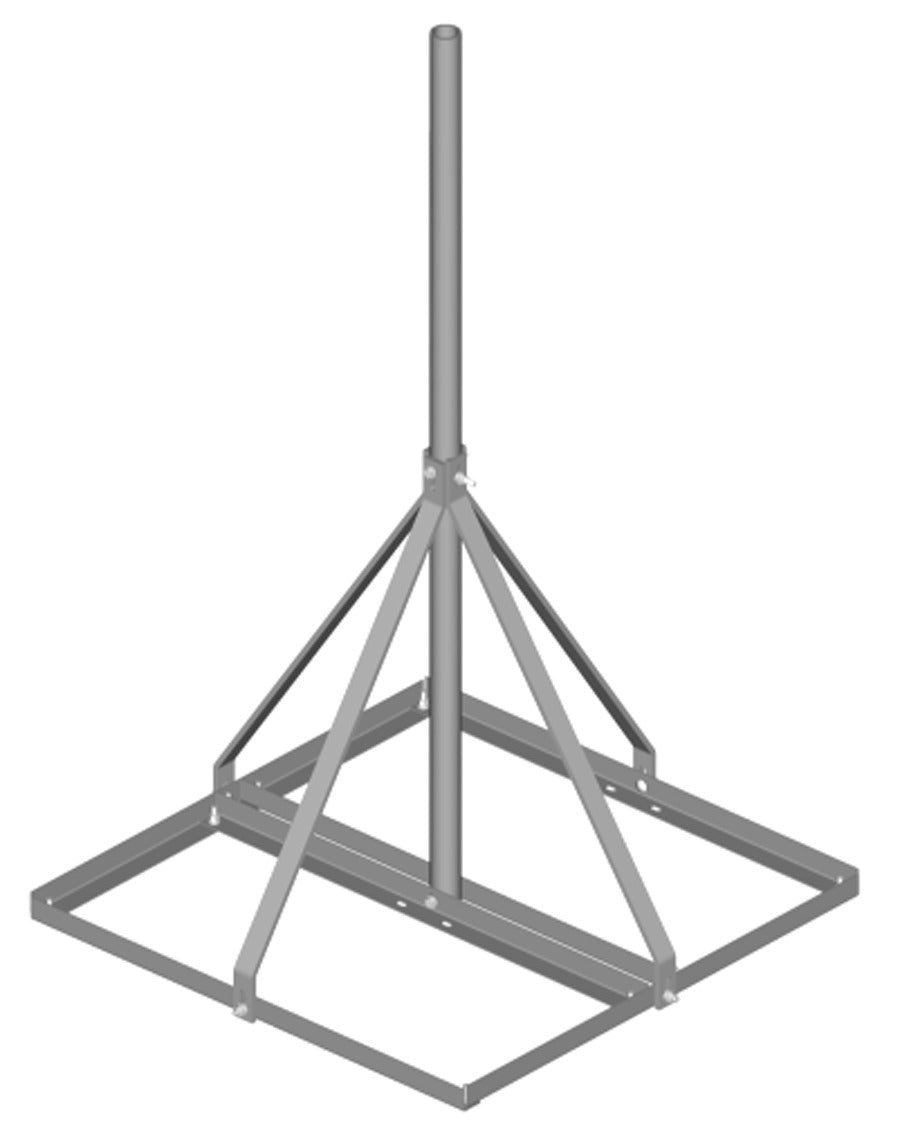

Commscope RM-SM190-60 | Non-Penetrating Roof Mount
Regular price
$453.06
Unit price
Brand: CommScope
|
SKU:
470409
Regular price
$453.06
Unit price
Description
Description
Commscope RM-SM190-60 | Non-Penetrating Roof Mount
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Tripod mount |
|---|
General Specifications
| Mounting | Non-penetrating |
|---|---|
| Pipe, quantity | 1 |
Dimensions
| Height | 1524 mm / 60 in |
|---|---|
| Width | 914.4 mm / 36 in |
| Length | 0.914 m / 3 ft |
| Pipe Length | 1524 mm / 60 in |
| Pipe Outer Diameter | 48.26 mm / 1.9 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
|---|
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts |
|---|
Packaging and Weights
| Included | Ballast tray / Mast / Supports |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 27.2 kg / 59.966 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
